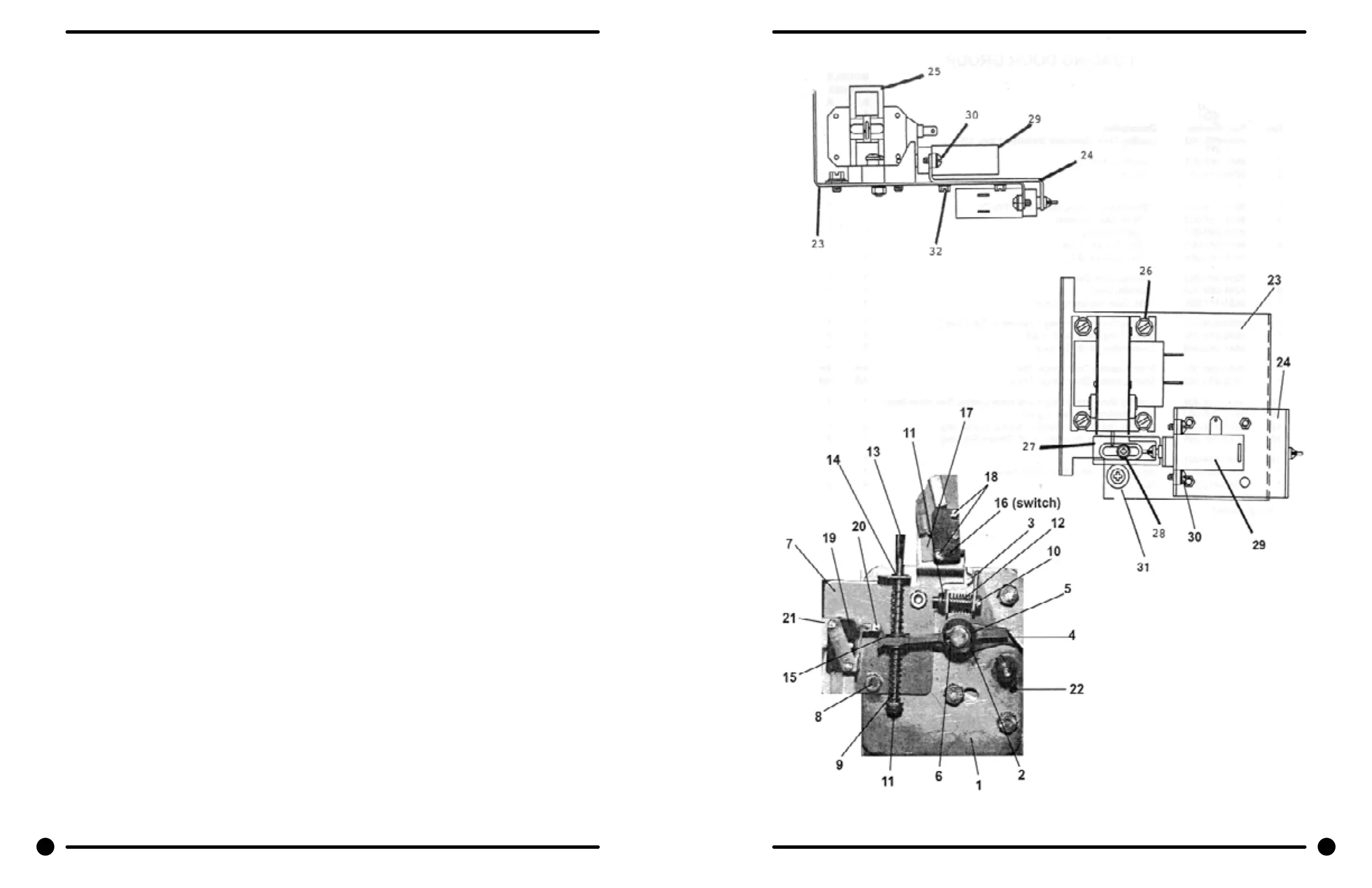

Door Latching & Solenoid Door Lock Assemblies by Part #
Key Part Number
* 9885-023-001
1 9982-284-001
2 8641-581-030
3 9008-005-001
4 9450-002-002
5 8641-569-003
6 9487-200-004
7 9029-035-001
8 8640-413-002
9 9534-364-001
10 9545-012-020
11 8640-413-004
12 9534-364-002
13 9451-193-001
14 9487-200-005
15 8641-581-031
16 9539-461-008
17 9550-169-003
18 9545-020-001
18 8640-401-001
19 9539-461-007
20 9008-006-002
21 9545-020-003
21 8640-401-001
22 9451-181-004
* 9552-037-001
* 9552-037-002
* 9545-018-014
* 8641-582-007
* 9922-011-001
23 9029-073-001
24 9985-169-001
25 9536-074-001
26 9545-008-001
27 9540-033-002
28 9545-061-001
28 8640-411-003
29 9586-001-001
30 9545-031-011
31 9538-157-004
31 9538-166-004
31 9545-010-001
31 8640-412-005
32 8640-411-002
* 8640-412-005
* 9497-225-006
Description Qty
LockAssy, Complete (includes #1 thru #22) 1
Plate Assy, Door Lock 1
Washer, Flat 1
Actuator, Latching Switch 1
Pawl, Locking 1
Washer, Spring 1
Ring, Ret Jning 1
Bracket; S0Wiitch 1
Nut, Hex 10-32 UNF 2
Spring, Actuating 2
Screw, Hx. 10-32 x 1 1
Nut, E.lastic Stop 10-32 2
Spring, Return 1
Pin, Guide 1
Ring, Retaining 1
Washer 2
Switch, Latching Sensing 1
Shield, Switch 3
Screw 4-40 x 5/8 2
Nut, Twin 1
Switch, Locking Sensing 2
Actuator, Switch 2
Screw 4-40 x 1 1/8 2
Nut, Twin 4-40 1
Pin, Dowel 1
Shim, Door Lock, Thin AR
Shim, Door Lock, Thick AR
Screw, Lock mtg 1/4 -20 x 3/4 3
Lockwasher 1/4 Ext tooth 3
Solenoid Ass'y, Door Locking (includes 23 thru 32) 1
Bracket, {Door Locking Solenoid) 1
BracketAss'y, Soienoid Slide 1
Solenoid 120V 60 hz 1
Screw, Solenoid Mtg 4
Stop, Door Lock Solenoid 1
Screw, Shoulder 1
Nut, Keps #6 1
Thermoactuator 120 V 2
Screw. #6 x5/16 4
Spacer, Plastic 1
Spacer, Metal 1
Screw, Cross Recessed 1
Nut, Keps #8 1
Nut, Keps#6 1
Nut, Sol.Brkt. to Control. Panel 3
Rod, Pull 1
78 79
Part # 8533-035-002 4/22 Part # 8533-035-002 4/22
