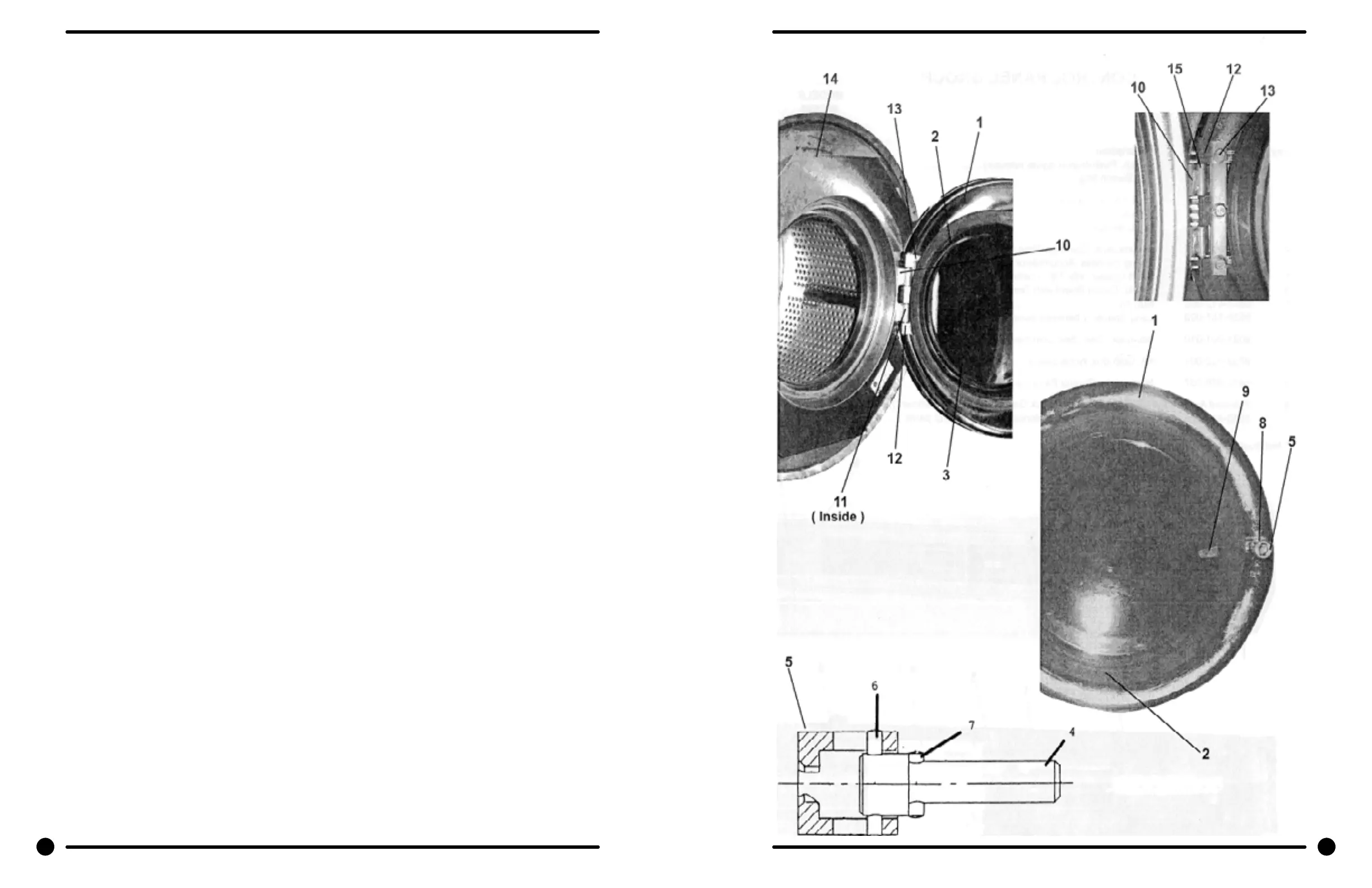

Loading Door Part # by Model
Key Part Number Description Qty
* 9960-259-002 Loading Door, Complete (includes 1 thru 10) 1
1 9487-265-001 Loading Door, Ring 1
2 9206-419-001 Gasket, Loading Door 1
3 9635-016-001 Window, Loading Door 1
* 9537-195-002 Shaft Assy, Locking (includes 4 thru 7) 1
4 9913-134-003 Shaft, Door Locking 1
5 9095-040-001 Cam, Locking 1
6 9451-181-005 Pin, Groove (1 1/4) 1
7 9451-181-004 Pin, Groove (3/4) 1
8 9534-360-002 Spring, Lock Cam 1
9 9244-080-003 Handle, Door 1
* 9451-181-006 Pin, Door Handle (Groove) 1
* 9545-014-009 Screw, Hinge Mtg 3
* 8641-582-009 Lockwasher 5/16 3
* 9552-036-001 Shim, Loading Door Hinge (Thin) AR
* 9552-036-002 Shim, Loading Door Hinge (Thick) AR
10 9955-029-002 Hinge Assy, Loading Door (Mounts to tub front) 1
11 9451-184-004 Pin, Loading Door Hinge (Fits inside loading door hinge) 1
12 9079-122-002 Clamp, Loading Door Hinge 1
13 9545-056-001 Screw, Loading Door Mtg 3
14 9487-254-001 Ring, Masking 1
15 8649-031-002 Ring, Snap Ext Retaining 1
* 8640-413-002 Nut 4
* 9059-063-002 Band, Edge Protector (Mounted to front panel) 1
*Not illustrated
