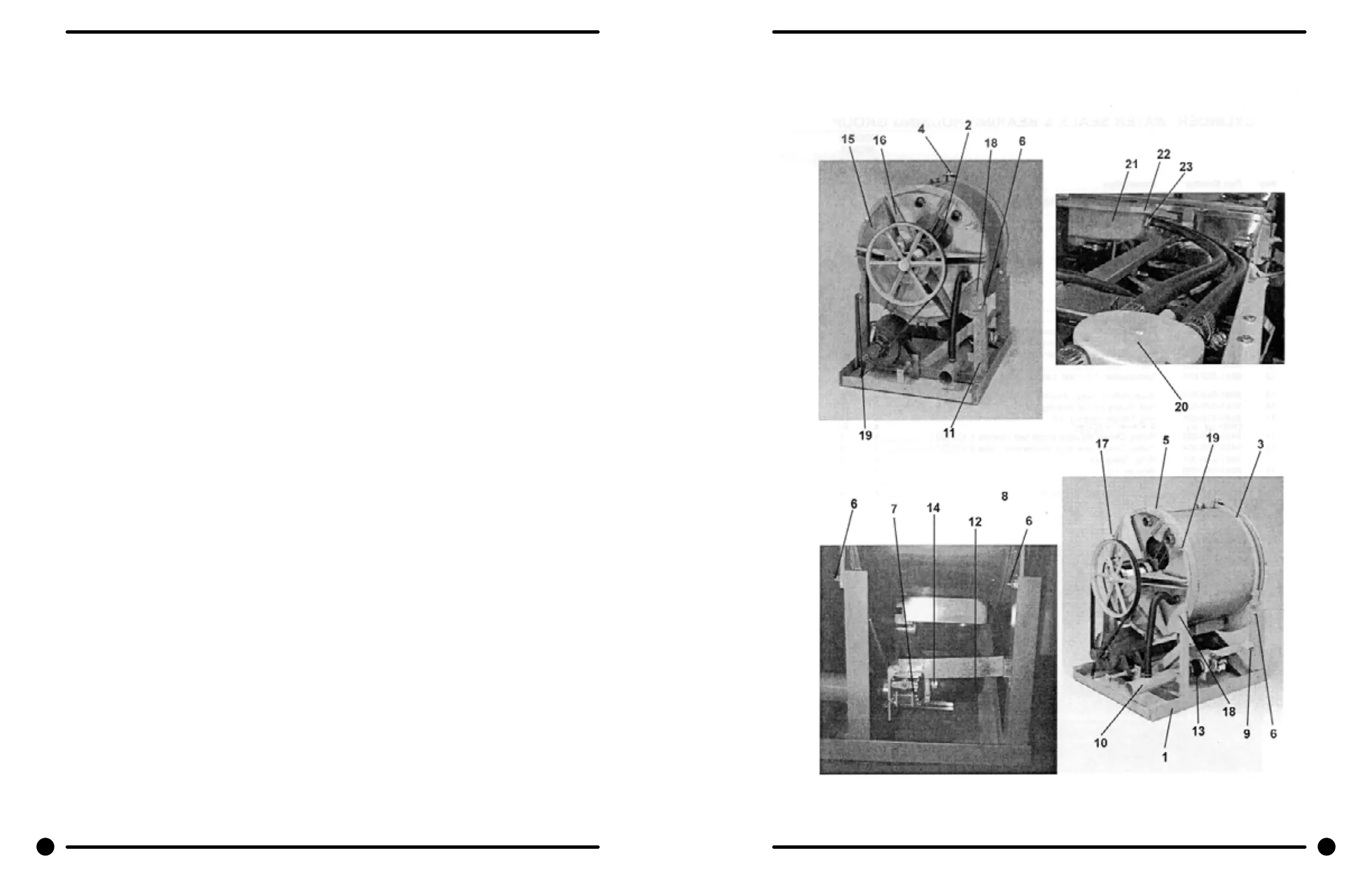

Chassis and Drain Part # by Model
Key Part Number Description
1 9945-087-002 Base Assy, Frame 1 1
2 9930-137-001 Tub Assy 1 1
2 9869-008-001 Tub & Cylinder Assy 1 1
2 9848-109-001 Cylinder Assembly only 1 1
3 9950-051-002 Ring Assy, Tub Mtg-Front 1 1
4 9545-017-003 Bolt, Top Front Ring (1/2 x 1 3/4 ) 1 1
4 8641-582-016 Lookwasher (1/2 ext tooth) 1 1
4 8640-417-002 Nut 1 1
5 9950-041-002 Ring Assy, Tub Mtg Rear 1 1
6 9545-011-009 Bolt, Front & Rear Rings to Base {1/2 x 1 1/4 ) 4 4
6 8641-582-016 Lockwasher ( 1/2 ext. tooth) 4 4
6 8640-417-002 Nut 4 4
7 9379-187-001 Valve, Drain 1 1
8 9029-056-001 Bracket, Drain Valve 1 1
* 9545-048-001 Screw, Valve to Bracket 1 1
* 8641-581-018 Washer 1 1
9 9545-030-002 Screw, Bracket to Base 2 2
10 9915-119-002 Tube Assy, Drain 1 1
11 9545-030-002 Screw, Tube Mtg 2 2
12 9242-456-004 Hose, Tub to Drain Valve 1 1
13 9242-457-001 Hose; Drain Valve to Tube 1 1
14 8654-117-014 Clamp, Hose 4 4
* 9552-038-003 Shim, Support Assembly AR AR
* 9242-458-002 Hose, Vacuum Brkr. to Tub 1 1
20 9610-001-001 Vacuum Breaker 1 1
* 9029-065-001 Bracket, Vacuum Breaker 1 1
* 9545-008-026 Screw 4 4
21 9732-108-002 Dispenser Kit 1 1
22 9206-416-001 Gasket, Dispenser 1 1
* 9242-450-002 Hose, Dispenser to .Tub 1 1
23 8654-117-008 Clamp, Dispenser Hose 2 2
15 9732-137-002 Back Assy, Tub 1 1
16 9991-048-002 Support Arrn Assy., Bearing Hsg 6 6
17 9545-029-003 Bolt, ( 3/8 x 1.1/2) 10 10
18 9545-029-006 Bolt, ( 3/8 x 1 3/4 ) 2 2
19 8640-415-004 Nut, Flange Lock 12 12
MODELS
WCN25
A A
A B
84 85
Part # 8533-035-002 4/22 Part # 8533-035-002 4/22
85
Cylinder, Seals,
& Bearings
Water Inlet &
Rear Channel
