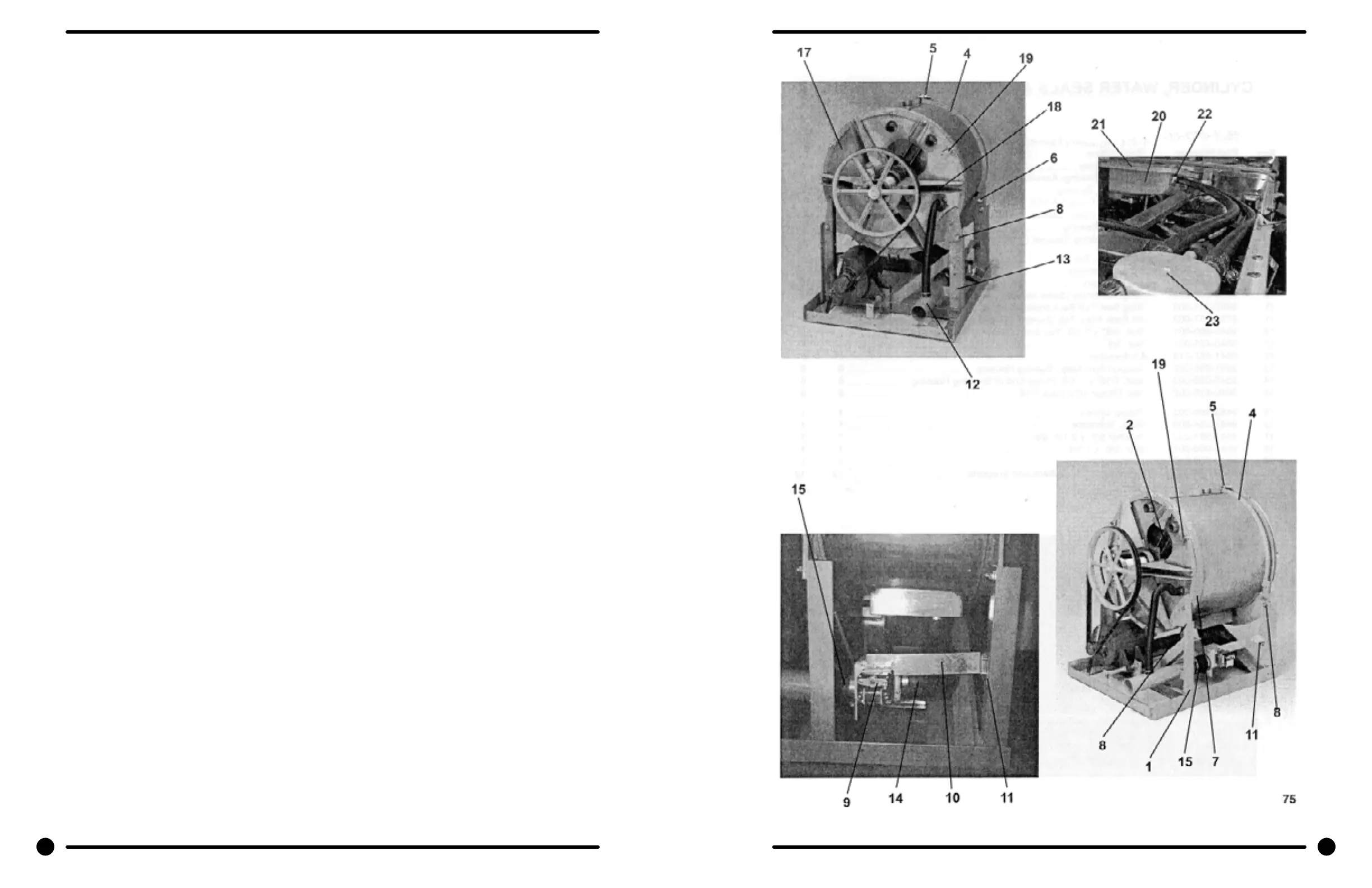

Chassis and Drain Part # by Model
Key Part Number Description
1 9945-097-002 Base Assy, Frame 1 1
2 9930-136-001 Tub Assy 1 1
3 9967-009-002 Tub Cradle Assy 1 1
4 9950-050-002 Ring Assy, Tub Mtg-Front 2 2
5 9545-060-003 Bolt, Tub Front Ring 5/8x3 1 1
5 8640-425-001 Nut 1 1
5 8641-582-018 Lockwasher 1 1
6 9545-060-002 Bolt 5/8x1/2 (Front ring to cradle; double nuts used) 2 2
6 8640-425-001 Nut, Hex 4 4
7 9950-041-004 Ring Assy, Tub Mtg-Rear 1 1
8 9545-060-001 Bolt 5/8x1/2 (Rings to Base; front and rear) 4 4
8 8641-582-018 Lockwasher 4 4
8 8640-425-001 Nut, Hex 4 4
9 9379-187-001 Valve, Drain 1 1
10 9029-052-001 Bracket, Drain Valve 1 1
* 9545-048-001 Screw, Valve to Bracket 1 1
* 8641-581-018 Washer 1 1
11 9545-030-002 Screw, Bracket to Base 2 2
12 9915-118-002 Tube Assy, Drain 1 1
13 9545-030-002 Screw, Tube Mtg 2 2
14 9242-456-001 Hose, Tub to Drain Valve 1 1
15 9242-457-001 Hose, Drain Valve to Tube 1 1
16 8654-117-014 Clamp, Hose 4 4
* 9552-038-001 Shim, Support Assembly (Thin) AR AR
* 9242-458-002 Hose, Vacuum Breaker to Tub 1 1
17 9732-137-003 Back Assy, Tub 1 1
18 9991-056-002 Support Arm Assy, Bearing Hsg 6 6
19 9545-059-002 Bolt 7/16x2 (Tub back to tub) 12 12
19 8640-416-005 Nut, Flange Lock 12 12
20 9732-108-002 Dispenser 1 1
21 9206-416-001 Gasket, Dispenser 1 1
* 9242-450-001 Hose, Dispenser to tub 1 1
22 8654-117-008 Clamp, Dispenser to Hose 2 2
23 9610-001-001 Vacuum Breaker 1 1
* 9029-077-001 Bracket, Vacuum Breaker 1 1
* 9545-008-005 Screw 4 4
* 9552-038-003 Thick Shim AR AR
* 9869-007-001 Tub & Cylinder Assy - Somp * *
MODELS
WCN40
A A
A B
86 87
Part # 8533-035-002 4/22 Part # 8533-035-002 4/22
87
Cylinder, Seals,
& Bearings
Water Inlet &
Rear Channel
To Next Page
