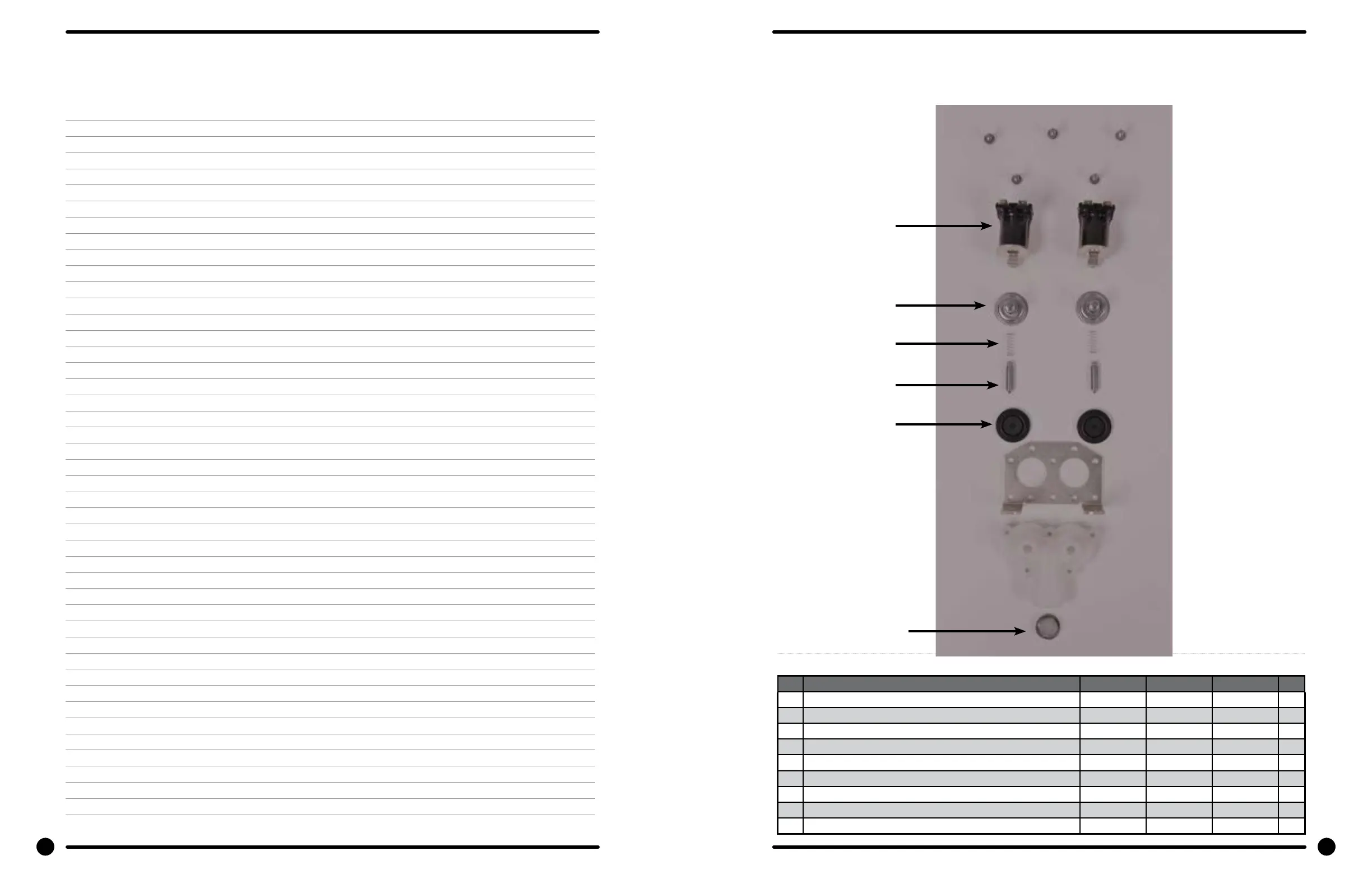

Water Inlet Valve Breakdown Part # by Model
Key Description T300 T400 T600 QTY
* Valve, Water Inlet (includes 1 thru 6) 9379-183-012 9379-183-012 9379-183-012 2
1 Screen, Inlet end of valve 9555-056-001 9555-056-001 9555-056-001 2
2 Coil Assy., 120 V Invensys 9089-017-001 9089-017-001 9089-017-001 2
3 Diaphragm Invensys (Viton) 9118-049-002 9118-049-002 9118-049-002 2
3 Diaphragm Invensys (EPDM) 9118-049-001 9118-049-001 9118-049-001 2
3 Diaphragm Invensys (EPDM NSF) 9118-049-003 9118-049-003 9118-049-003 2
4 Guide, Solenoid Invensys 9211-021-002 9211-021-002 9211-021-002 2
5 Armature Invensys 9015-008-001 9015-008-001 9015-008-001 2
6 Spring, Armature Invensys 9534-298-001 9534-298-001 9534-298-001 2
88 89
Part # 8533-035-002 4/22 Part # 8533-035-002 4/22
89
Notes
1
2
6
5
4
3
Cylinder, Seals,
& Bearings
Water Inlet &
Rear Channel
