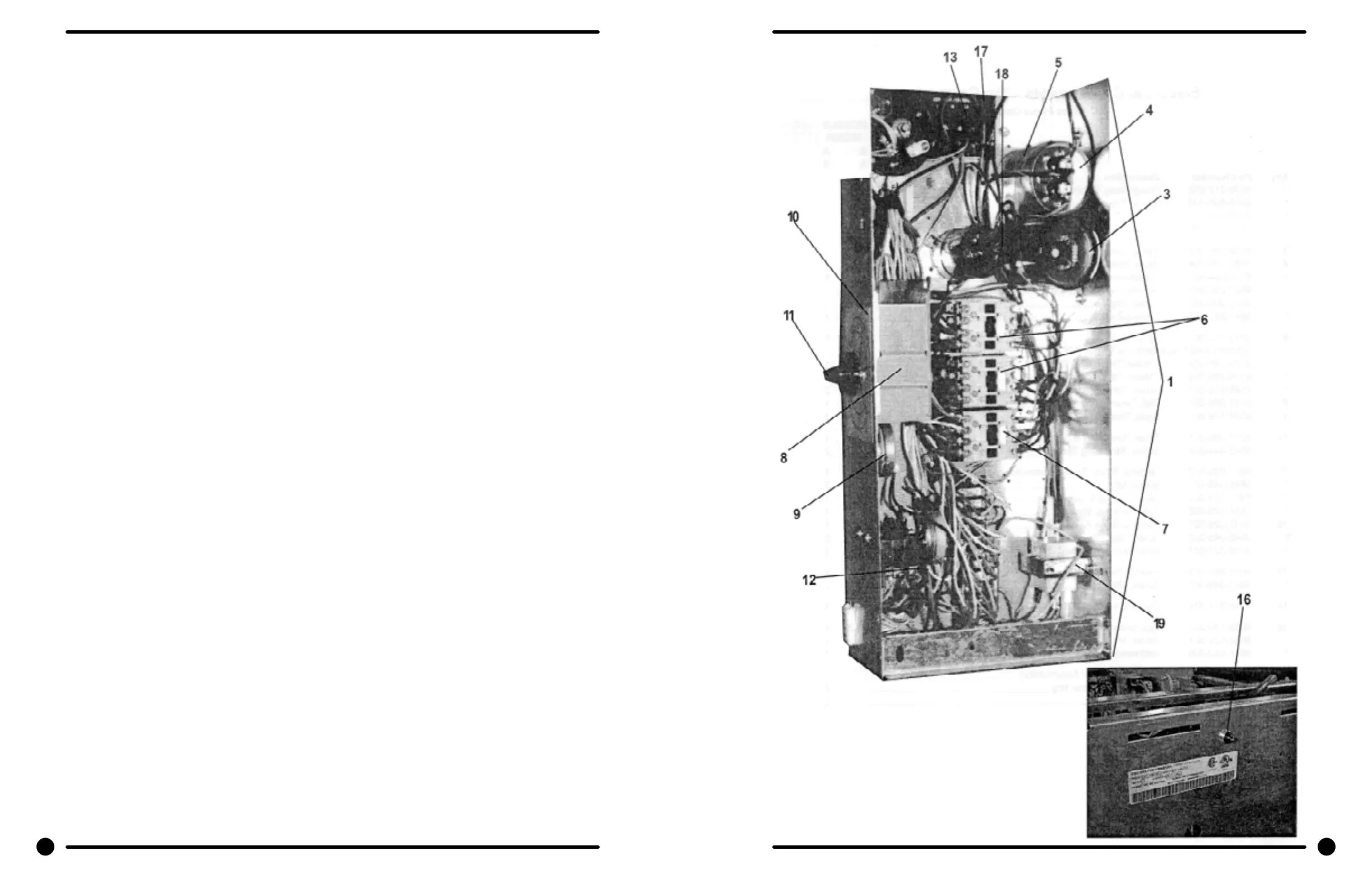

Electrical Components - Top Compartment
WCN25AA - Single Phase Only
Key Part Number Description Qty
1 9839-012-003 Trough Assy, Controls Mtg 1
* 9545-008-026 Screw, Trough Sides 2
* 9029-064-001 Bracket, Trough to Rear Channel (not shown) 1
* 9545-008-001 Screw, Trough Bracket 3
3 5191-102-005 Capacitor, Spin-Start 1
4 5191-103-010 Capacitor, Run-Tumble 1
5 9544-049-002 Strap, Capacitor Mtg 1
* 9545-045-001 Screw, Capacitor Strap 2
6 5192-295-007 Relay, Tumble 2
7 5192-295-001 Relay, Spin 1
8 9571-362-001 Timer, Program 1
(VERIFY PART NUMBER ON TIMER BODY)
* 9376-295-002 Motor, Timer Main Drive 1
9 9376-286-004 Motor, Timer Rapid Advance 1
* 9545-012-001 Screw, Timer Mtg 2
10 9107-068-001 Dial, Timer Label 1
11 9307-176-001 Knob, Timer (w/set screws) 1
12 9571-360-001 Timer, Reversing 115 V 1
* 9545-044-004 Screw, Reversing Timer 2
13 9897-035-001 Terminal Block, Power Connection 4 pole 1
* 9545-045-002 Screw, Mtg 2
* 8502-619-003 Label, Fusing & Installation 1
* 9558-021-001 Strip, Terminal Marker 1
14 9897-029-001 Terminal Block Assy, 12 Lug 1
* 9545 045-007 Screw, Mtg 2
* 9558-021-001 Strip, Terminal Marker 1
15 9539-457-001 Switch, Pressure 1
* 9545-045-001 Screw, Mtg 2
16 5198-211-004 Circuit Breaker, 1.5 amp 1
17 8652-130-037 Lug, Grounding 1
* 8639-621-007 Screw, Mtg 1
* 8641-582-006 Lockwasher 1
18 9539-478-002 Solid State Start Switch 1
* 9029-062-001 Strap, Mtg 1
* 9545-010-001 Screw 1
* 8640-412-005 Nut 1
* 9545-045-001 Screw, Mtg Strap to Control Trough 3
19 8711-003-001 Transformer, (For Accumulator) 120/24 VAC 1
* 9545 045-001 Screw, Transformer Mtg 2
* 8641-582-005 Lockwasher 2
* Not Illustrated
92 93
Part # 8533-035-002 4/22 Part # 8533-035-002 4/22
