Maintenance Manual LS8
Issued: December 2009
Copyright DG Flugzeugbau GmbH - any copy or publishing prohibited
Manual valid with the up-to-date cover page only
1-4
Caution: when working at control systems
To keep humidity out of the pushrods and prevent corrosion, there are no
inspection holes to check rod end depth.
Rod end bearings used may have different thread lengths with identical heads.
Therefore, before adjusting rod end bearings, remaining thread reach must be
checked by disassembly.

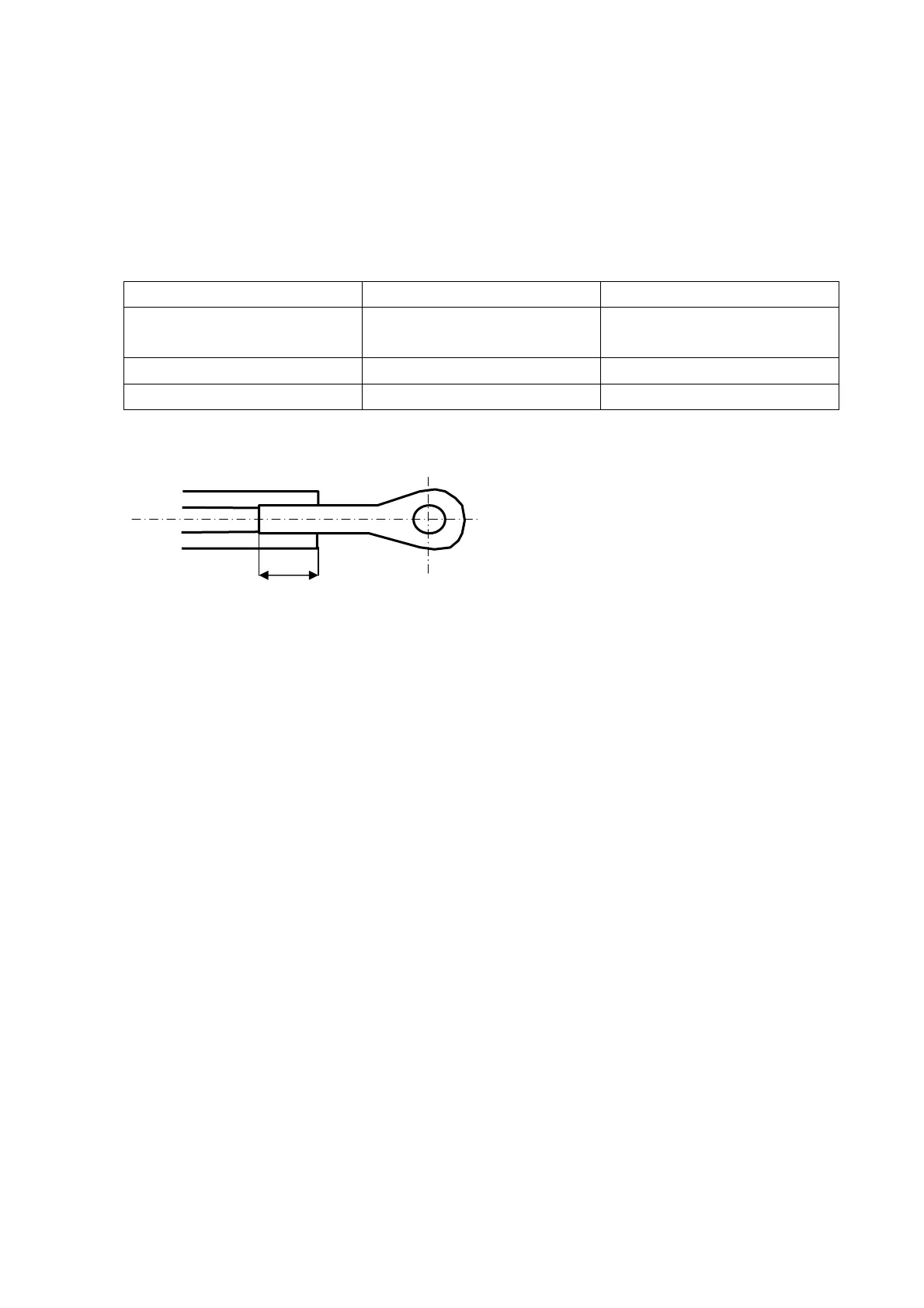

Thread diameter Minimum reach x Rod end designation
M6 x 1 (Standart) 17 mm / 0.67 in EM 6 R (used in single
cases only)
M8 x 1,25 (Standart) 17 mm / 0.67 in various versions possible
M10 x 1 (Fine thread) 17 mm / 0.67 in PM 6 long
x
