DG Flugzeugbau LS8 - Gap Seals Rudder

Maintenance Manual LS8
Issued: December 2009
Copyright DG Flugzeugbau GmbH - any copy or publishing prohibited
Manual valid with the up-to-date cover page only
4-10
4.2.3 Gap seals rudder
Material:
No. Designation Amount required
1 Plastic seal 0.25 Form 2, 30 mm, convex 2.3 m <7.55 ft>
2 Tesa film 4104 white 19 mm 2.3 m <7.55 ft>
3 Bonding film Tesafix 4965 translucent 12 mm 2.3 m <7.55 ft>
4 Bonding film Tesafix 4965 translucent 9 mm
(only if V-seals is not self adhesive)
2.3 m <7.55 ft>
5 V-Type seals 2.3 m<7.55 ft>

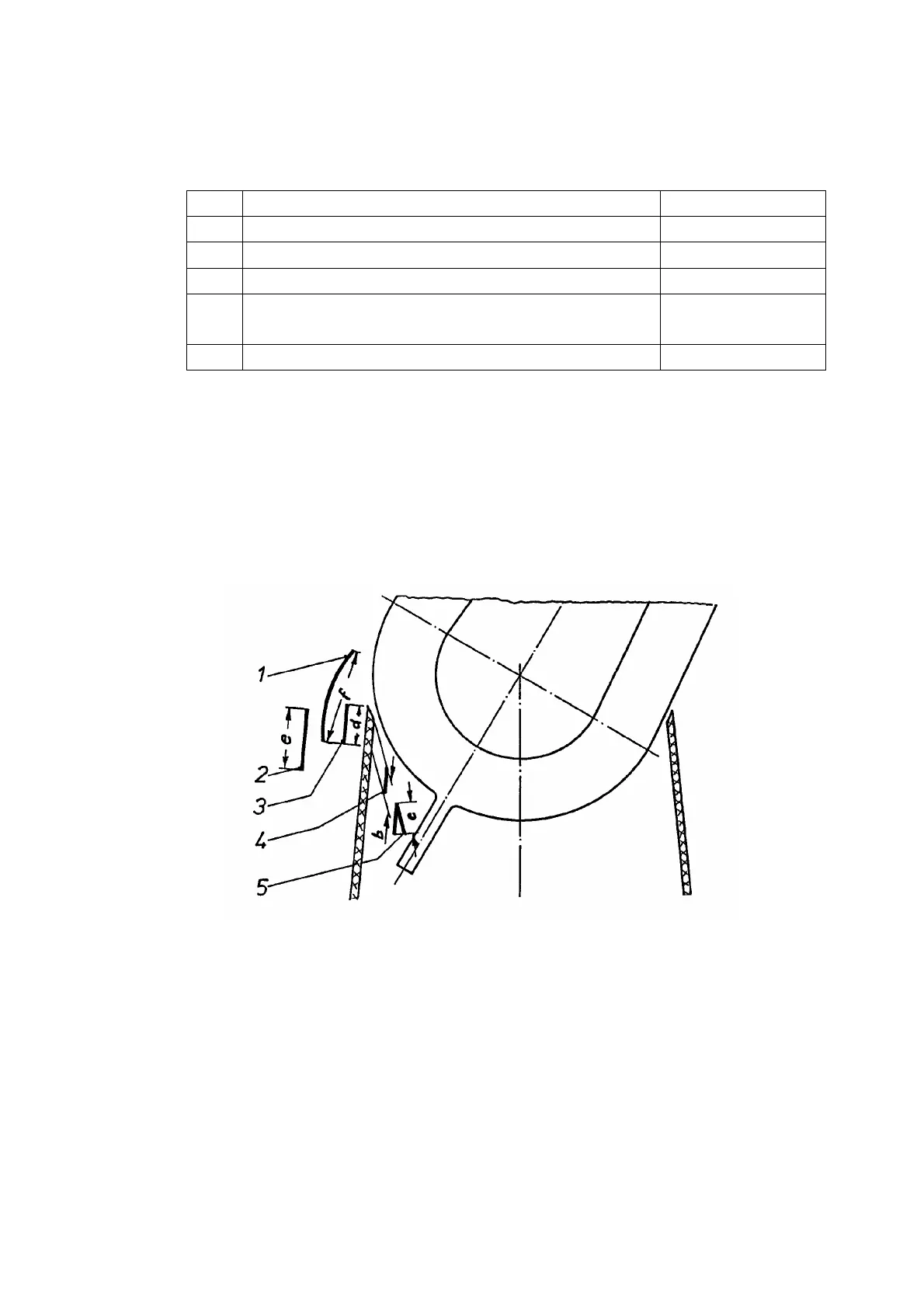

Dimensions [mm, <in>]
b = 9 <0.354>
c = 10 <0.394>
d = 12 <0.472>
e = 19 <0.748>
f = 30 <1.181>
Items 4 and 5may not be installed at LS8-b
