DG Flugzeugbau LS8 - Wing Water Ballast System with Winglet Ventilation

Maintenance Manual LS8
Issued: March 2016 TN8024
Copyright DG Flugzeugbau GmbH - any copy or publishing prohibited
Manual valid with the up-to-date cover page only
1-17
Wing water ballast system with winglet ventilation (only LS8-a up to ser. no.
8065)
2. Version

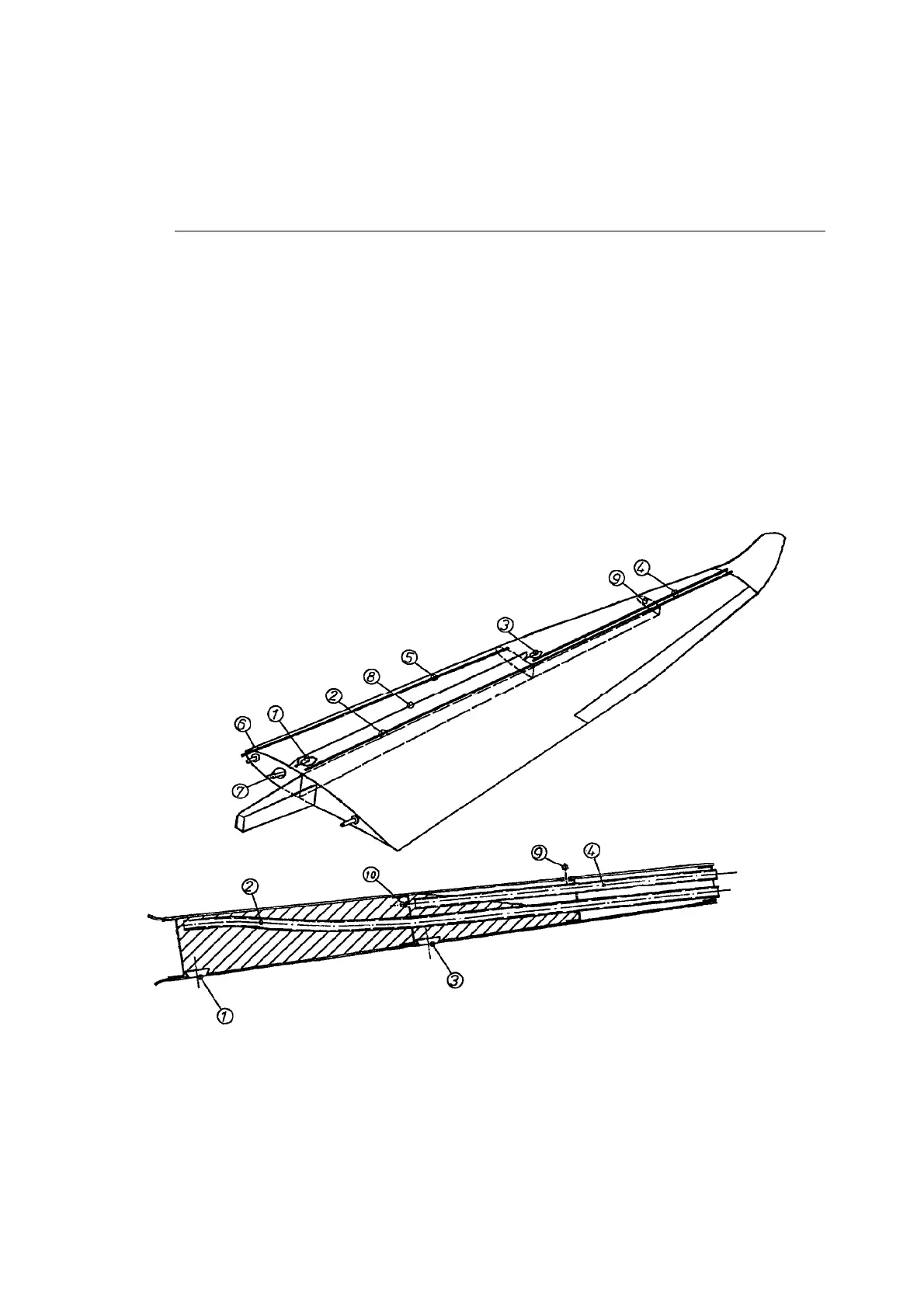

No. Designation
1 Valve of inner tank
2 Ventilation tube of inner tank
3 Valve of outer tank
4 Ventilation tube of outer tank
5 Drain tube of outer tank (may be closed due to malfunction see
TN8006 and log book entry)
6 Draining valve for both tanks
7 Drive lever
8 Cable to valve of outer tank
9 Additional ventilation of outer tank
10 Inner ventilation
