DG Flugzeugbau LS8 - Aileron Control System Wings (LS8-A, LS8-B, LS8-18)

Maintenance Manual LS8
Issued: March 2016 TN8024
Copyright DG Flugzeugbau GmbH - any copy or publishing prohibited
Manual valid with the up-to-date cover page only
1-9

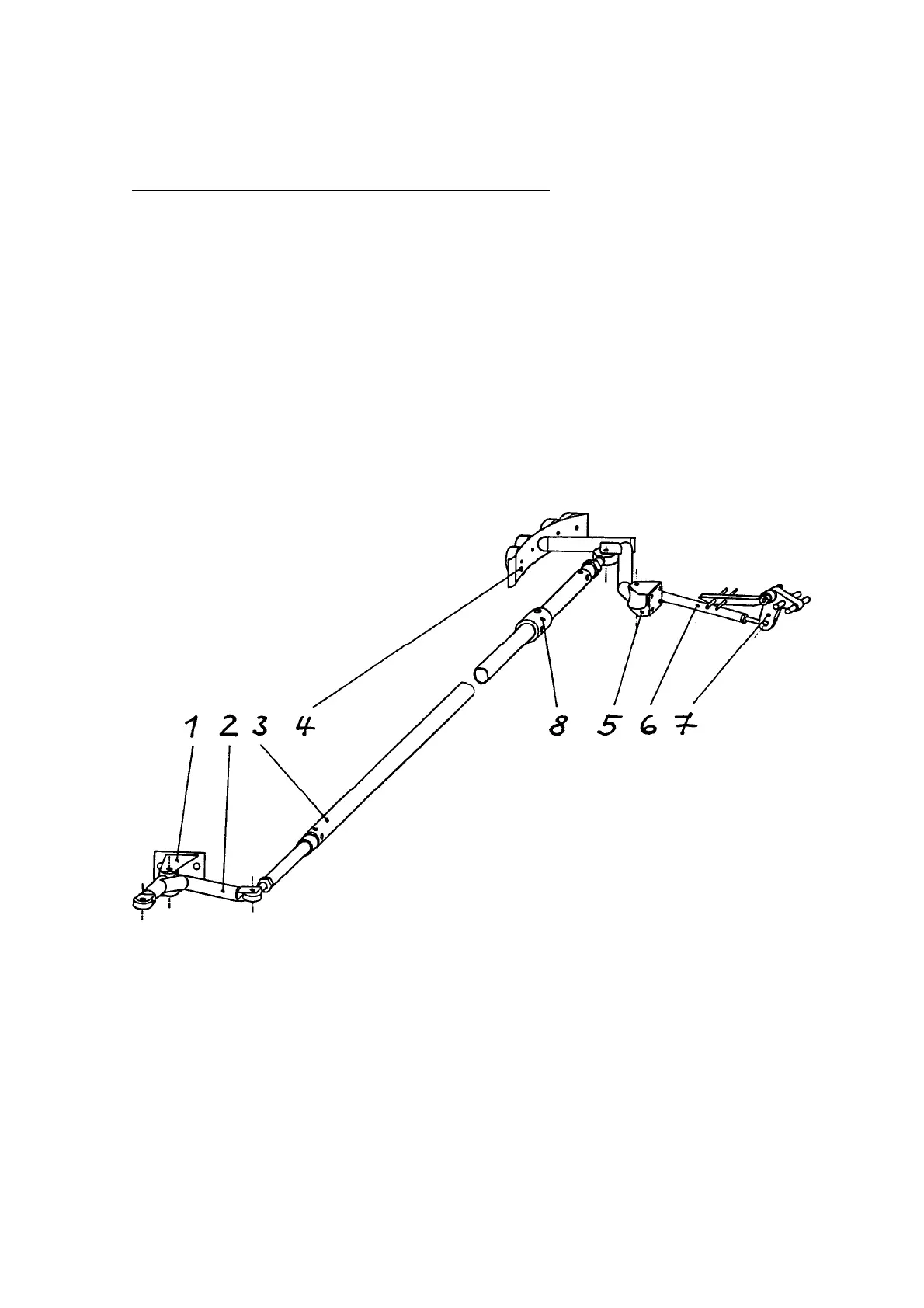

1.6 Aileron control system wings (LS8-a, LS8-b, LS8-18)
No
.
Designation Drawing
1 Root rib bracket 4F3-76
2 Root rib aileron drive 3F3-78
3 Right aileron pushrod 4F3-135
Left aileron pushrod 4F3-139
4 Aileron drive lever 1F3-133
5 Wing aileron drive bracket 4F3-134
6 Aileron drive rod 4F3-137
7 Drive bracket at aileron 4Q1-40
8 Aileron stop 4F32-136
