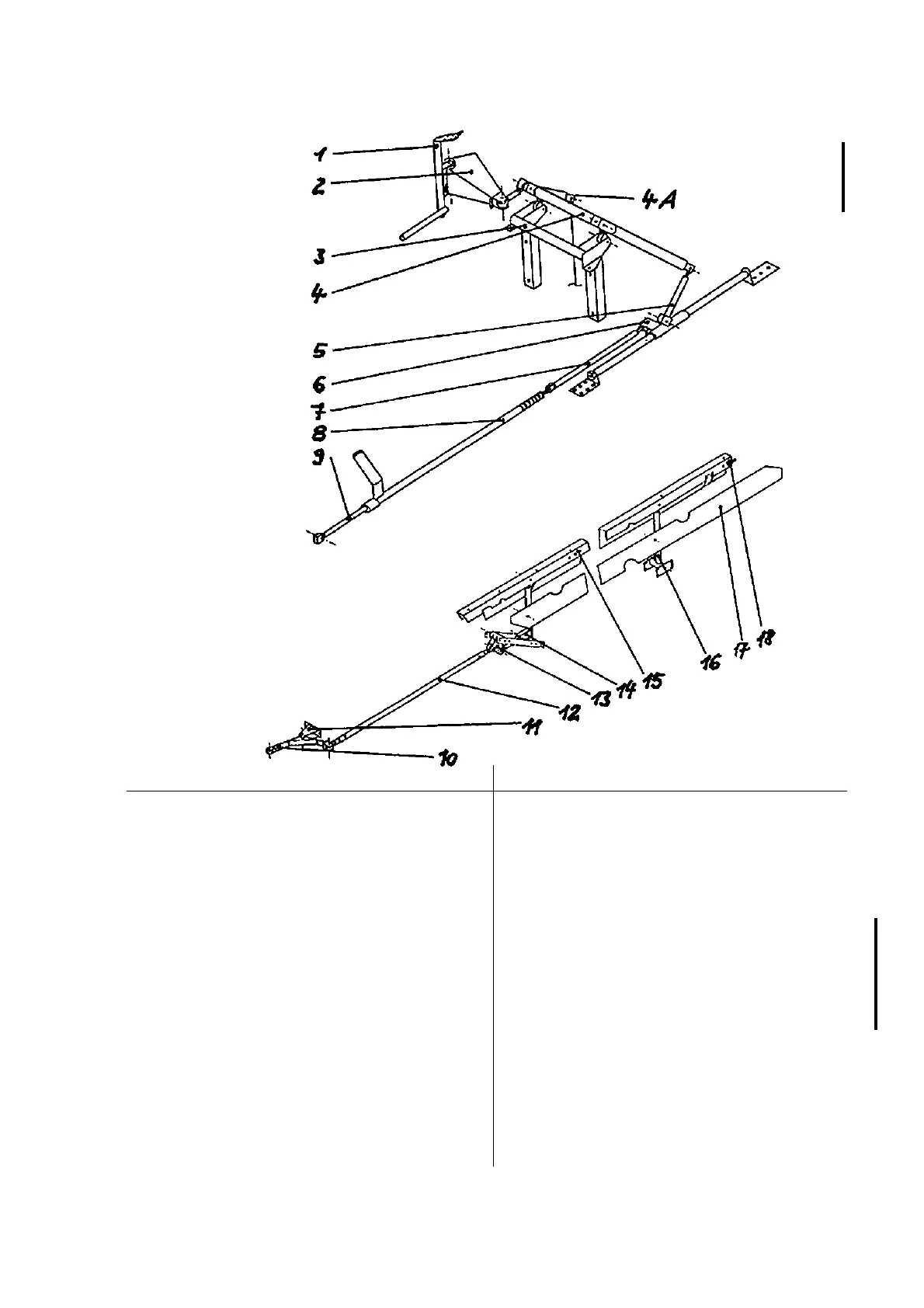

1.3 Air brake system
Fuselage Wings
No. Designation Drawing No
.
Designation Drawing
1 Automatic connector bea
r
3R10-119 10 Root rib drive lever 3F4-71
2 Air brake connector 3R6-44 or 3F4-64
3 Air brake drive bracket 3R6-54 11 Root rib bracket 4F3-76
4 Air brake drive 3R6-50 12 Wing pushrod 4F4-63
With TN8019 executed:
13 Locking lever 4F4-53
4 Air brake lever with
wheel brake attachment
14 Inner lever 3F4-51
4A Bowden cable attachment
for wheel brake
9St13
15 Upper blade 3F4-60
5 Intermediate rod 4R10-77 16 Outer lever 3F4-52
6 Sliding member 4R6-47 17 Lower blade 3F4-54
7 Air brake rod 4R6-59 18 Friction brake
8 Air brake lever 3R6-58
9 Lever guide tube 4R6-31
