DG Flugzeugbau LS8 - Rudder Control System

Maintenance Manual LS8
Issued: February 2011 TN8019
Copyright DG Flugzeugbau GmbH - any copy or publishing prohibited
Manual valid with the up-to-date cover page only
1-10

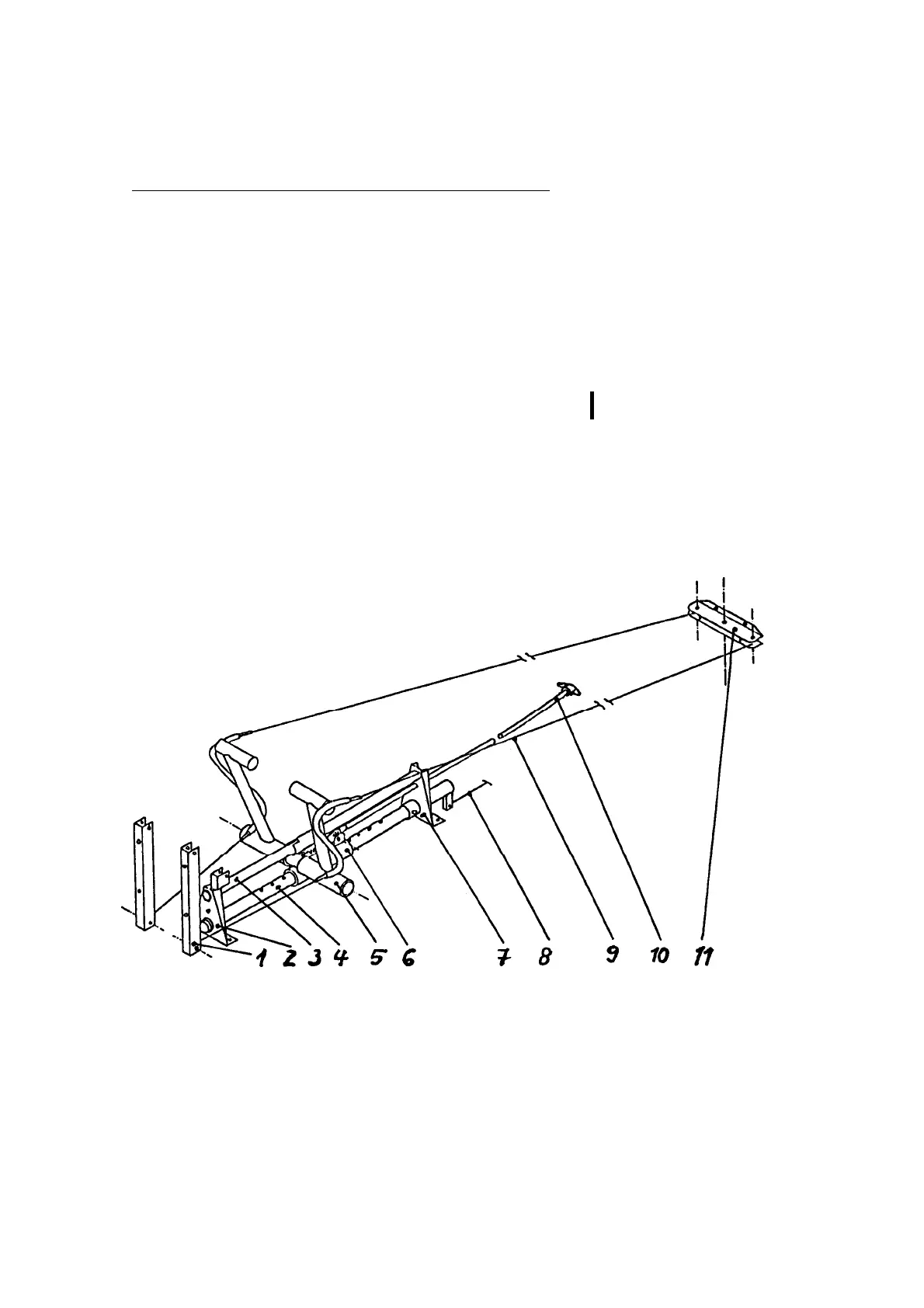

1.7 Rudder control system
No
.
Designation Drawing
1 Canopy opener bracket 4R8-67
2 Forward pedal guide bracket 3R14-14
3 Upper pedal guide tube 4R14-18
4 Lower pedal guide tube 4R14-19
5 Rudder pedal 1R14-21
6 Pedal support 3R14-16
7 Rear pedal guide bracket 3R14-15
8 Wheel brake cable
8
Not installed with TN8019 executed
9 Rudder cable
10 Pedal adjustment cable 4R14-31
11 Rudder drive bracket 4S1-10
