Maintenance Manual LS8
Issued: December 2009
Copyright DG Flugzeugbau GmbH - any copy or publishing prohibited
Manual valid with the up-to-date cover page only
4-17

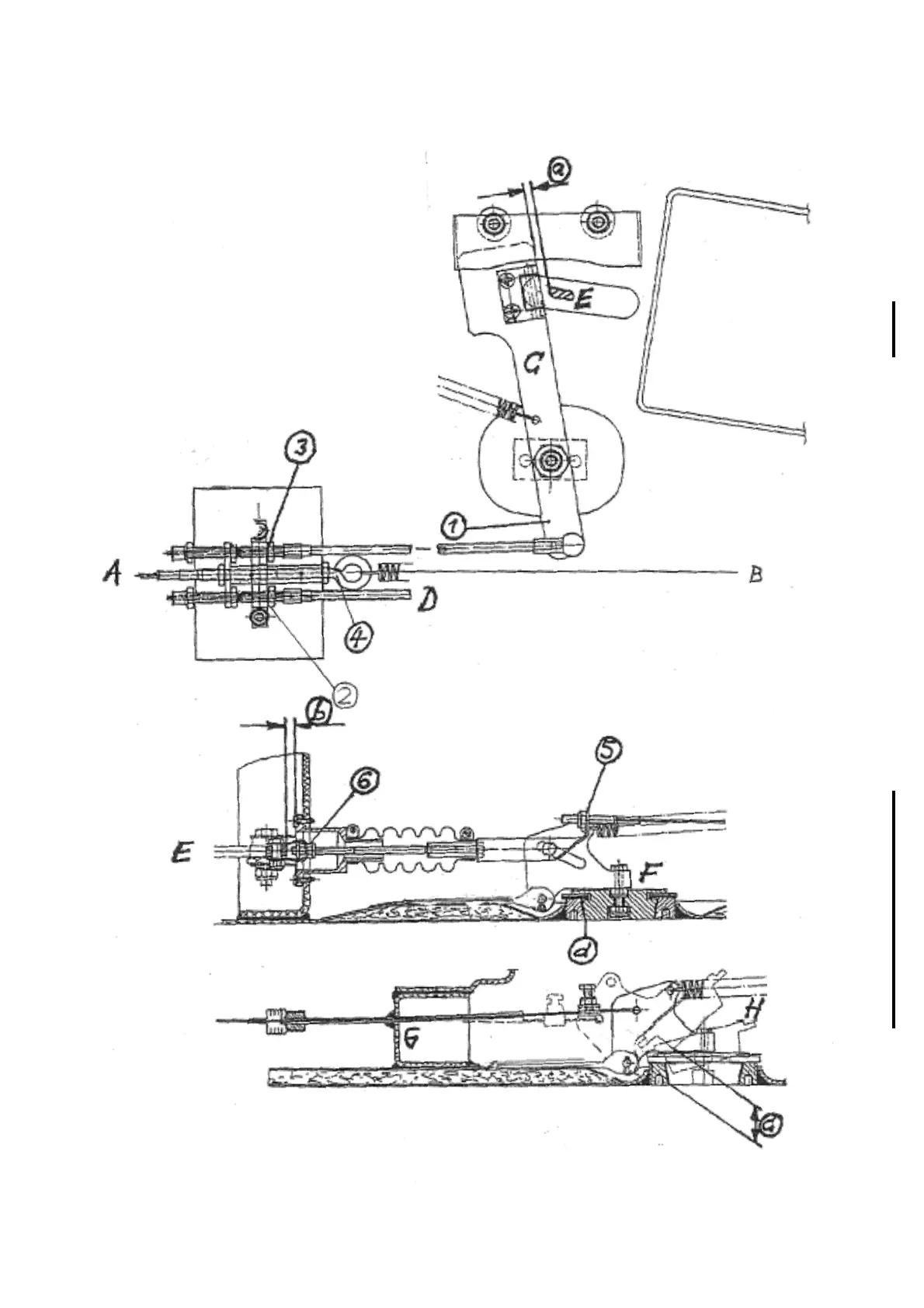

Sketch 3
LS8-b and LS8-a and LS8-18 with integral tail tank
A - to cockpit lever
B - to tail tank
C - right side fuselage drive
D - to left fuselage drive
E - right wing drive lever
F - inner wing tank valve,
may be produced without
the slot
G - rib between both tanks
H - outer wing tank valve
inner dump
valve
outer dump
valve
