Maintenance Manual LS8
Issued: June 2016 TN 8024
Copyright DG Flugzeugbau GmbH - any copy or publishing prohibited
Manual valid with the up-to-date cover page only
7-6
Placards and markings continued

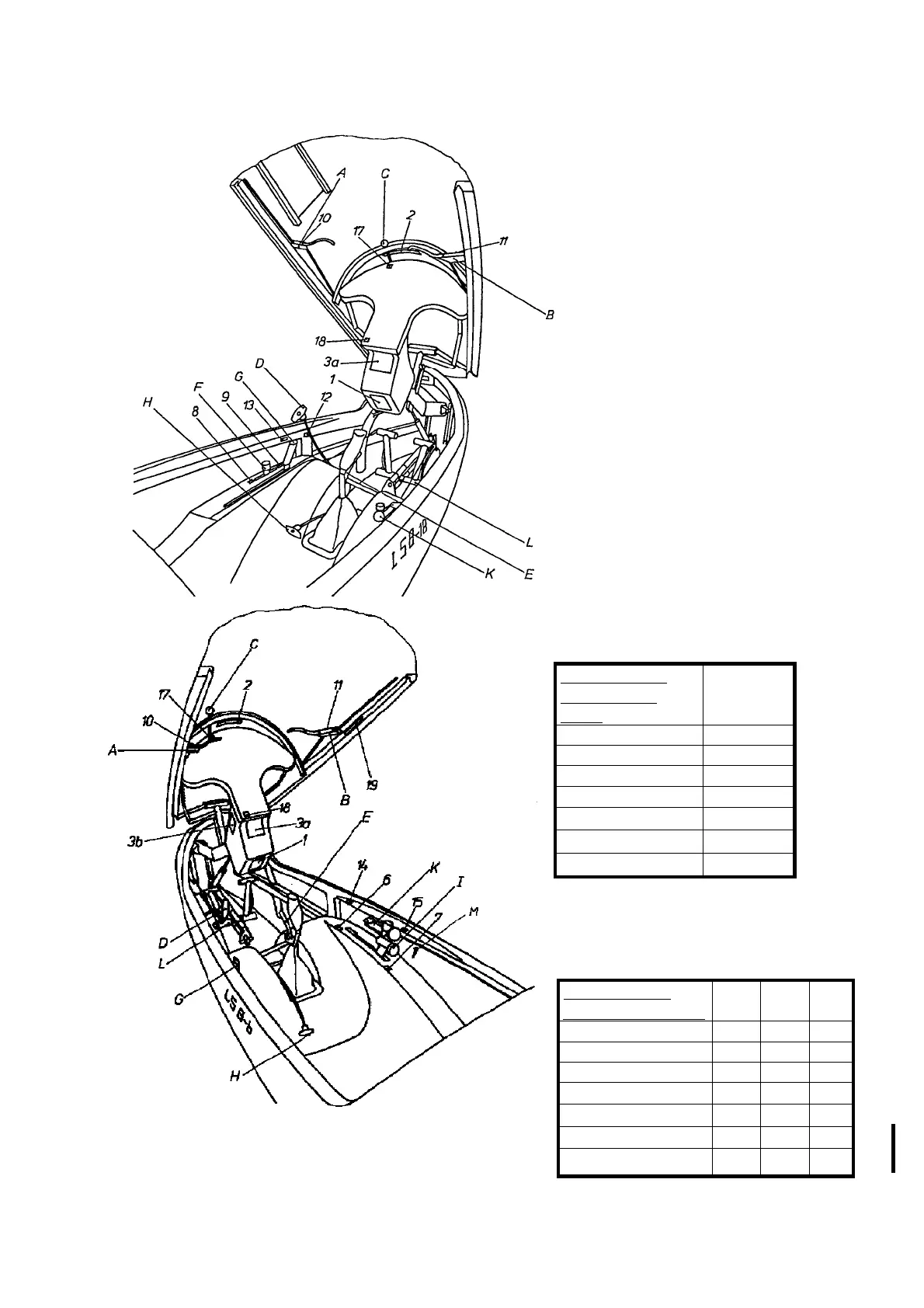

A – Left canopy locking
B – Right canopy locking and
emergency canopy release
C – Ventilation
D – Tow cable release
E – Trim locking lever
F – Trim lever, also indicating
trim position
G – Air brake handle
G with TN8019 executed:
Air brake and wheel brake handle
H – Pedal adjustment
I – Landing gear lever
K – Water ballast
L – Rudder pedals and wheel brake
(feet operated)
L with TN8019 executed:
Rudder pedals
M Only LS8-b – Dummy handle
instead of fuel cock
On panel near airspeed indicator,
For countries operating with
metric units only
Altitude related
Never Exceed
Speed
km/h
Up to 2000 m MSL 280
Up to 3000 m MSL 266
Up to 4000 m MSL 253
Up to 6000 m MSL 227
Up to 8000 m MSL 202
Up to 10000 m MSL 179
Up to 12000 m MSL 156
Altitude related
Never Exceed Speed
km/h
Kt.
mph
Up to 6500 ft MSL 280 151 174
Up to 9800 ft MSL 266 144 165
Up to 13100 ft MSL 253 136 157
Up to 19700 ft MSL 227 122 141
Up to 26200 ft MSL 202 109 126
Up to 32800 ft MSL 179 97 111
Up to 39400 ft MSL 156 84 97
