SM-200 TE Grinding and Honing Machine
22
Design and Function
6
6.3 Design and Function
The SM-200 TE grinding and honing machine consists of a grind-
ing angle device [18], a grinding wheel [6], a wet grinding belt [8],
a polishing wheel [17] and a cooling water unit [11]. The electric
motor in the housing of the machine powers all the abrasives at the
same time via the gears, V-belt and spindle.
A buckle-resistant stainless steel frame accommodates the individ-
ual components of the SM-200 TE grinding and honing machine.

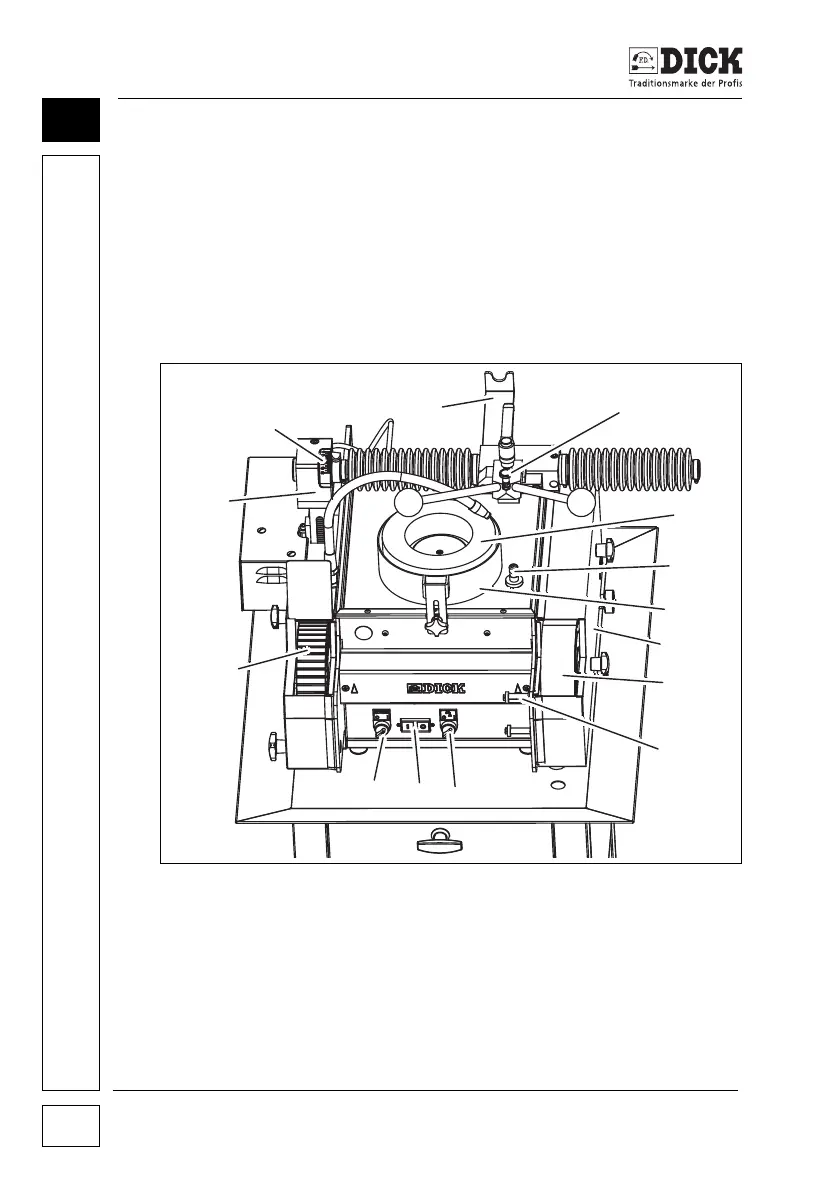

Figure 6.2 – Overview from above
[19] Scale head
[20] Mounting for dressing tool
[21] Grinding lever support
[22] On/Off switch for the abrasives
[23] Main On/Off switch
[24] On/Off switch for the cooling water
