SM-200 TE Grinding and Honing Machine 67
Servicing and Maintenance
10
1 Pull out the mains plug on the SM-200 TE.
2 Set the On/Off switch for the abrasives to position 0 (OFF).
3 Remove the protective cover on the back of the machine.
4 The clamping screw is now visible. Rotate the clamping screw
with an SW 17 spanner and lightly tension the V-belt.
5 Replace the protective cover.
10.8 Adjusting the wedge on the lift rod
.
Wear can cause play in the transverse direction on the lift rod.
Check the wedge [1]. Replace the wedge if there is uneven wear.
If the wedge has worn evenly, reduce the play in the transverse
direction by altering the adjusting screw [2].
1 Move the lifting device to the top position with the foot pedal.
2 Place a drop of oil in the transition between the wedge and the
lift rod.
NOTE
Pull out the mains plug before changing the polishing wheel on the
grinding and honing machine.

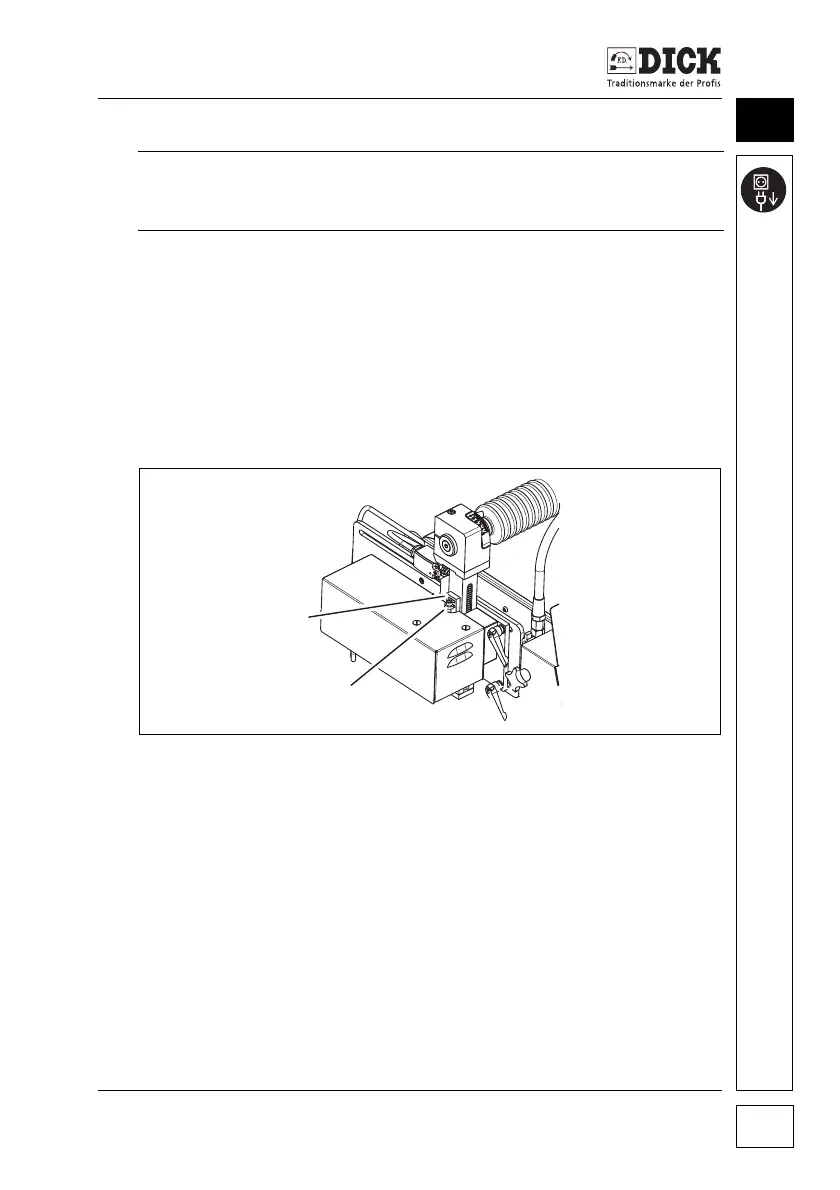

Figure 10.10 – Adjusting the wedge on the lift rod
[1] Wedge
[2] Adjusting screw
2
1
