SM-200 TE Grinding and Honing Machine
66
Servicing and Maintenance
10
Tension the ribbed belt if there is insufficient torque on the grinding
belt or polishing wheel.
1 Pull out the mains plug on the SM-200 TE.
2 Set the On/Off switch for the abrasives to position 0 (OFF).
3 Remove the screws from cover plate.
4 Remove the cover plate.
5 Loosen the screws on the idler pulley.
6 Press and hold the idler pulley upwards.
7 Retighten the screws on the idler pulley.
8 Replace the cover plate.
9 Retighten the mounting screws on the cover.
10 Plug in the mains plug on the SM-200 TE.
10.7 Readjusting the V-belt
.
Tension the V-belt if there is insufficient torque on the grinding
wheel, grinding belt and polishing wheel.
NOTE
Switch off the grinding and honing machine SM-200 TE and pull
out the mains plug before working on the ribbed belt.

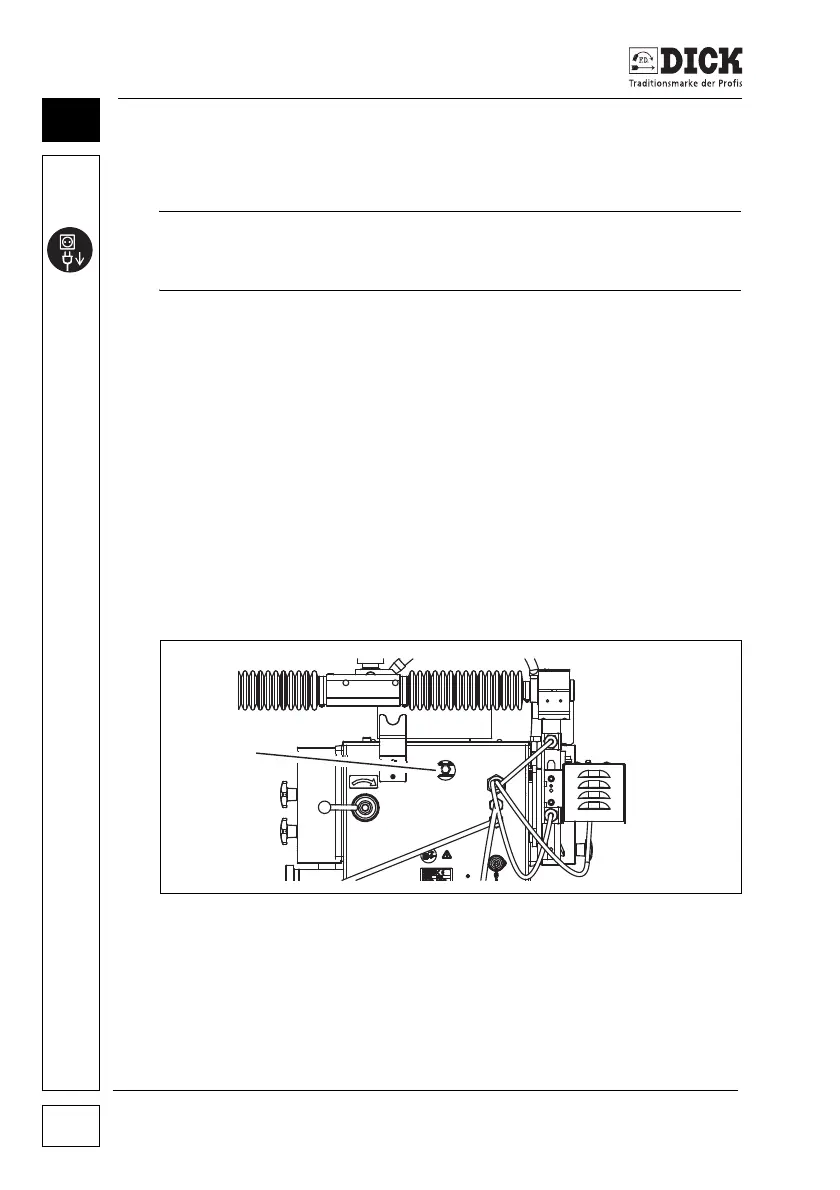

Figure 10.9 – Tensioning the V-belt
[1] Clamping screw
1
