Dick SM-200 TE - Setting the Grinding Radius on the Universal Grinding Arm

SM-200 TE Grinding and Honing Machine 39
Setting up the Machine
8
1 Loosen the screw [2].
2 Position the sliding carriage so that a line can be drawn
through the universal mounting head that lands on the grind-
ing wheel between the 1 o'clock and 2 o'clock positions.
3 Tighten the screw [2].
4 Loosen the screw [4] and release the rotary function.
8.7 Setting the grinding radius on the universal grind-
ing arm
The SM-200 TE grinding and honing machine with a universal
grinding arm can be set for different grinding radii. To do this,
mount the universal mounting head along with the clamping piece
on the front or the back of the universal grinding arm. Each position
enables a specific grinding radius range.

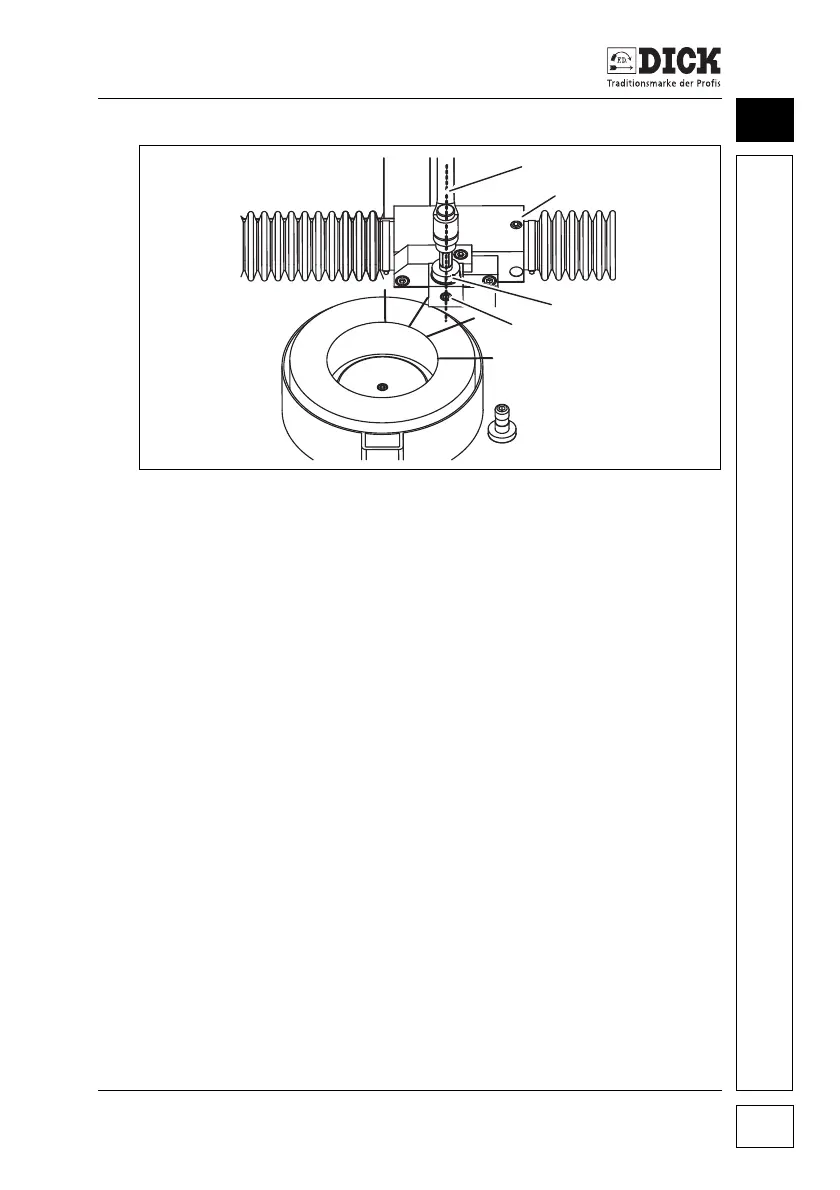

Figure 8.6 – Setting a round cutting edge
[1]
Line through the universal mounting head onto the grinding plate
[2] Screw
[3] Groove
[4] Screw
III
II
I
XII
2
1
4
3
