SM-200 TE Grinding and Honing Machine 65
Servicing and Maintenance
10
1 Pull out the mains plug on the SM-200 TE.
2 Set the On/Off switch for the abrasives to position 0 (OFF).
3 Loosen the star handles and remove the safety guard.
4 Loosen the mounting nut [2] of the flange cover [3] (right-hand
thread).
5 Remove the flange cover [3].
6 Remove the polishing wheel [1].
7 Clean the shaft.
8 Mount the new polishing wheel.
9 Mount the flange cover.
10 Tighten the mounting nut of the flange cover [3] (right-hand
thread).
11 Mount the safety guard and tighten the star handles.
12 Plug in the mains plug on the SM-200 TE.
10.6 Readjusting the ribbed belt
.
NOTE
Pull out the mains plug before changing the polishing wheel on the
grinding and honing machine.

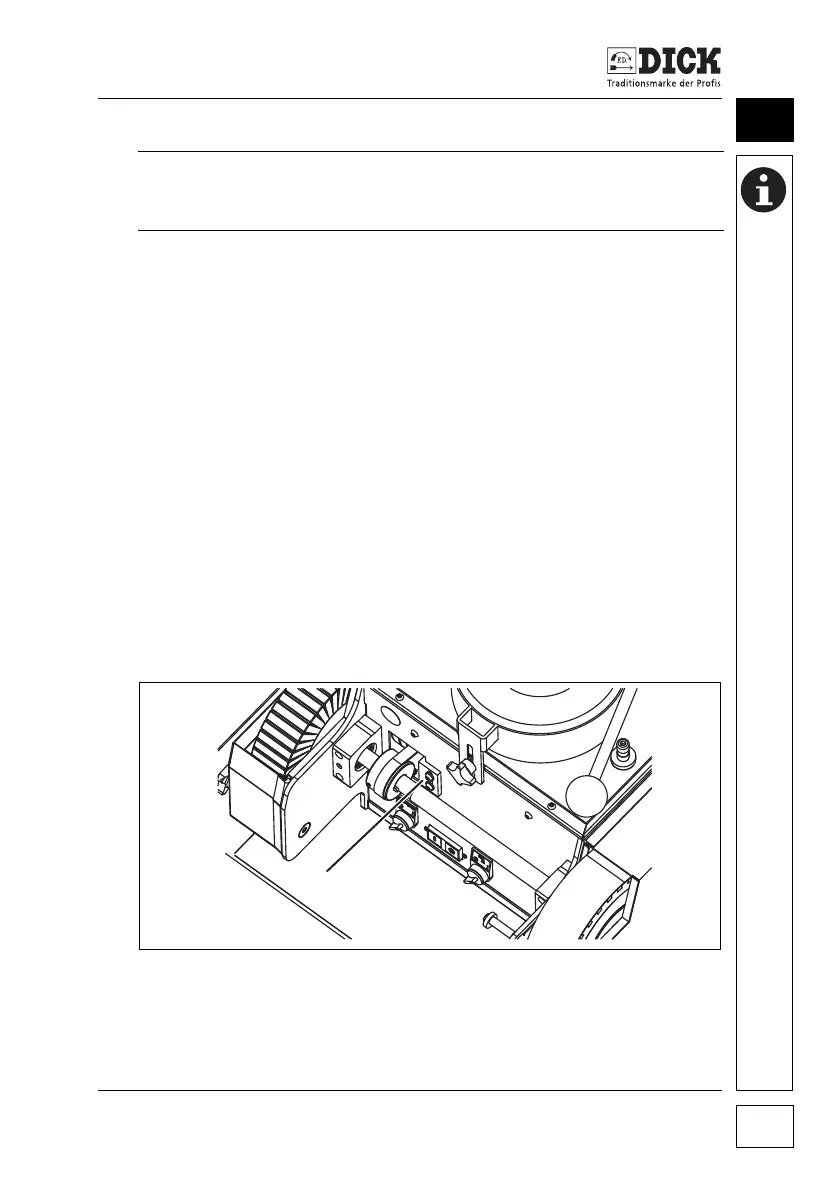

Figure 10.8 – Tensioning the ribbed belt
[1] Idler pulley
1
