SM-200 TE Grinding and Honing Machine
34
Setting up the Machine
8
Switch on the cooling water unit for working on the grinding wheel
or wet grinding belt.
3 Set the On/Off switch for the cooling water to position I (ON).
8.2 Switching off the grinding and honing machine
Switch off the grinding and honing machine if it is not used for a
longer period of time or is unattended.
1 Set the On/Off switch for the cooling water to position 0 (OFF).
2 Set the On/Off switch for the abrasives to position 0 (OFF).
3 Press the 0 (OFF) button on the main On/Off switch.
Pull out the mains plug if the grinding and honing machine is not
used for a longer period of time.
8.3 Adjusting the wet grinding belt
The wet grinding belt must be adjusted when starting up the
machine and after the belt has been changed. The pressure of the
grinding on the wet grinding belt is not the same across the entire
width. One-side of the belt material can move. The belt does not
run in the middle of the roller.

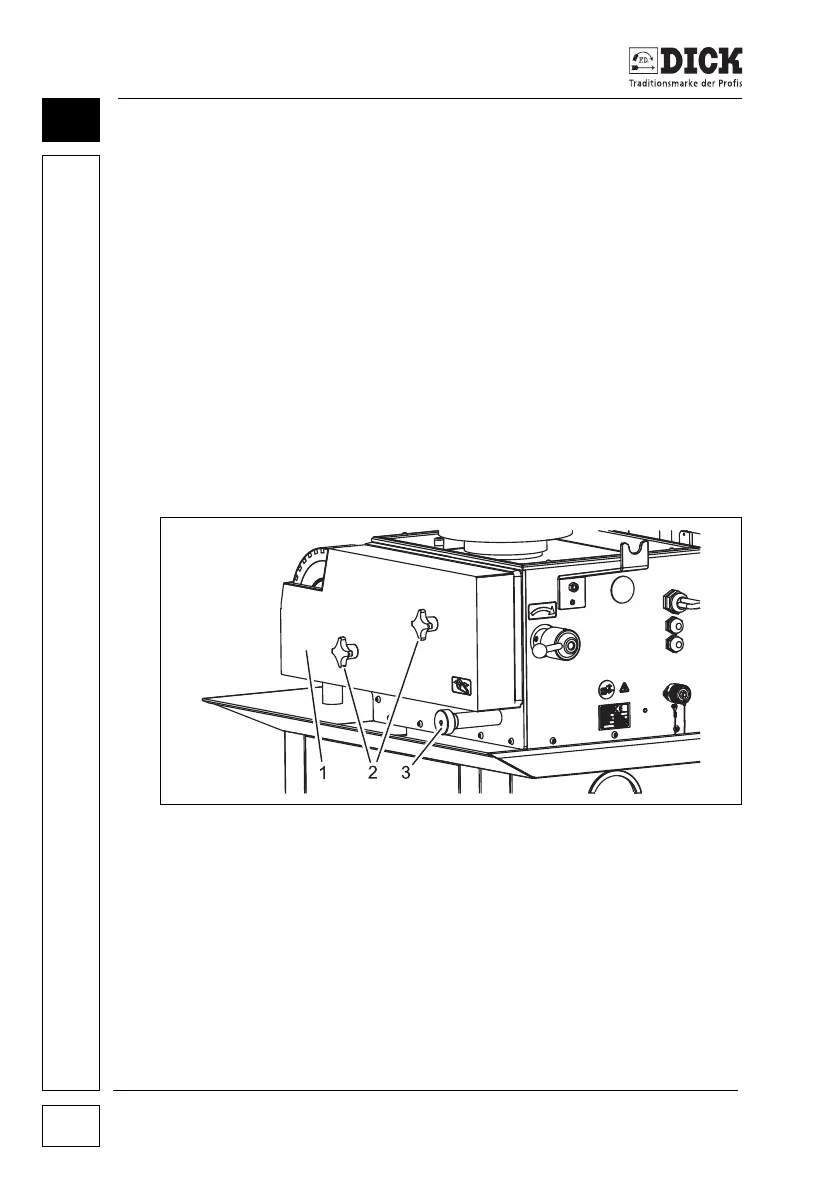

Figure 8.2 – Adjusting the wet grinding belt
[1] Belt safety guard
[2] Star handles
[3] Belt adjusting screw
