Releasing the rotary function:
1 Loosen the screw [2] on the universal mounting head [1].
8.9 Setting the grinding radius on the radial grinding arm
The SM-200 TE grinding and honing machine can be set for differ-
ent grinding radii. Four options are available for mounting the uni-
versal mounting head on the grinding arm.
Each option enables a specific grinding radius range by combining
the mounting position of the universal mounting head on the grind-
ing arm and the use of an extension.

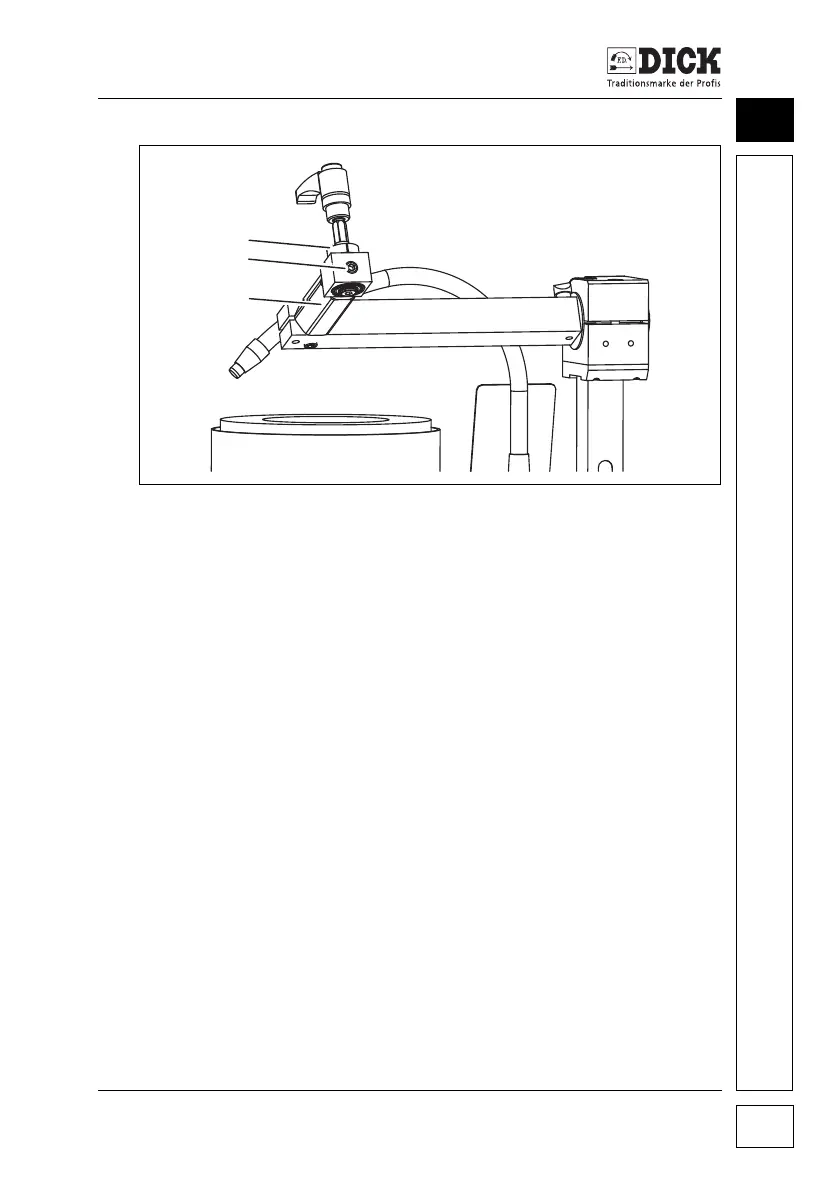

Figure 8.8 – Setting round cutting edge shapes
[1] Universal mounting head
[2] Screw
[3] Extension
Grinding radius Position on the radial grinding
arm
Extension
< 140 mm Front Yes
> 140 mm < 220 mm Front No
> 220 mm < 300 mm Back No
> 300 mm < 390 mm Back Yes
2
1
3
