SM-200 TE Grinding and Honing Machine
42
Setting up the Machine
8
Changing the grinding radius:
1 Loosen the screw [5].
2 Pull the universal mounting head [2] out of the grinding arm.
3 If the extension [4] is required - see table above - insert the
pin of the extension on the right-hand side of the grinding arm.
4 If the extension [4] is not required - see table above - insert
the universal mounting head [2] on the right-hand side of the
grinding arm.
5 Tighten the screw [5].
Mounting the universal mounting head [2] on the extension [4]:
1 Insert the pin of the universal mounting head in the extension.
2 Tighten the screw [3].

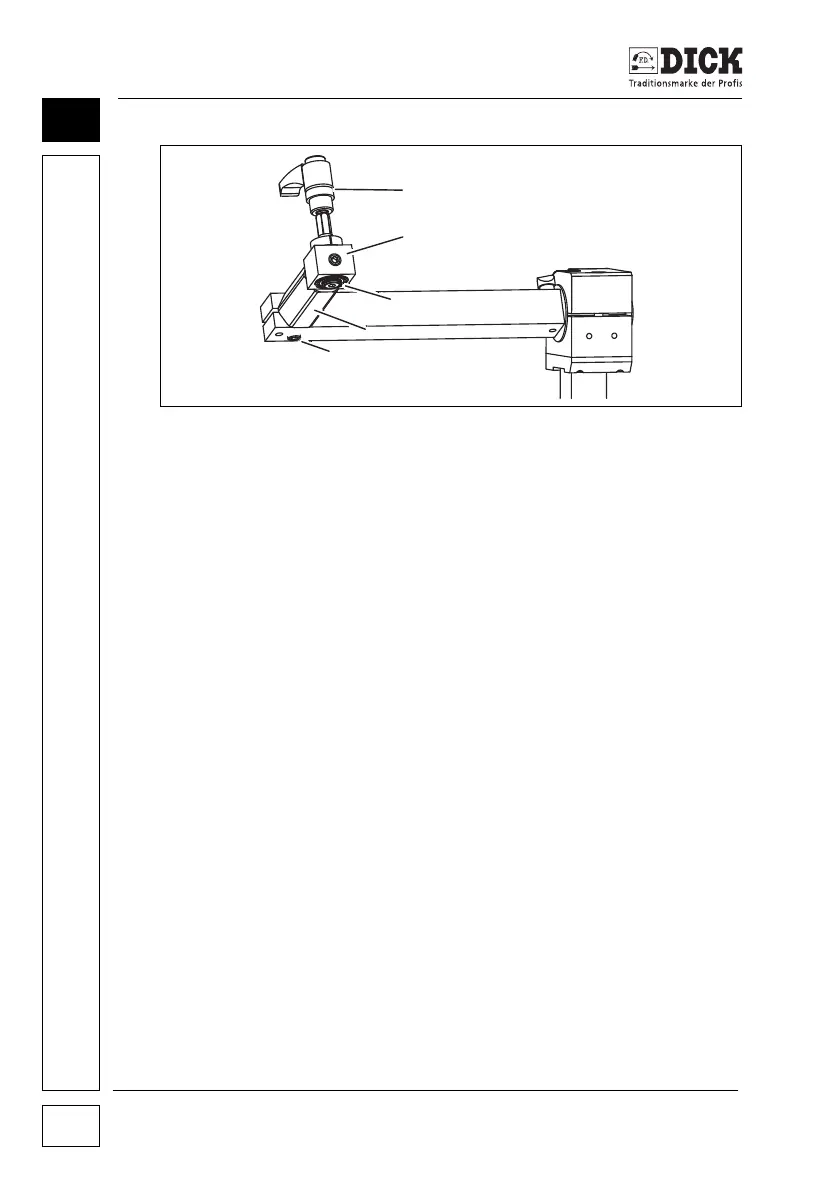

Figure 8.1 – Setting the grinding radius
[1] Clamping lever
[2] Universal mounting head
[3] Screw
[4] Extension
[5] Screw
1
3
4
5
2
