25

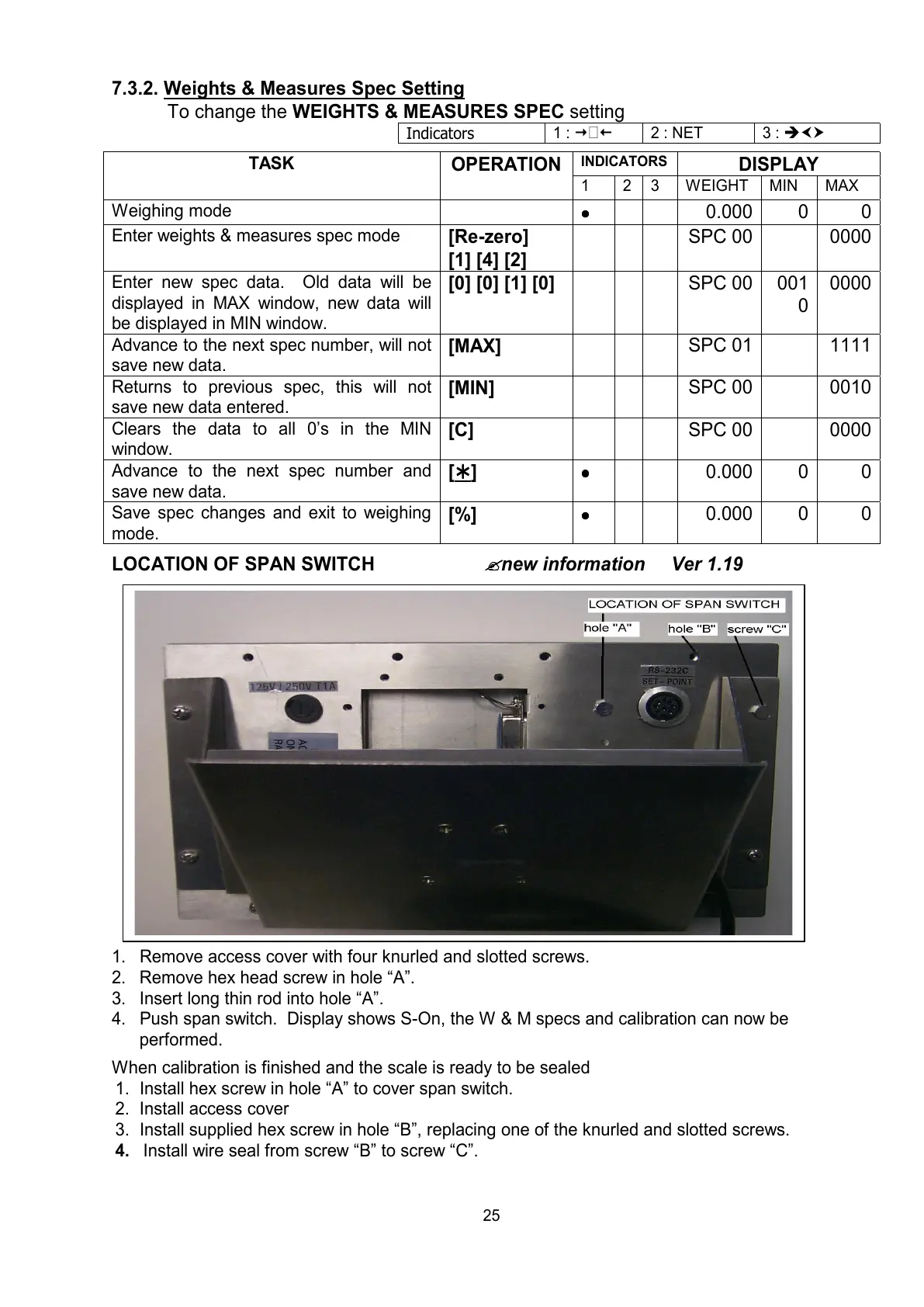

7.3.2. Weights & Measures Spec Setting
To change the WEIGHTS & MEASURES SPEC setting
Indicators
1 : 2 : NET 3 : Îgh
INDICATORS
DISPLAY
TASK
OPERATION
1 2 3 WEIGHT MIN MAX
Weighing mode
0.000 0 0
Enter weights & measures spec mode
[Re-zero]
[1] [4] [2]
SPC 00 0000
Enter new spec data. Old data will be
displayed in MAX window, new data will
be displayed in MIN window.
[0] [0] [1] [0]
SPC 00 001
0
0000
Advance to the next spec number, will not
save new data.
[MAX]
SPC 01 1111
Returns to previous spec, this will not
save new data entered.
[MIN]
SPC 00 0010
Clears the data to all 0’s in the MIN
window.
[C]
SPC 00 0000
Advance to the next spec number and
save new data.
[½
½½
½]
0.000 0 0
Save spec changes and exit to weighing
mode.
[%]
0.000 0 0
LOCATION OF SPAN SWITCH
"
""
"
new information Ver 1.19
1. Remove access cover with four knurled and slotted screws.
2. Remove hex head screw in hole “A.
3. Insert long thin rod into hole “A.
4. Push span switch. Display shows S-On, the W & M specs and calibration can now be
performed.
When calibration is finished and the scale is ready to be sealed
1. Install hex screw in hole “A to cover span switch.
2. Install access cover
3. Install supplied hex screw in hole “B, replacing one of the knurled and slotted screws.
4. Install wire seal from screwB to screwC.
