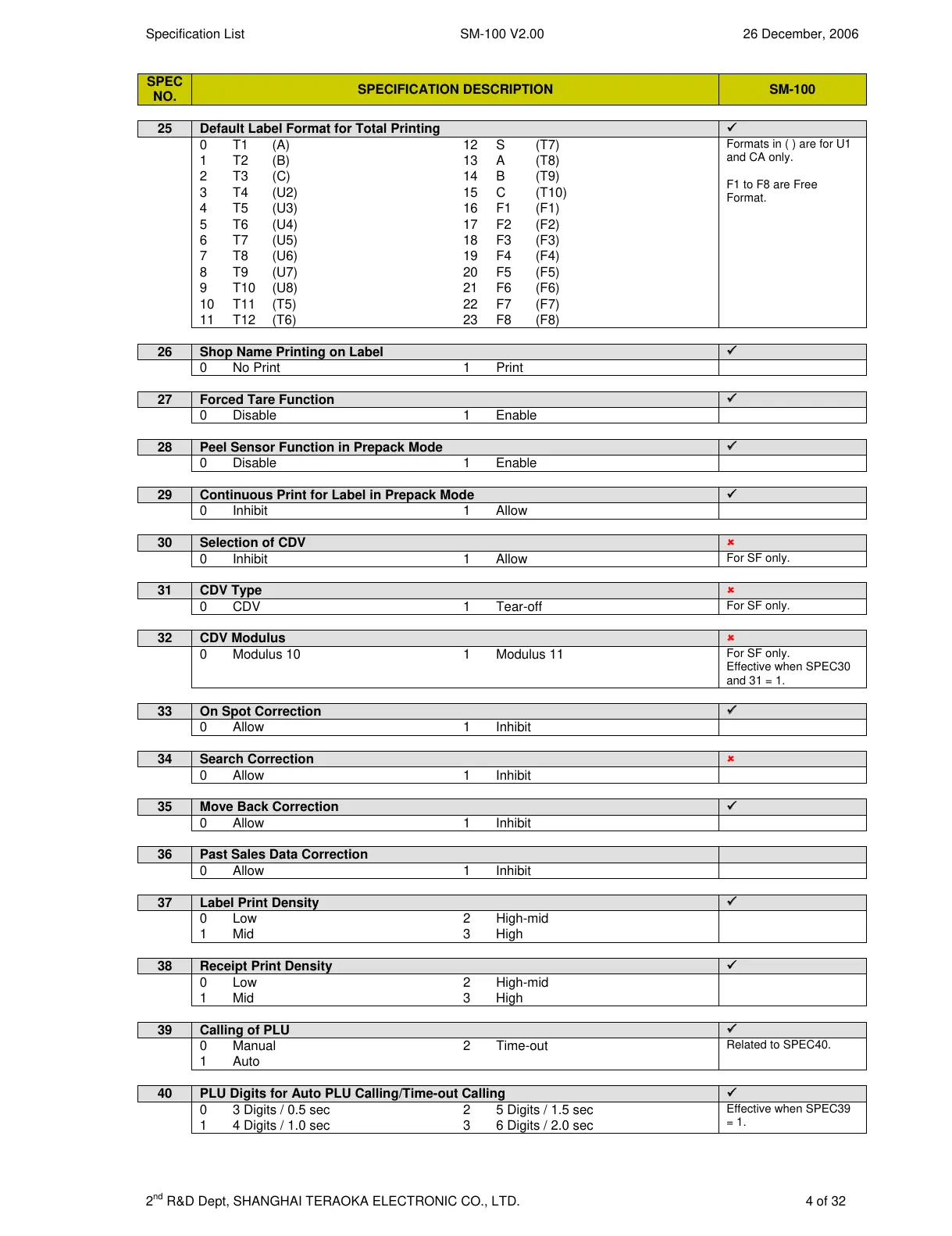

Specification List SM-100 V2.00 26 December, 2006
2
nd
R&D Dept, SHANGHAI TERAOKA ELECTRONIC CO., LTD. 4 of 32
SPEC
NO.
SPECIFICATION DESCRIPTION SM-100
25 Default Label Format for Total Printing
X
0 T1 (A)
12 S (T7)
Formats in ( ) are for U1
and CA only.
F1 to F8 are Free
Format.
1 T2 (B)
13 A (T8)
2 T3 (C)
14 B (T9)
3 T4 (U2) 15 C (T10)
4 T5 (U3)
16 F1 (F1)
5 T6 (U4)
17 F2 (F2)
6 T7 (U5) 18 F3 (F3)
7 T8 (U6)
19 F4 (F4)
8 T9 (U7)
20 F5 (F5)
9 T10 (U8) 21 F6 (F6)
10 T11 (T5)
22 F7 (F7)
11 T12 (T6)
23 F8 (F8)
26 Shop Name Printing on Label
X
0 No Print 1 Print
27 Forced Tare Function
X
0 Disable 1 Enable
28 Peel Sensor Function in Prepack Mode
X
0 Disable 1 Enable
29 Continuous Print for Label in Prepack Mode
X
0 Inhibit 1 Allow
30 Selection of CDV
W
0 Inhibit 1 Allow
For SF only.
31 CDV Type
W
0 CDV 1 Tear-off
For SF only.
32 CDV Modulus
W
0 Modulus 10 1 Modulus 11
For SF only.
Effective when SPEC30
and 31 = 1.
33 On Spot Correction
X
0 Allow 1 Inhibit
34 Search Correction
W
0 Allow 1 Inhibit
35 Move Back Co
r
rection
X
0 Allow 1 Inhibit
36 Past Sales Data Correction
0 Allow 1 Inhibit
37 Label Print Density
X
0 Low 2 High-mid
1 Mid 3 High
38 Receipt Print Density
X
0 Low 2 High-mid
1 Mid 3 High
39 Calling of PLU
X
0 Manual 2 Time-out
Related to SPEC40.
1 Auto
40 PLU Digits for Auto PLU Calling/Time-out Calling
X
0 3 Digits / 0.5 sec 2 5 Digits / 1.5 sec
Effective when SPEC39
= 1.
1 4 Digits / 1.0 sec 3 6 Digits / 2.0 sec
