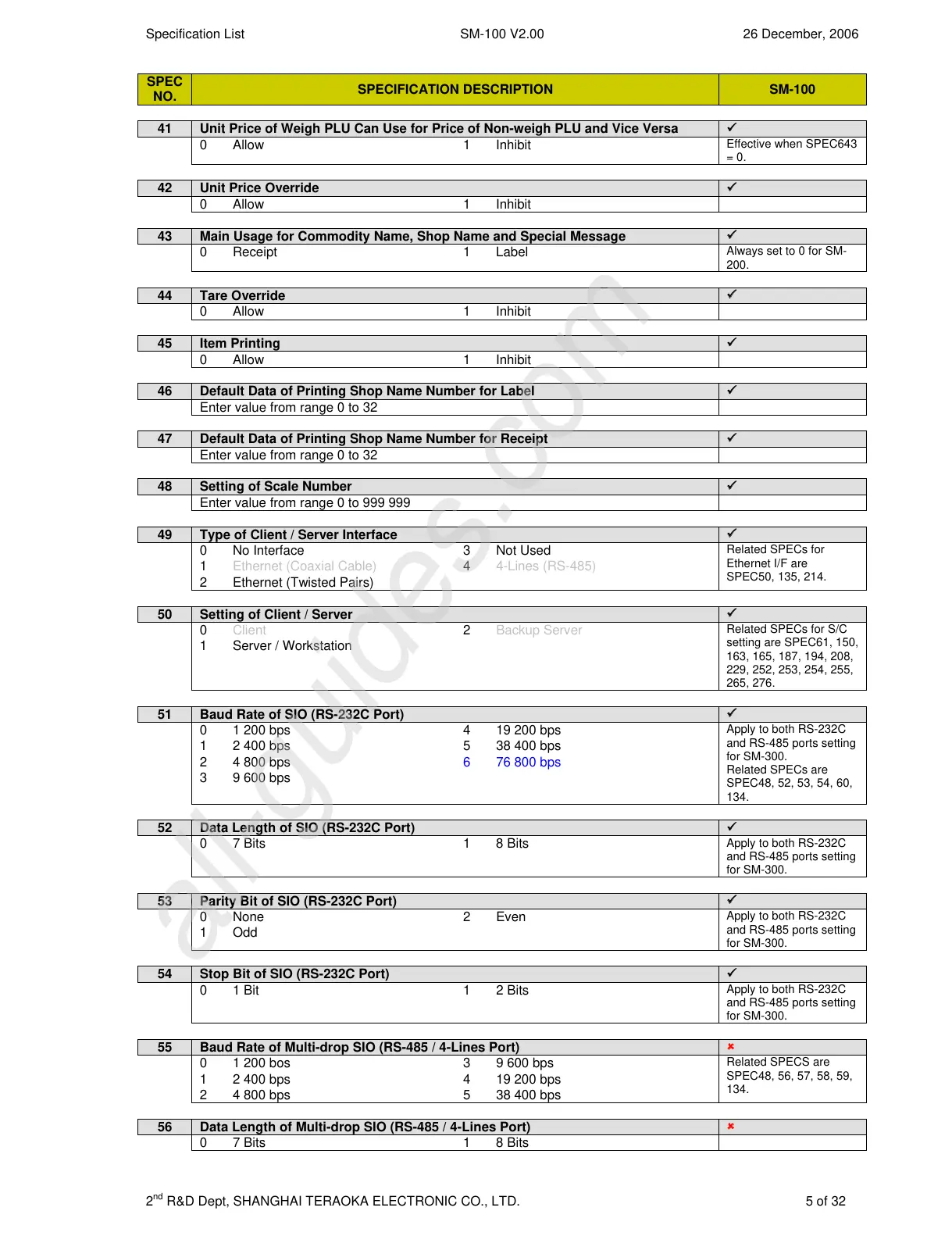

Specification List SM-100 V2.00 26 December, 2006
2
nd
R&D Dept, SHANGHAI TERAOKA ELECTRONIC CO., LTD. 5 of 32
SPEC
NO.
SPECIFICATION DESCRIPTION SM-100
41 Unit Price of Weigh PLU Can Use for Price of Non-weigh PLU and Vice Versa
X
0 Allow 1 Inhibit
Effective when SPEC643
= 0.
42 Unit Price Override
X
0 Allow 1 Inhibit
43 Main Usage for Commodity Name, Shop Name and Special Message
X
0 Receipt 1 Label
Always set to 0 for SM-
200.
44 Tare Override
X
0 Allow 1 Inhibit
45 Item Printing
X
0 Allow 1 Inhibit
46 Default Data of Printing Shop Name Number for Label
X
Enter value from range 0 to 32
47 Default Data of Printing Shop Name Number for Receipt
X
Enter value from range 0 to 32
48 Setting of Scale Numbe
r
X
Enter value from range 0 to 999 999
49 Type of Client / Server Interface
X
0 No Interface 3 Not Used
Related SPECs for
Ethernet I/F are
SPEC50, 135, 214.
1
Ethernet (Coaxial Cable) 4 4-Lines (RS-485)
2 Ethernet (Twisted Pairs)
50 Setting of Client / Serve
r
X
0
Client 2 Backup Server
Related SPECs for S/C
setting are SPEC61, 150,
163, 165, 187, 194, 208,
229, 252, 253, 254, 255,
265, 276.
1 Server / Workstation
51 Baud Rate of SIO (RS-232C Port)
X
0 1 200 bps 4 19 200 bps
Apply to both RS-232C
and RS-485 ports setting
for SM-300.
Related SPECs are
SPEC48, 52, 53, 54, 60,
134.
1 2 400 bps 5 38 400 bps
2 4 800 bps
6 76 800 bps
3 9 600 bps
52 Data Length of SIO (RS-232C Port)
X
0 7 Bits 1 8 Bits
Apply to both RS-232C
and RS-485 ports setting
for SM-300.
53 Parity Bit of SIO (RS-232C Port)
X
0 None 2 Even
Apply to both RS-232C
and RS-485 ports setting
for SM-300.
1 Odd
54 Stop Bit of SIO (RS-232C Port)
X
0 1 Bit 1 2 Bits
Apply to both RS-232C
and RS-485 ports setting
for SM-300.
55 Baud Rate of Multi-drop SIO (RS-485 / 4-Lines Port)
W
0 1 200 bos 3 9 600 bps
Related SPECS are
SPEC48, 56, 57, 58, 59,
134.
1 2 400 bps 4 19 200 bps
2 4 800 bps 5 38 400 bps
56 Data Length of Multi-drop SIO (RS-485 / 4-Lines Port)
W
0 7 Bits 1 8 Bits
