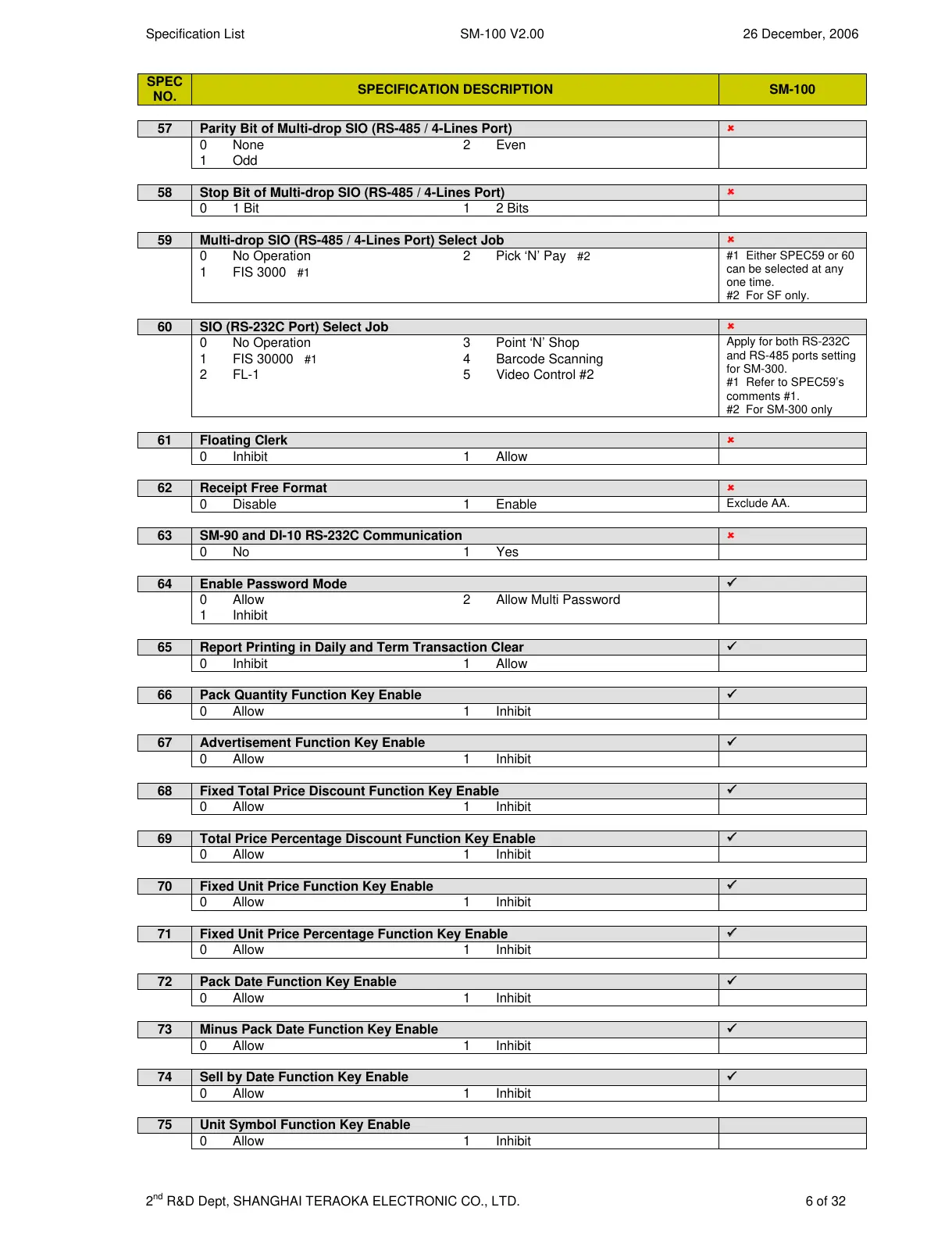

Specification List SM-100 V2.00 26 December, 2006
2
nd
R&D Dept, SHANGHAI TERAOKA ELECTRONIC CO., LTD. 6 of 32
SPEC
NO.
SPECIFICATION DESCRIPTION SM-100
57 Parity Bit of Multi-drop SIO (RS-485 / 4-Lines Port)
W
0 None 2 Even
1 Odd
58 Stop Bit of Multi-drop SIO (RS-485 / 4-Lines Port)
W
0 1 Bit 1 2 Bits
59 Multi-drop SIO (RS-485 / 4-Lines Port) Select Job
W
0 No Operation 2 Pick ‘N’ Pay #2
#1 Either SPEC59 or 60
can be selected at any
one time.
#2 For SF only.
1 FIS 3000 #1
60 SIO (RS-232C Port) Select Job
W
0 No Operation 3 Point ‘N’ Shop
Apply for both RS-232C
and RS-485 ports setting
for SM-300.
#1 Refer to SPEC59’s
comments #1.
#2 For SM-300 only
1 FIS 30000 #1 4 Barcode Scanning
2 FL-1 5 Video Control #2
61 Floating Clerk
W
0 Inhibit 1 Allow
62 Receipt Free Format
W
0 Disable 1 Enable
Exclude AA.
63 SM-90 and DI-10 RS-232C Communication
W
0 No 1 Yes
64 Enable Password Mode
X
0 Allow 2 Allow Multi Password
1 Inhibit
65 Report Printing in Daily and Term Transaction Clea
r
X
0 Inhibit 1 Allow
66 Pack Quantity Function Key Enable
X
0 Allow 1 Inhibit
67 Advertisement Function Key Enable
X
0 Allow 1 Inhibit
68 Fixed Total Price Discount Function Key Enable
X
0 Allow 1 Inhibit
69 Total Price Percentage Discount Function Key Enable
X
0 Allow 1 Inhibit
70 Fixed Unit Price Function Key Enable
X
0 Allow 1 Inhibit
71 Fixed Unit Price Percentage Function Key Enable
X
0 Allow 1 Inhibit
72 Pack Date Function Key Enable
X
0 Allow 1 Inhibit
73 Minus Pack Date Function Key Enable
X
0 Allow 1 Inhibit
74 Sell by Date Function Key Enable
X
0 Allow 1 Inhibit
75 Unit Symbol Function Key Enable
0 Allow 1 Inhibit
