003 Family Setup Guide116
Selecting MIDI Mode
To select MIDI mode, do one of the following:
Press the unlit MIDI Map A switch for the
MIDI Map A presets (A1–4).
– or –
Press the unlit MIDI Map B switch for the
MIDI Map B presets (B1–4).
When in MIDI mode, the switch LED lights for
the selected MIDI Map: A or B.
The last saved (or default) MIDI map is recalled.
To exit MIDI mode:
Press the lit MIDI Map switch (A or B).
If you edited a MIDI Map preset without saving,
you are prompted to save your changes (see
“Saving MIDI Map Presets” on page 121).
About Preset Pages
Each 003 MIDI Map preset includes two pages of
unique assignments for each mappable fader,
rotary encoder, and switch.
For example, the channel 1 fader can be as-
signed to continuous controller 21 on MIDI
channel 1 on page 1 and to continuous control-
ler 37 on MIDI channel 10 on page 2 of the same
preset. This lets you use the same controller for
two completely different mappings within the
same preset.
However, you will typically want to use the
same control for related functions (such as using
the faders to control volume on MIDI channels
1–8 on page 1 and on MIDI channels 9–16 on
page 2).
To switch between pages of a preset:
In MIDI mode, press the Bank switch. The
Bank switch LED is lit when on page 2 and not
lit when on page 1 of a preset.

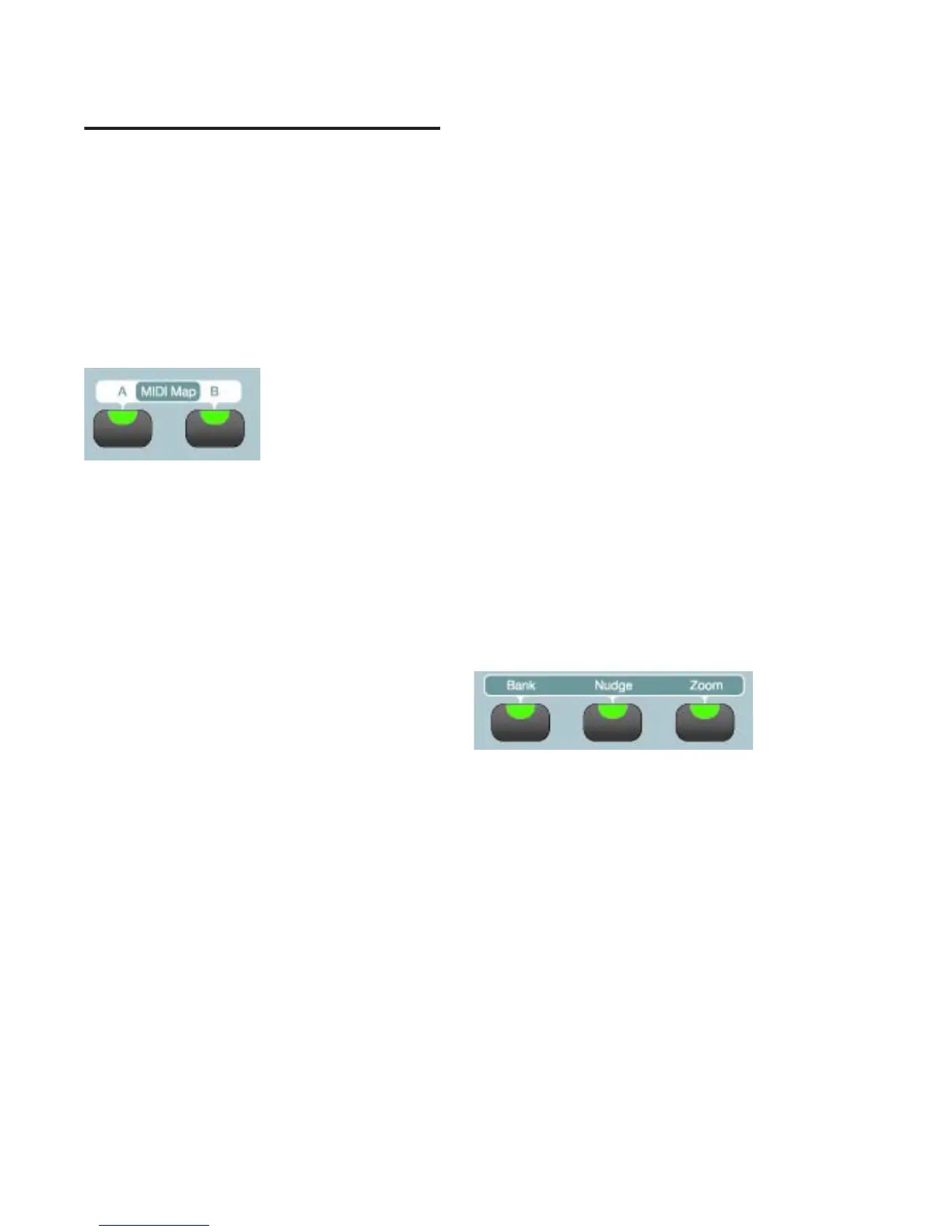

MIDI Map switches
Bank switch
To Next Page
