Chapter 6: 003 Rack Front Panel 55
chapter 6
003 Rack Front Panel
The 003 Rack front panel provides controls for Inputs 1–4, options for routing outputs and monitor-
ing alternate input sources, and indicators for connections status, sync source, and MIDI data.
Power Switch
The Power switch is located on the front panel.
Headphone Jacks
Headphone Output 1 and 2 jacks accept stan-
dard 1/4-inch stereo headphone connectors.
Mic/DI Input Controls
There are four high-quality preamplifiers with
adjustable gain and phantom power (switchable
in pairs, for Inputs 1–2 and Inputs 3–4). The
phantom power switches are on the back panel.
Inputs 1–4 show up as “Analog 1–4” in the de-
fault Pro Tools I/O Setup.
Inputs 1–4 have the following controls:
Input 1–4 Gain Controls Each knob adjusts gain
for the input, with a range of +15 dB to +60 dB
of gain.

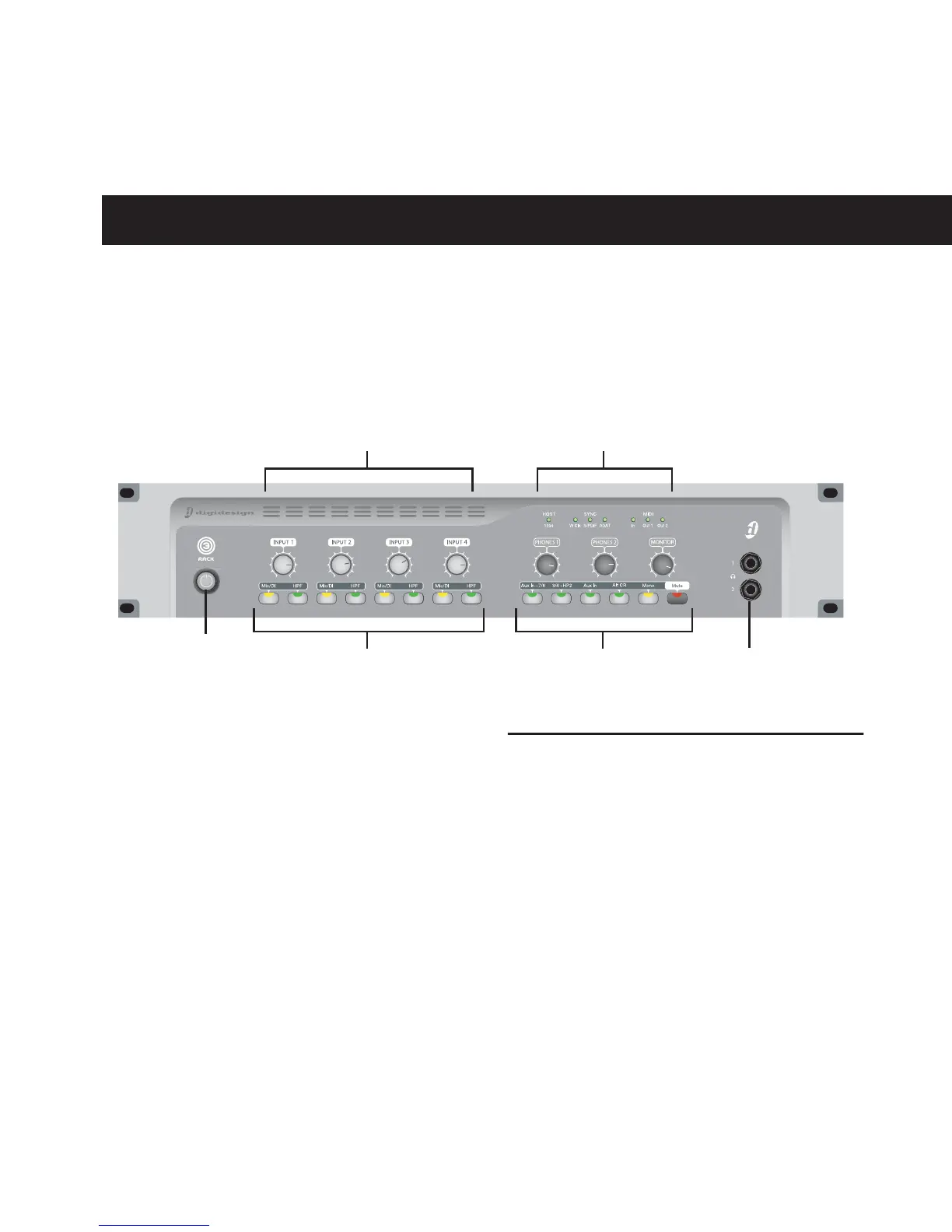

Figure 2. 003 Rack front panel
Mic/DI and HPF switches for Inputs 1–4
Power switch
Input 1-4 Gain control
Headphone jacks
Monitor section
Status indicators
