Fader Section
The Fader section consists of eight channel
strips, each with identical controls.
Each fader has a motorized touch-sensitive
fader, solo and mute switches, a multi-state
Channel Select switch, a rotary encoder and its
LED ring, and meter LEDs. The LCD display ded-
icates two rows, each with up to six characters,
to each channel strip.
Channel Strip Controls
Channel Faders
Each channel has its own 100 mm, servo-driven,
touch-sensitive, motorized fader for controlling
levels of audio, Auxiliary Input, Master Fader,
MIDI, and Instrument tracks.
Flip Mode
In Flip mode (Flip switch lit), rotary encoder
controls are taken over by the faders, which
makes the rotary encoders available to control
another parameter. For example, in normal
Send View (Send switch lit), rotary encoders
control send level, while faders control output
gain. In Flip mode, faders (instead of rotary en-
coders) control the send level parameters and
rotary encoders control pan.

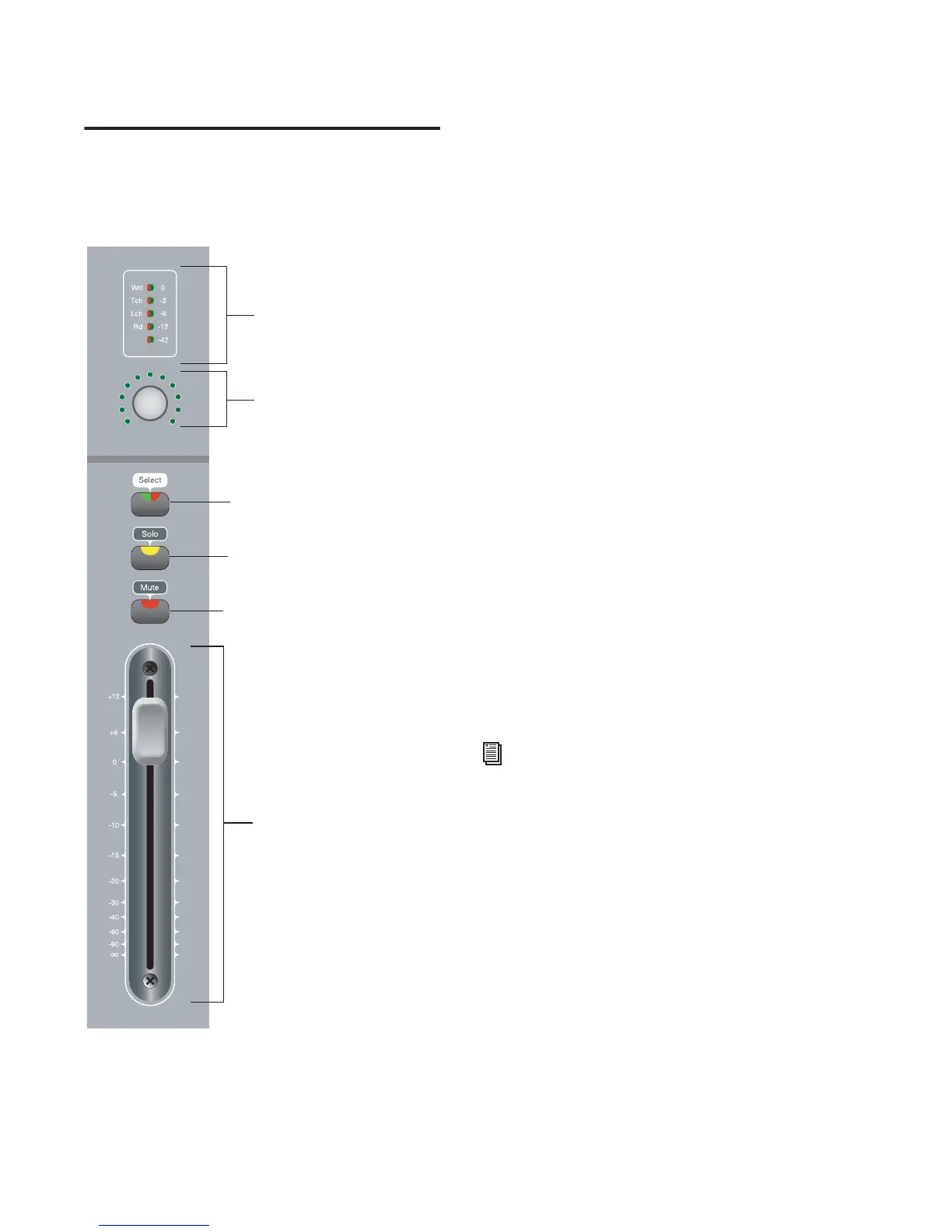

Channel strip in the Fader section
Channel Meter LEDs
Encoder/Meter LED ring
Channel Fader
Mute switch
Rotary Encoder and
Channel Select switch
Solo switch
For more information, see “Using Flip
Mode” on page 108.
