003 Family Setup Guide118
Mapping Controls
003 faders, rotary encoders, and switches can be
assigned, or mapped, to MIDI continuous con-
trollers (CC) and MIDI channels. As many as
eight presets (A1–4 and B1–4) can store unique,
custom MIDI maps, each with two pages of
unique MIDI assignments for each control.
Assignable Controls in MIDI Mode
Faders
Each fader can be mapped to No Assign or any
MIDI continuous controller (CC) and MIDI
channel. Minimum and maximum MIDI values,
as well as custom names, can be specified for
each fader.
Rotary Encoders
Each rotary encoder can be mapped to No As-
sign or any MIDI continuous controller (CC)
and MIDI channel. Minimum and maximum
MIDI values, as well as custom names, can be
specified for each rotary encoder.
Switches
Up to 45 switches and the footswitch on 003 can
be mapped to No Assign or any MIDI continu-
ous controller (CC) and MIDI channel. Switches
can also be set to MMC transport control mes-
sages (Rewind, Fast Forward, Stop, Play, and
Record). Custom names can be specified for
each switch.
Switches can be set to Momentary or Latch
mode (see “Momentary or Latch Mode” on
page 120).
The following switches are assignable controls:
• Channel Mute switches
• Channel Solo switches
• Channel View switches
Channel View switches are also used to navi-
gate, select, and save MIDI mode presets.
• Console View switches
• Record Arm switch
• Arrow keys
• Transport controls
Transport controls are mapped to standard MIDI
Machine Control (MMC) messages (RW, FF, ST,
PL, and RC) by default, but can be re-assigned to
any CC number.
• Footswitch

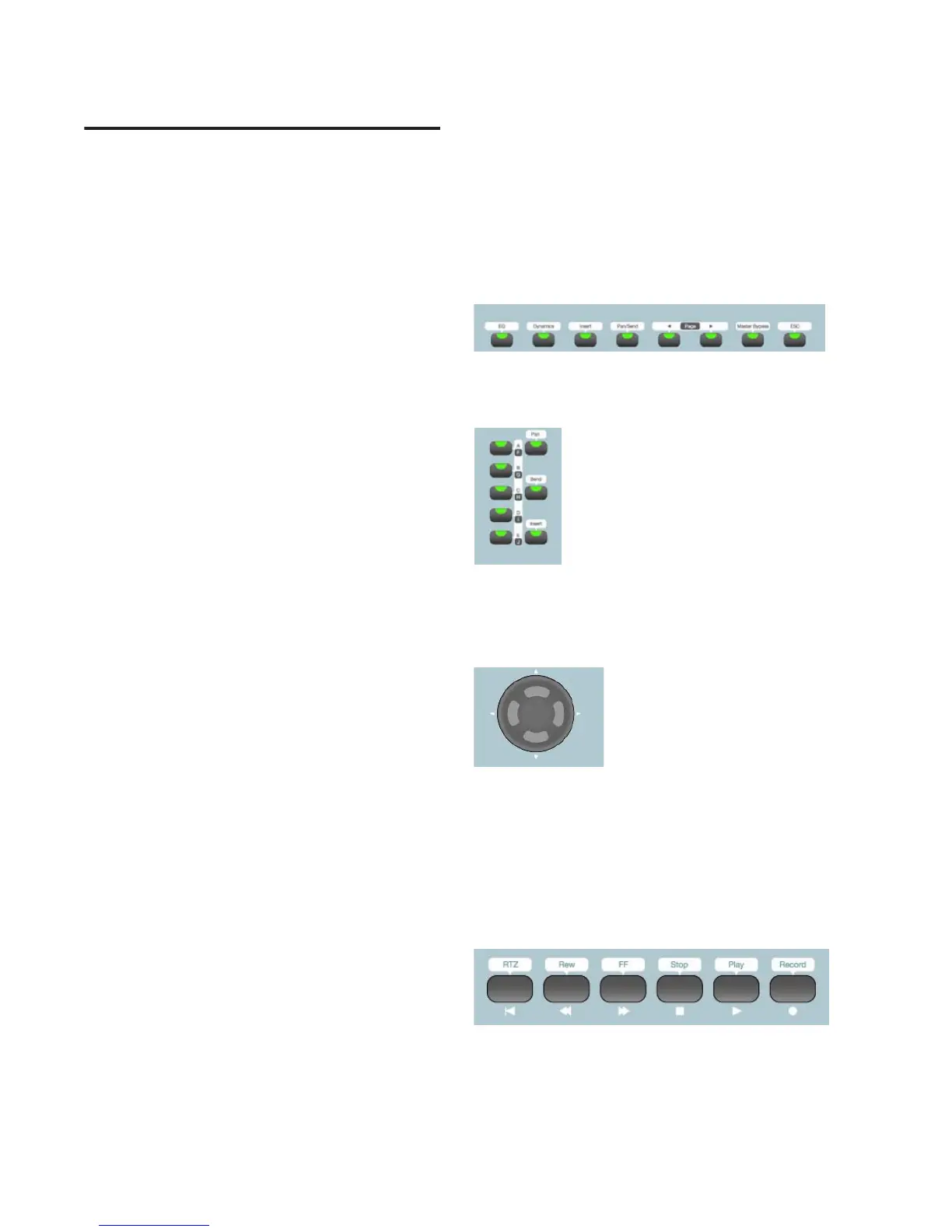

Figure 1. Channel View switches
Console View selectors
Arrow keys
Transport controls
To Next Page
