Chapter 8: 003 Rack+ Front Panel 65
chapter 8
003 Rack+ Front Panel
The 003 Rack+ front panel provides controls for Inputs 1–8, options for routing outputs and moni-
toring alternate input sources, and indicators for connections status, sync source, and MIDI data. It
also includes a single 1/4-inch DI input linked to channel 1.
Power Switch
The Power switch is located on the front panel.
Headphone Jacks
Headphone output jacks 1 and 2 accept stan-
dard 1/4-inch stereo headphone connectors.
Front Panel DI 1 Input
The front panel DI 1 input routes to Input
Channel 1 and accepts 1/4-inch balanced (TRS)
and unbalanced (TS) cables. This input super-
sedes the rear panel channel 1 Line/DI input.
The Line-DI switch for Channel 1 must be en-
gaged (see “Line-DI” on page 66).

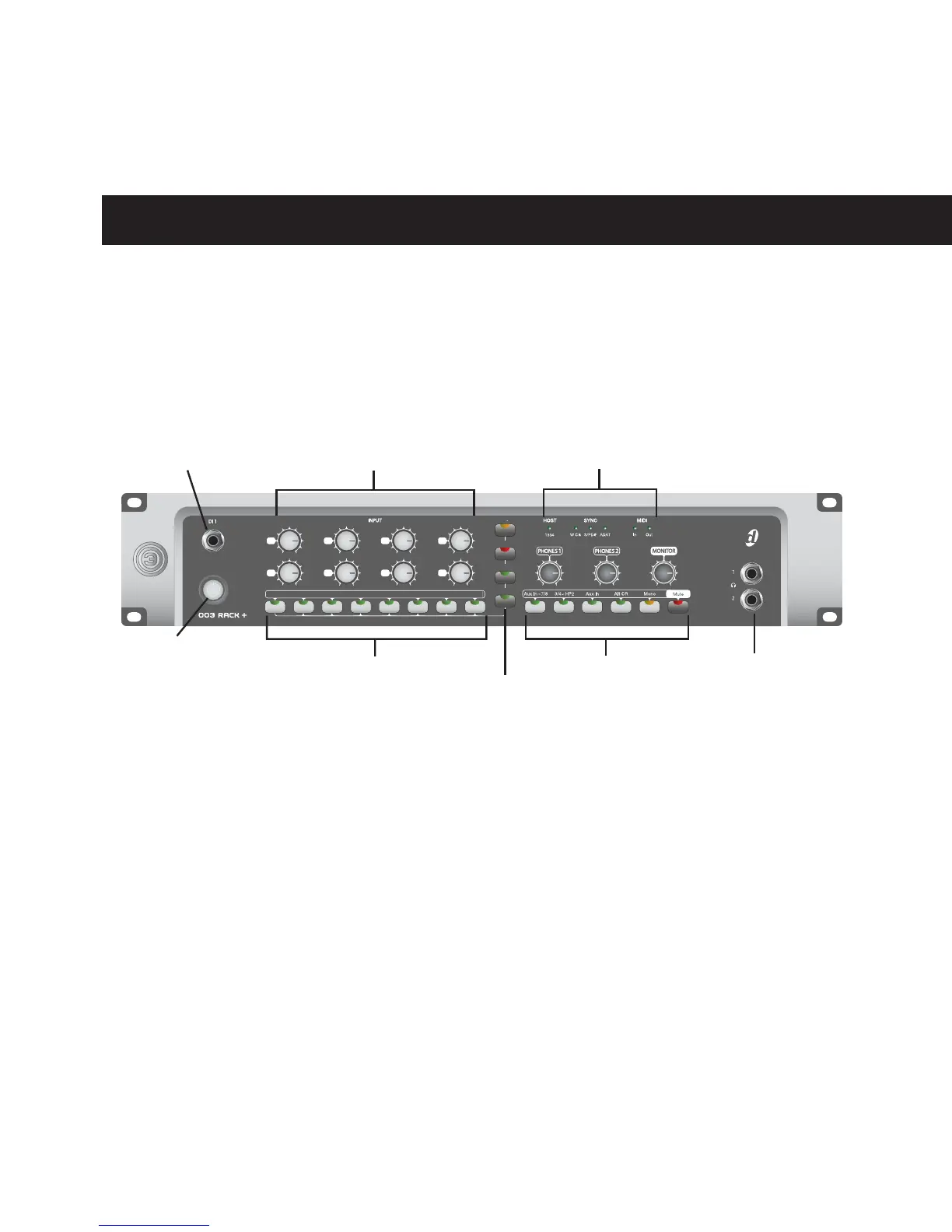

Figure 4. 003 Rack+ front panel
12345678
HPF
Pad
48V
Line
DI
1 3 5 7
2 4 6 8
Input Channel Gain Controls
Headphone jacks
Monitor section
Status indicators
Power switch
Input Channel Select switches
Line-DI, 48V, HPF, and Pad switches
Front Panel DI 1 input
