Chapter 10: Making Studio Connections 77
Connecting Audio Inputs
003 family inputs support microphones, guitars,
keyboards, and other types of instruments.
003 family interfaces have eight analog inputs.
On the 003 and 003 Rack, one set of inputs is la-
beled Mic Inputs 1–4 and DI Inputs 1–4, and the
other four are labeled Analog 5–8.
On the 003 Rack+, XLR mic inputs are labeled 1-
8, and the combination Line/DI 1/4-inch inputs
are labeled 1-8.
For stereo inputs, use an odd/even pair of inputs
(for example, Input 5 for the left input, and In-
put 6 for the right input.
You cannot use both a mic input and DI input
with the same input number at the same time.
For information about connecting specific au-
dio sources, see “Connecting a Microphone” on
page 78, and “Connecting Instruments to 003
Family Interfaces” on page 81.

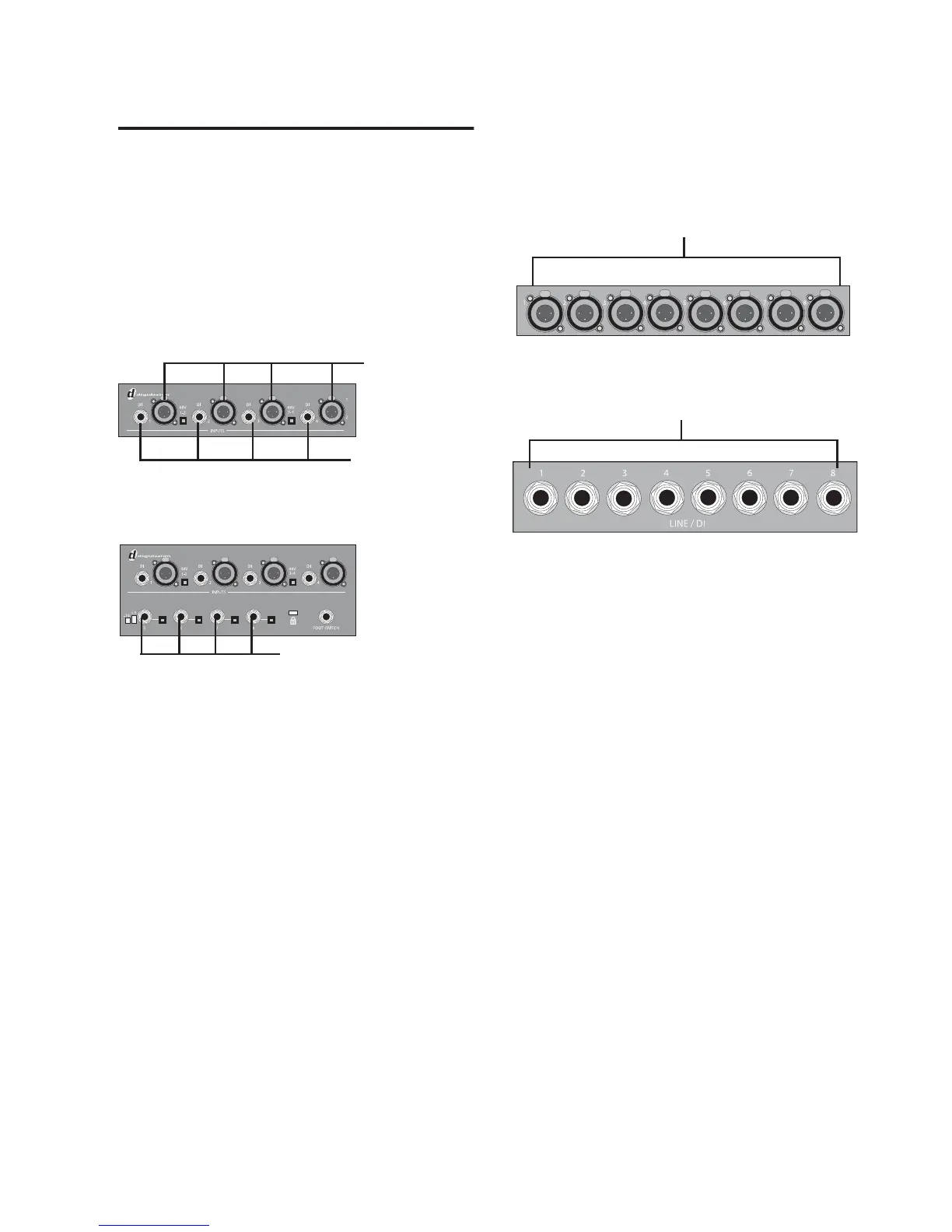

Four Mic and DI Inputs (003 and 003 Rack shown)
Four Analog Inputs (003 and 003 Rack shown)
Mic Inputs 1-4
DI Inputs 1-4
Analog Inputs 5-8
Mic Inputs 1-8 (003 Rack+ shown)
Line/DI Inputs 1-8 (003 Rack+ shown)
Mic Inputs 1-8
Line/DI inputs 1-8
