2 Do one of the following, depending on your
device:
• If using the 003 or 003 Rack, press the
Mic/DI switch (located on the top panel of
the 003, and on the front panel of the 003
Rack) for the corresponding input so that it
is lit (yellow).
– or –
• If using the 003 Rack+, press the Input
Channel Select switch (located on the front
panel) for the corresponding input, and
press the Line-DI switch so that it is lit (or-
ange).
3 When Pro Tools is launched and the input is
routed to a Pro Tools track, you can adjust the
input level with the Input Gain Control knob.
To use a keyboard or mixer with 003 or 003 Rack:
1 On the back of the 003 or 003 Rack, plug your
keyboard, mixer, or other audio source into any
of the DI inputs or Analog Inputs by doing one
of the following:
• Use Analog Inputs 5–8 if you need to select
–10 dBV or +4 dBu operating level for your
keyboard.
– or –
• Use DI Inputs 1–4 if Analog Inputs 5–8 are
unavailable, or if you do not need to set the
operating level. DI Inputs 1–4 are available
even if a mic is connected to Mic Inputs
1–4 (although both cannot be active at the
same time).
For stereo inputs, (such as a stereo keyboard or
the stereo output from a mixer), use an
odd/even pair of inputs. For example, connect
the left channel to DI Input 1, and right channel
to DI Input 2.
From the back, the inputs are numbered left to
right, so DI Input 1 is the leftmost input.

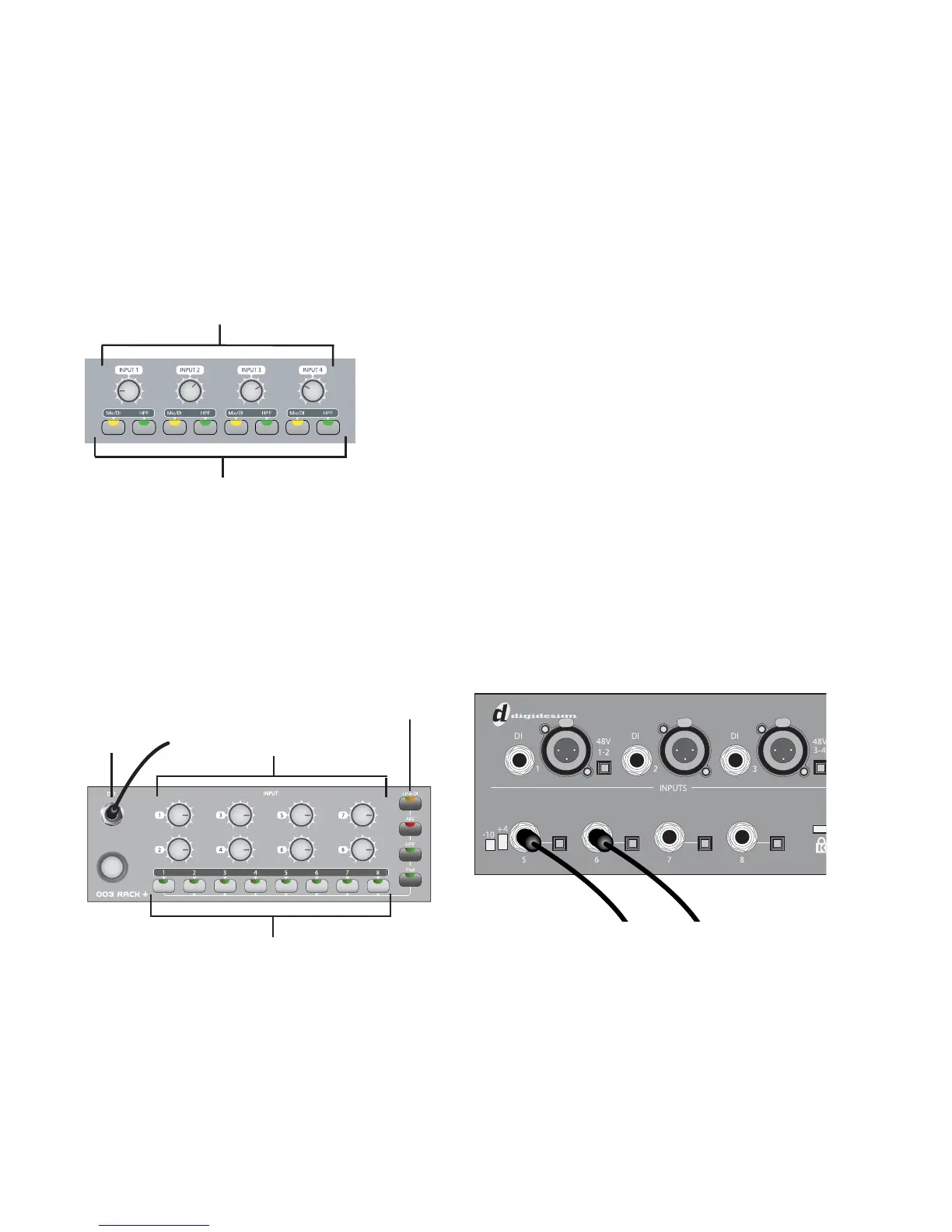

003 and 003 Rack Mic/DI switches
003 Rack+ with 1/4-inch cable plugged into front panel
DI 1 input
Input 1-4 Gain control
Mic/DI and HPF switches for Inputs 1–4
Input Channel Select switches
Line-DI switch
Input 1-8 Gain control
DI 1 input
Stereo keyboard plugged into Analog Inputs 5–6
