Monitor Section Controls
The Monitor section includes a full set of controls for the control room monitoring, headphone/cue, and talkback/listenback
sections of D-Control. All input and output connections to the D-Control monitoring system are made on the XMON interface,
which is connected to the D-Control console with the XMON cable, and remotely controlled from this section.

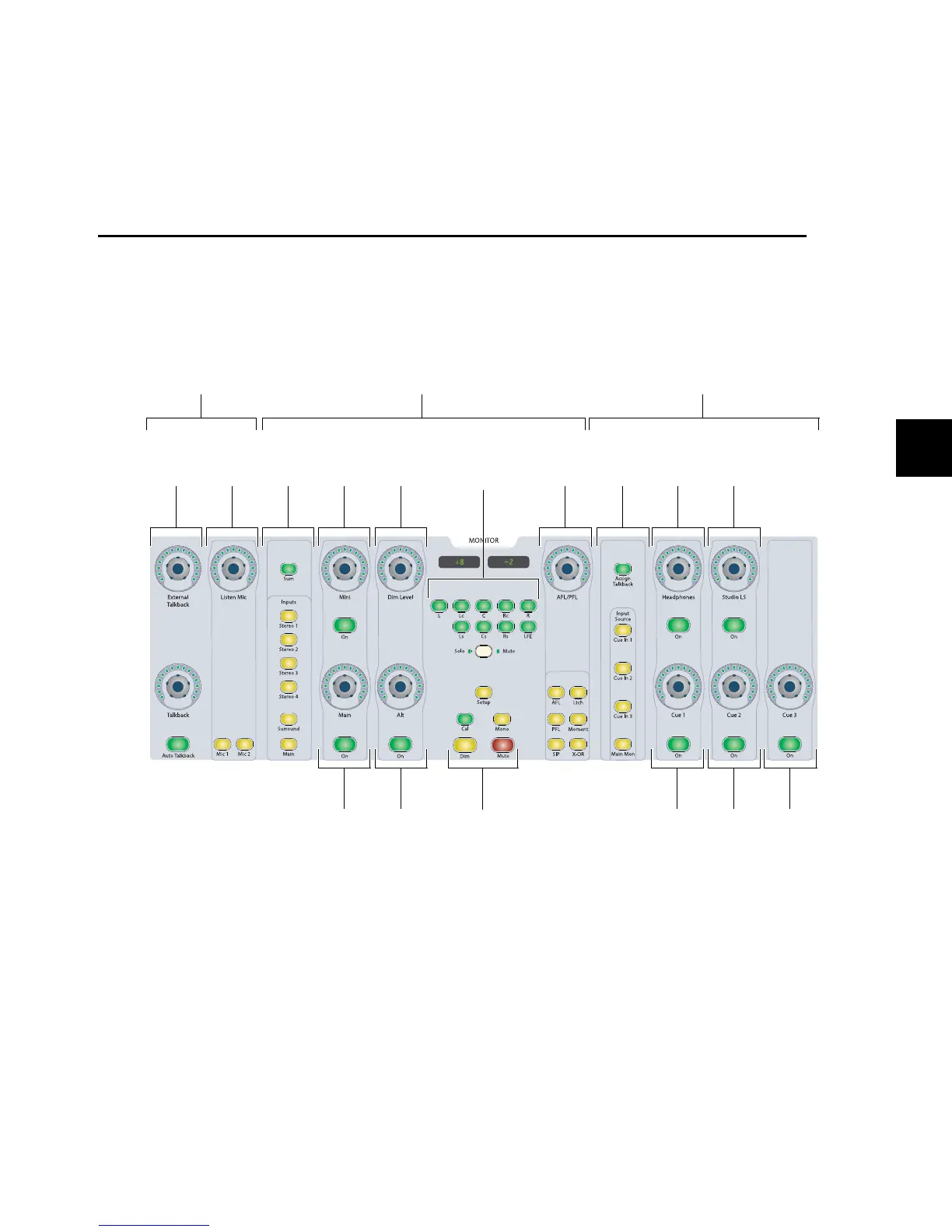

D-Control Monitor section
Talkback Listen Mic
Control Room
controlscontrols
Output Channel SelectMini Monitor
controls
Dim Level
control
Main
Monitor
controls
Alt
Monitor
controls
AFL/PFL
controls
Cue Input
Source
selectors
Headphone
controls
Studio
Loudspeaker
controlsand Mode switches
Cue 1
controls
Cue 2
controls
Cue 3
controls
Monitor
Mode
controls
Input
Source
selectors
Talkback/Listenback
controls
Control Room
controls
Headphone/Cue
controls
