Chapter 4: Connecting D-Control 35
Audio Connections
D-Control monitoring is based on the XMON analog interface, which is remotely controlled from the D-Control monitoring sec-
tion. All external analog audio inputs and outputs for control room monitoring and studio communication are connected to the
XMON interface.
XMON provides 18V phantom for its three external mic inputs (External Talkback Mic, Listen Mic 1, Listen Mic 2).
All audio connections are made with standard DB-25 connectors. The back panel of the XMON is shown in Figure 49.
XMON Monitoring System Connection
D-Control connects to XMON with a single 15-pin cable. A 50-foot (15.25 m) cable is included with the D-Control Main Unit.
The system supports up to an 80-foot (24.5 m) cable.
To connect the XMON to D-Control:
1 Connect the included AC power cord to the back panel of the XMON and to a power source. A surge protected power source
is highly recommended.
2 Connect one end of the included XMON cable to the Control Surface port on your XMON unit, and the other end to the 15-pin
Control port on the back panel of the D-Control Main Unit.

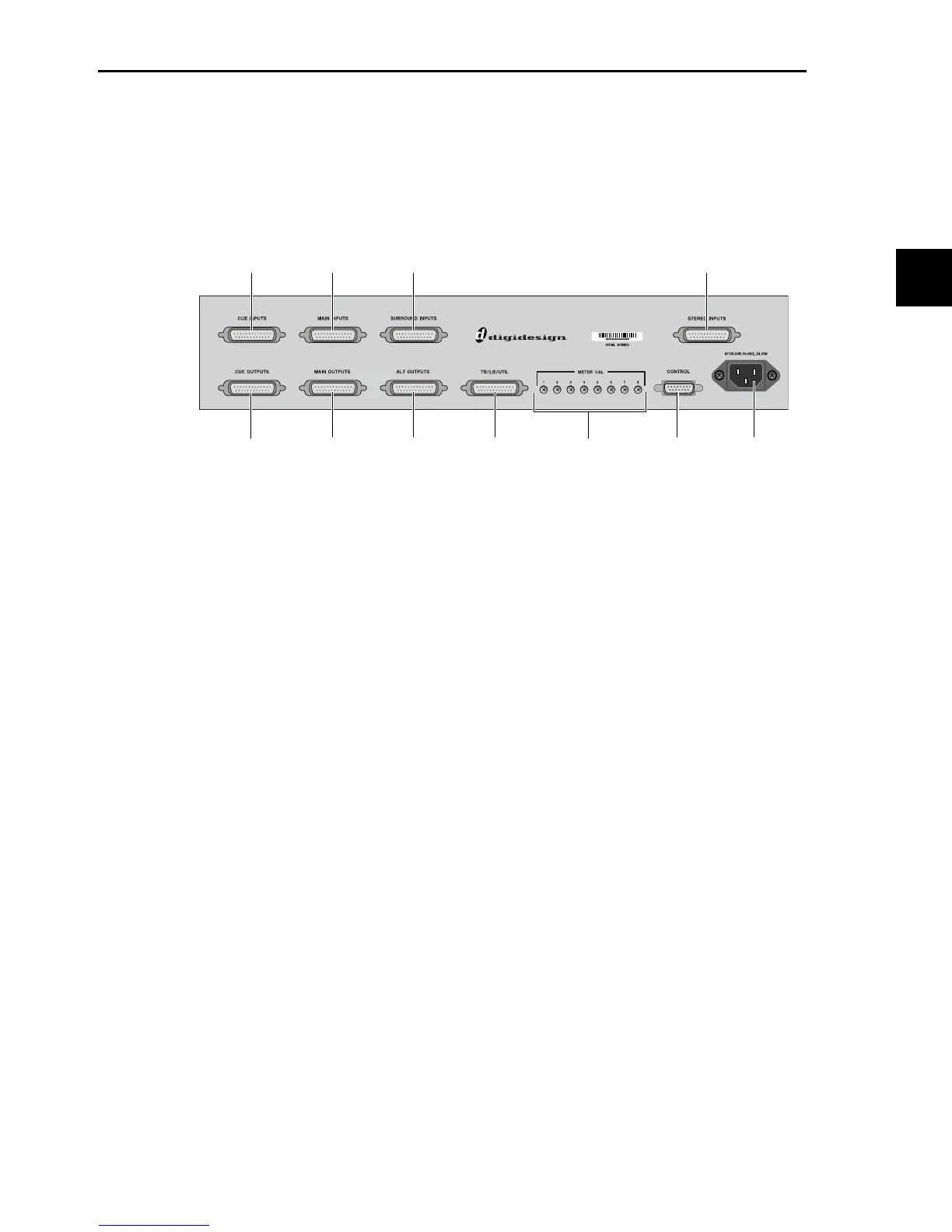

Figure 49. XMON back panel
Cue Inputs
Cue Outputs
Main Inputs Surround Inputs Stereo Inputs
Main Outputs Alt Outputs Talkback/ Meter Calibration Control Surface AC Power
Listenback/
Utility
Screws
