Chapter 3: Setting Up D-Control 27
Installing the Plastic Leg Caps
You can install the D-Control plastic leg caps at any time.
To install the plastic leg caps:
1 Place the front leg caps over each leg. Attach each front cap
with the screws indicated in Figure 34.
2 Place the rear leg caps over each leg. Attach each rear cap
with the screws indicated in Figure 35.
Installing a Video Display
D-Control gives you two options for using a video display:
Free-Standing Display The display shelf on D-Control can sup-
port a free-standing flat screen display.
Arm-Mounted TFT Display Using the video display arm in-
cluded with the Main Unit, you can mount a TFT-type display
on D-Control.
General instructions for installing each display are given in
the following sections. For details on setting up a particular
display, refer to the manufacturer’s instructions.
Installing a Free-Standing Display
The display shelf on the D-Control Main Unit can support a
free-standing flat screen display (such as an Apple Cinema dis-
play) up to a 20-inch screen size. (Larger displays may obstruct
the view of the meter bridge on the Main Unit.)
To install a free-standing display:
1 Remove the display shelf panel from the Main Unit.
To protect the plastic leg caps from damage, install them
last, after you have finished installing and configuring
any other D-Control components and moved the system
into place. If necessary, continue with other installations
and return to these steps when you are finished.

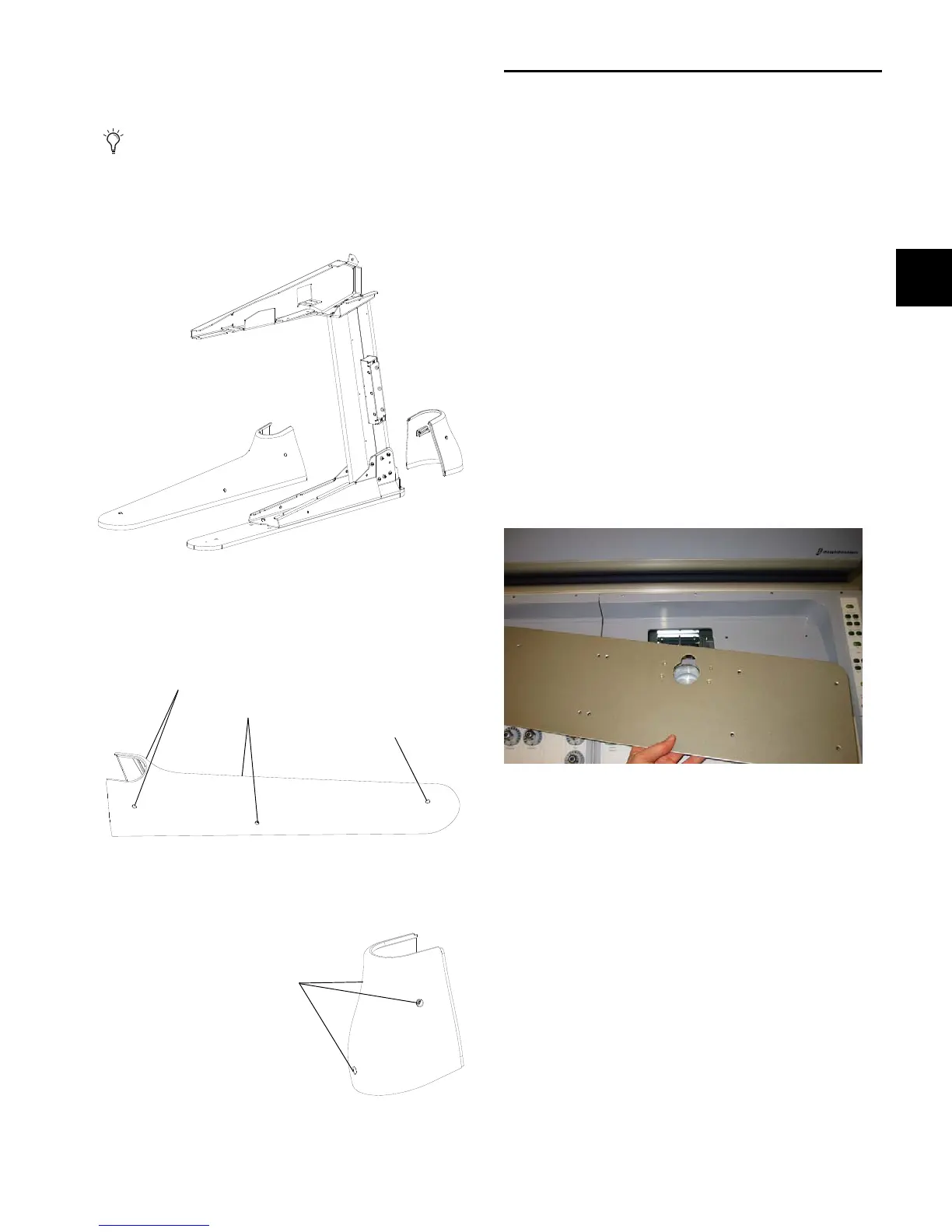

Figure 33. Plastic leg cap placement
Figure 34. Attaching the plastic front leg caps
Figure 35. Attaching the plastic rear leg caps
(2) #10-32 x 3/4-inch socket head
(1) #10-32 x 1/2-inch socket head
cap screws
cap screw
(2) #10-32 x 1-inch socket head
cap screws
(3) #10-32 x 1-inch socket head cap screws
Figure 36. Removing the display shelf from the Main Unit
