D-Control Guide26
Installing the Plastic Side Caps
With the D-Control units in place and attached to the stand
rails, you are now ready to install the plastic side caps.
To install the plastic side caps:
1 On each side of the system, locate the pair of #6-32 machine
screws, arranged one above the other, near the front of each
unit. Remove the lower of the two screws from each side of the
unit.
2 Locate the two small blue rubber meter break caps and in-
stall them in the inside of the plastic side caps.
3 Place the plastic side caps over each side of the unit, starting
by hooking the front of each cap around the front part of the
stand leg, then sliding the cap backward into place. The holes
on the cap should line up with holes on the stand.
4 Attach each plastic side cap with the screws indicated in Fig-
ure 32. Leave the screws loose until you have placed all of the
screws, then go back and tighten all of the screws carefully.
Do not use a power screwdriver or similar high-torque
device to attach the plastic side caps, as it may distort
or damage the caps.

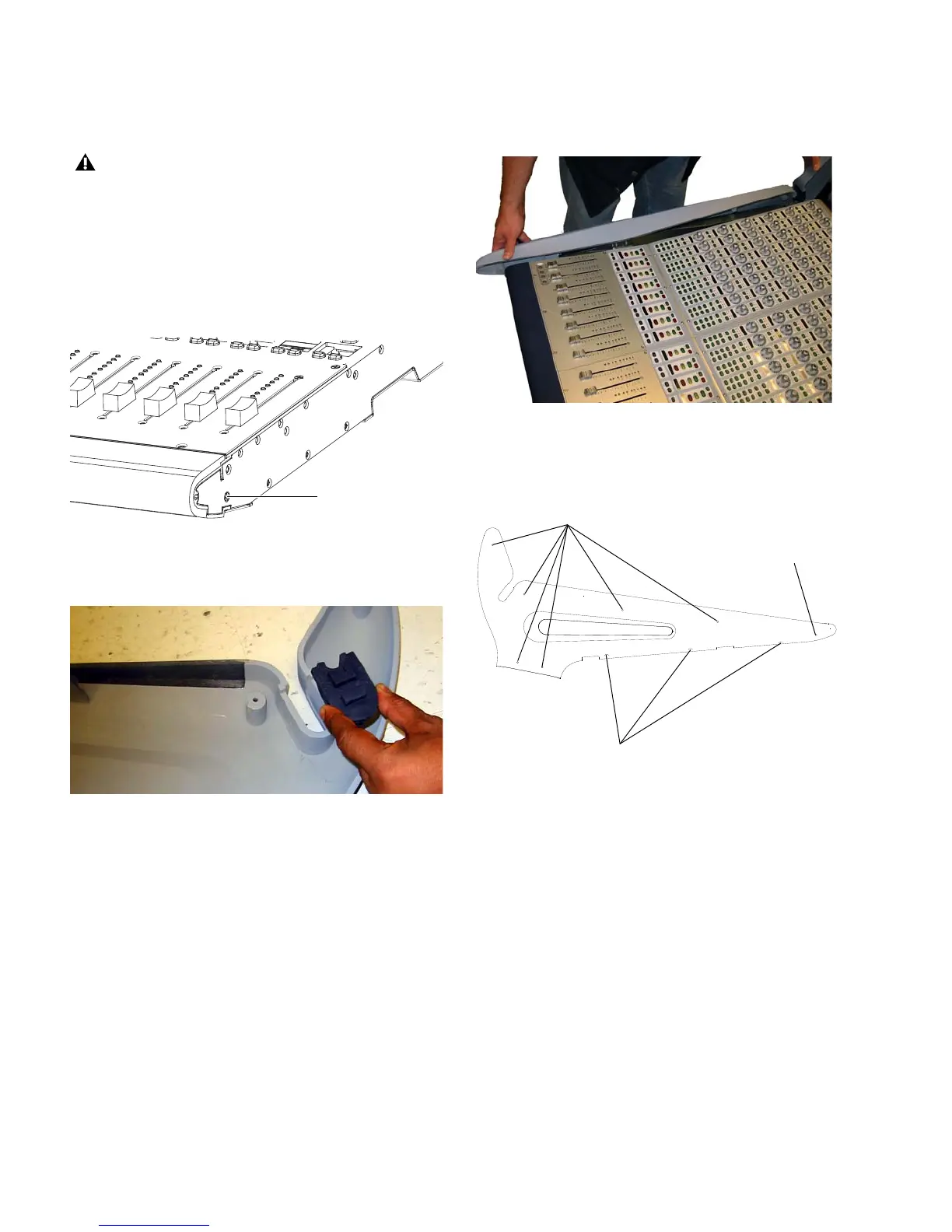

Figure 29. Removing the machine screw from a unit
Figure 30. Installing a meter break cap in a plastic side cap
Figure 31. Placing a plastic side cap on the stand
Figure 32. Attaching the plastic side caps
(6) #10-32 x 1-inch socket head cap screws
(3) #10 x 3/4-inch Phillips pan head screws
(1) #6-32 x 7/16-inch Phillips pan head
machine screw
