XMON Back Panel
The back panel of the XMON interface includes connectors for all external analog audio inputs and outputs for D-Control. See
“Audio Connections” on page 35.

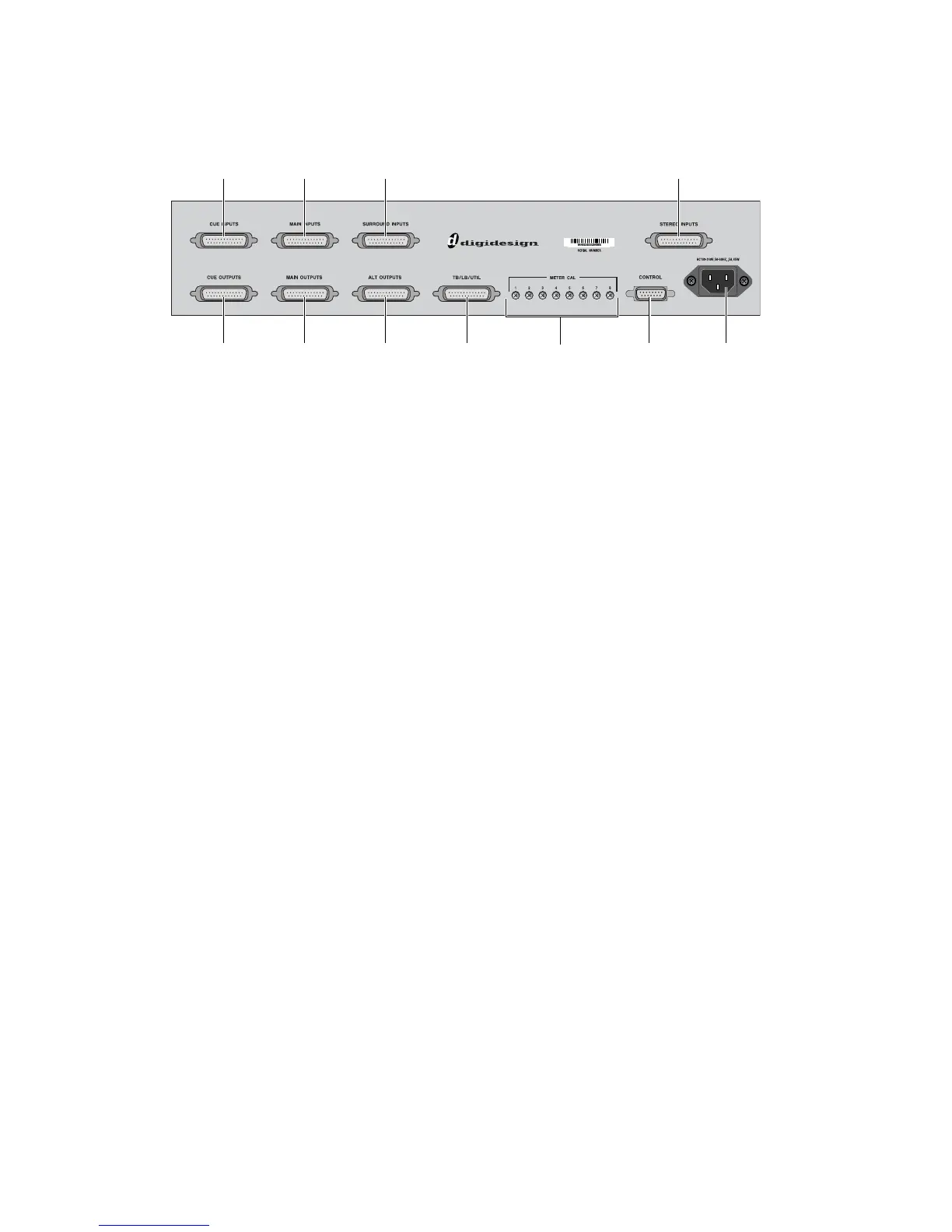

Figure 7. XMON back panel
Cue Inputs
Cue Outputs
Main Inputs Surround Inputs Stereo Inputs
Main Outputs Alt Outputs Talkback/ Meter Calibration Control Surface AC Power
Listenback/
Utility
Screws
