Chapter 5: Mbox 2 Mini Hardware Overview 47
chapter 5
Mbox 2 Mini Hardware Overview
Mbox 2 Mini Front Panel Features
The Mbox 2 Mini front panel provides the following features:
Headphone Output
Use the Headphone Output to connect a stereo headphone with a 1/4-inch stereo connector.
Headphone/Monitor Output Level
The Headphone/Monitor Output knob adjusts the output level of the Headphone Output and
Mon Out (Monitor Output). In Pro Tools, this is the signal that is routed to Outputs 1–2.

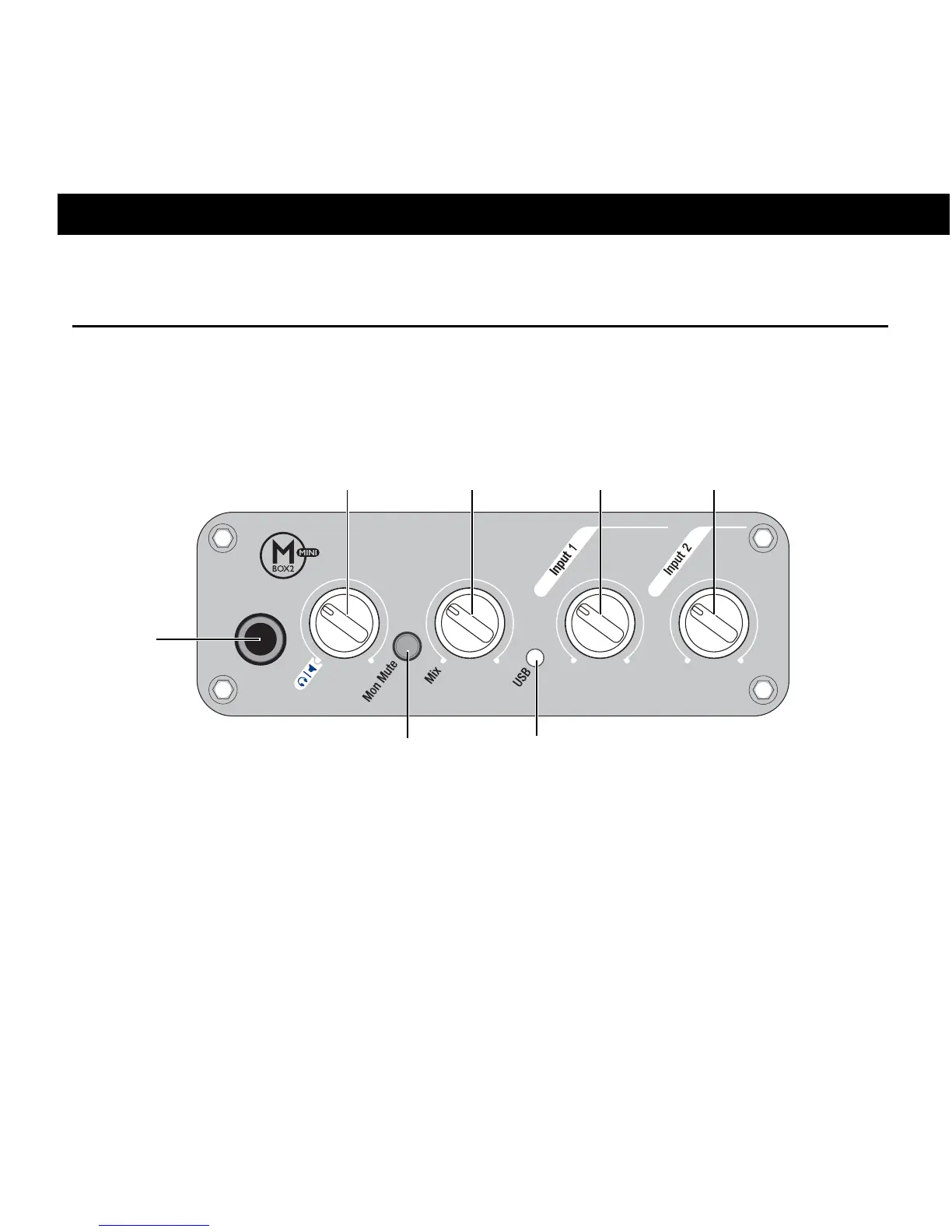

Figure 1. Mbox 2 Mini front panel
USB
Headphone/Monitor
Headphone
LED
Output Level
Output
Input 1
Gain
Input 2
Gain
Monitor Mute
Mix (Ratio)
