Mbox 2 Mini Back Panel Features
The Mbox 2 Mini back panel provides the following features:
Input 1 Section
Mic and Line/DI Inputs
The Input 1 section includes Mic (XLR) and Line/DI inputs.
The Line/DI input accepts line level signals, instruments, and other 1/4-inch TRS (Tip-Ring-
Sleeve) or TS (Tip-Sleeve) connections.
On the front panel, the input signal is adjusted by the Input 1 Gain control. The source (Mic
or Line/DI) is chosen using the Mic/DI selector on the back panel.

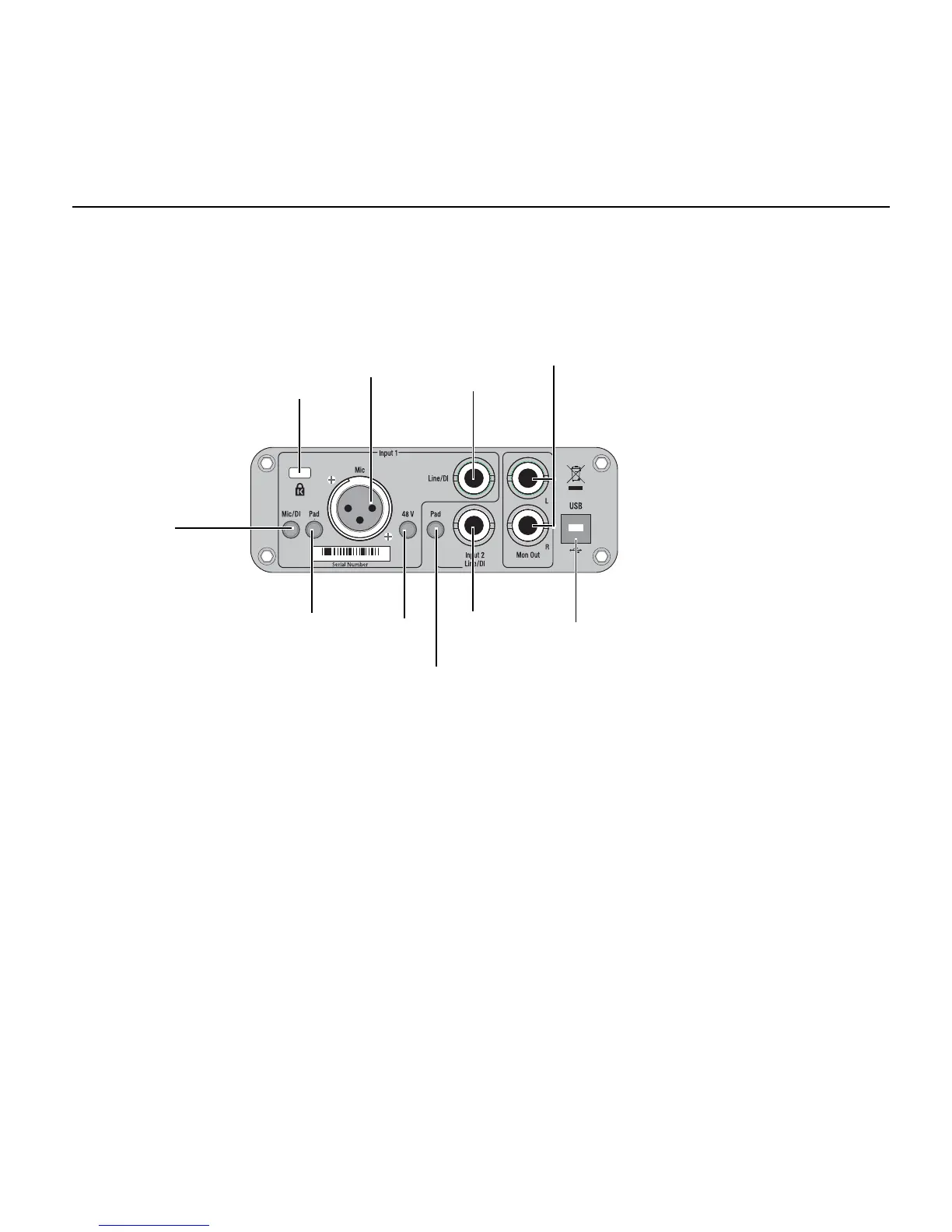

Figure 2. Mbox 2 Mini back panel
Pad
Mic
Phantom
Power
Line/DI
Input 2
Line/DI
Input 1
Pad
Monitor
Outputs
Input
Kensington
Lock port
Mic/DI
USB
port
