DG-BG4100NU User Manual
79
QoS

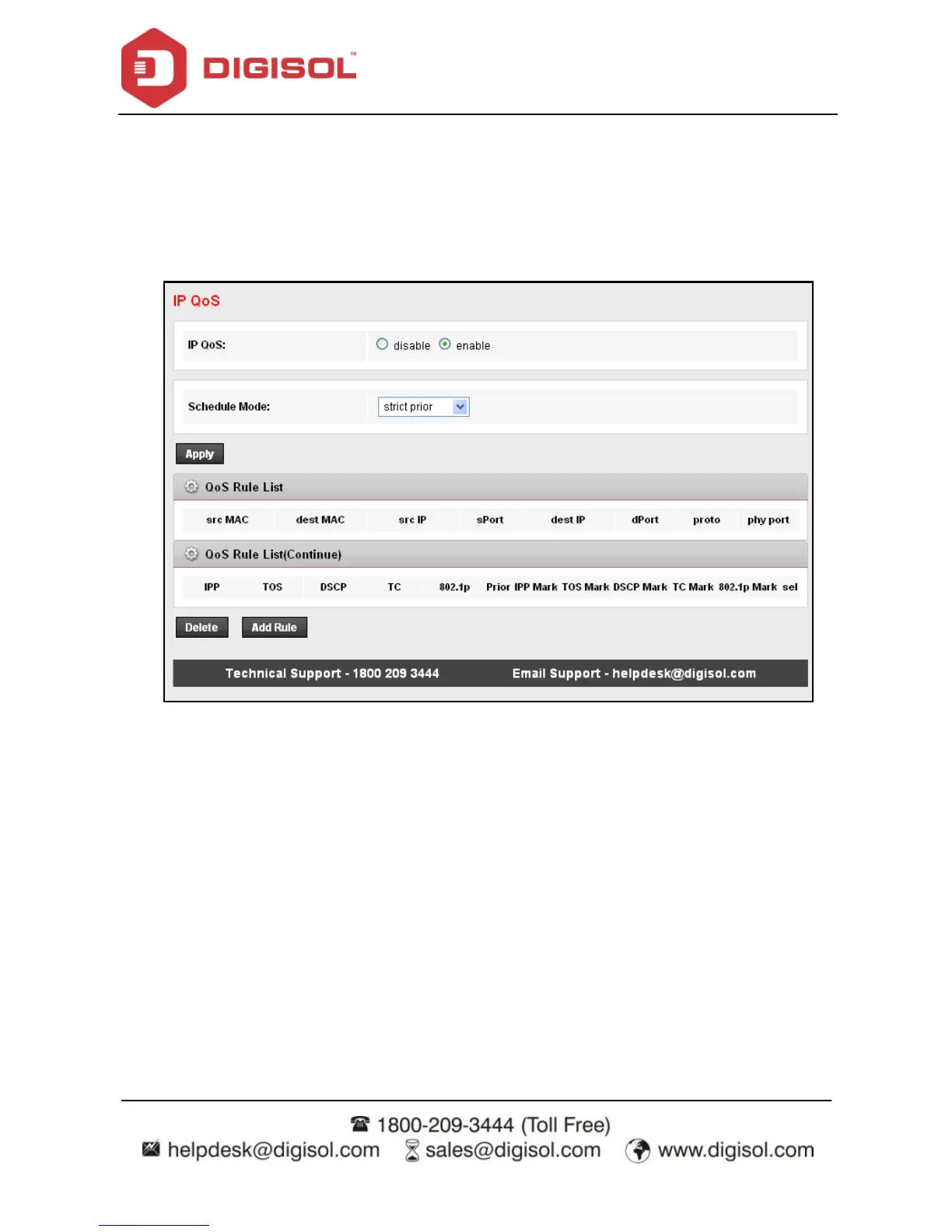

Choose Advanced > QoS, and the page shown in the following figure appears. Entries in the
QoS Rule List are used to assign the precedence for each incoming packet based on
physical LAN port, TCP/UDP port number, source IP address, destination IP address and
other information.
Enable IP QoS and click Apply to enable IP QoS f unction.
Click add rule to add a new IP QoS rule. The screen shown below will appear.
