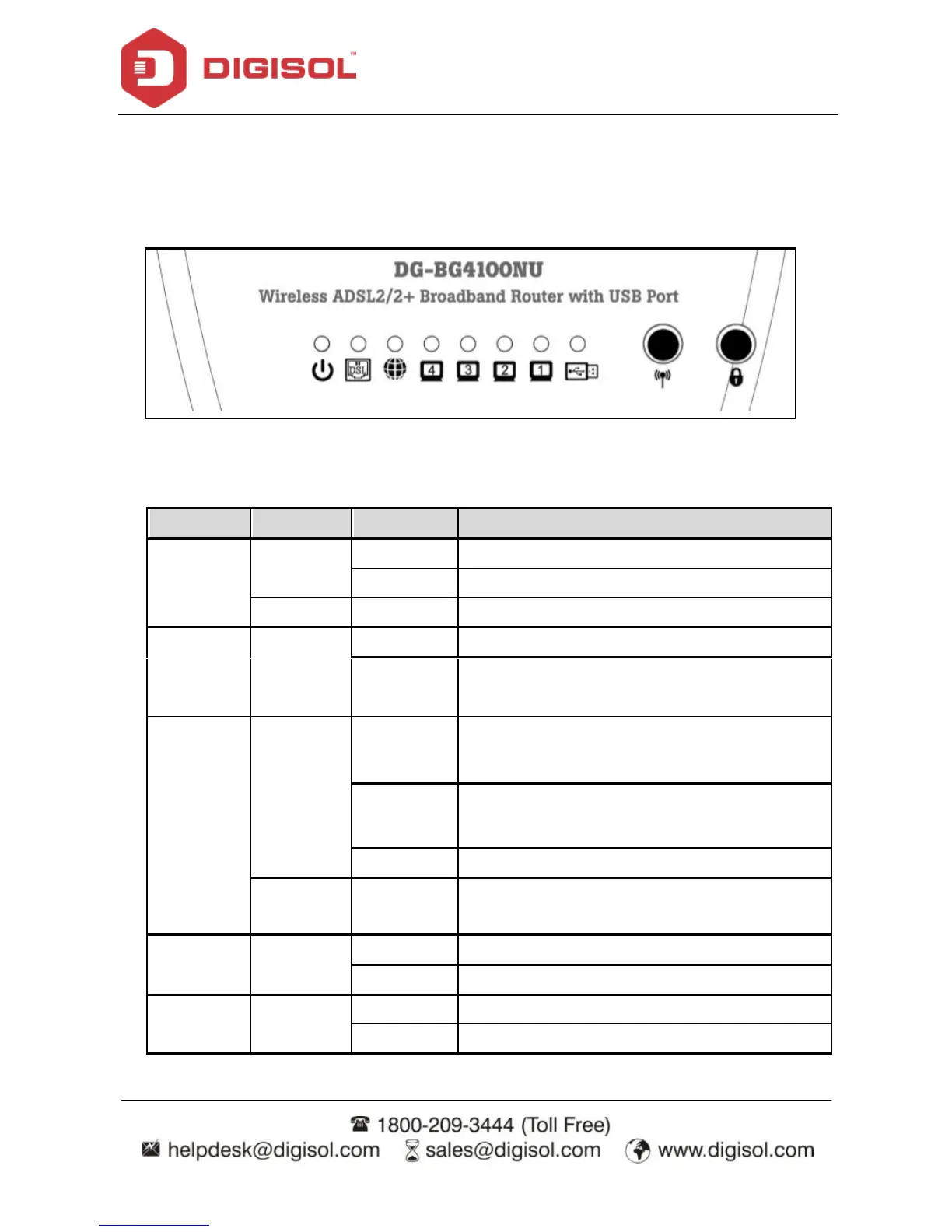

1.4 LEDs and Interfaces
Top Panel
The following table describes the LEDs of the dev ice.
LEDs
Color
Status
Description
Power
Red
On
Dev ice is initializing or initialization has f ailed.
Off
Power is off.
Green
On
Power is on.
DSL
Green
On
Physical link is up
Blinking
ADSL handshaking process is on or ADSL line
unplugged.
Internet
Green
On
Internet connection is established.
Blinking
Data is being transmitted or received.
Off
Dev ice is not connected to internet.
Red
On
PPPoE/PPPoA username-password not set or
wrong.
LAN
1/2/3/4
Green
On
PC is connected to LAN port
Off
PC is unplugged/not connected.
USB
Green
On
USB device is plugged.
Off
USB device is not plugged.
