DG-BG4300NU User
Manual
107
4.6.2.6 Port Trigger

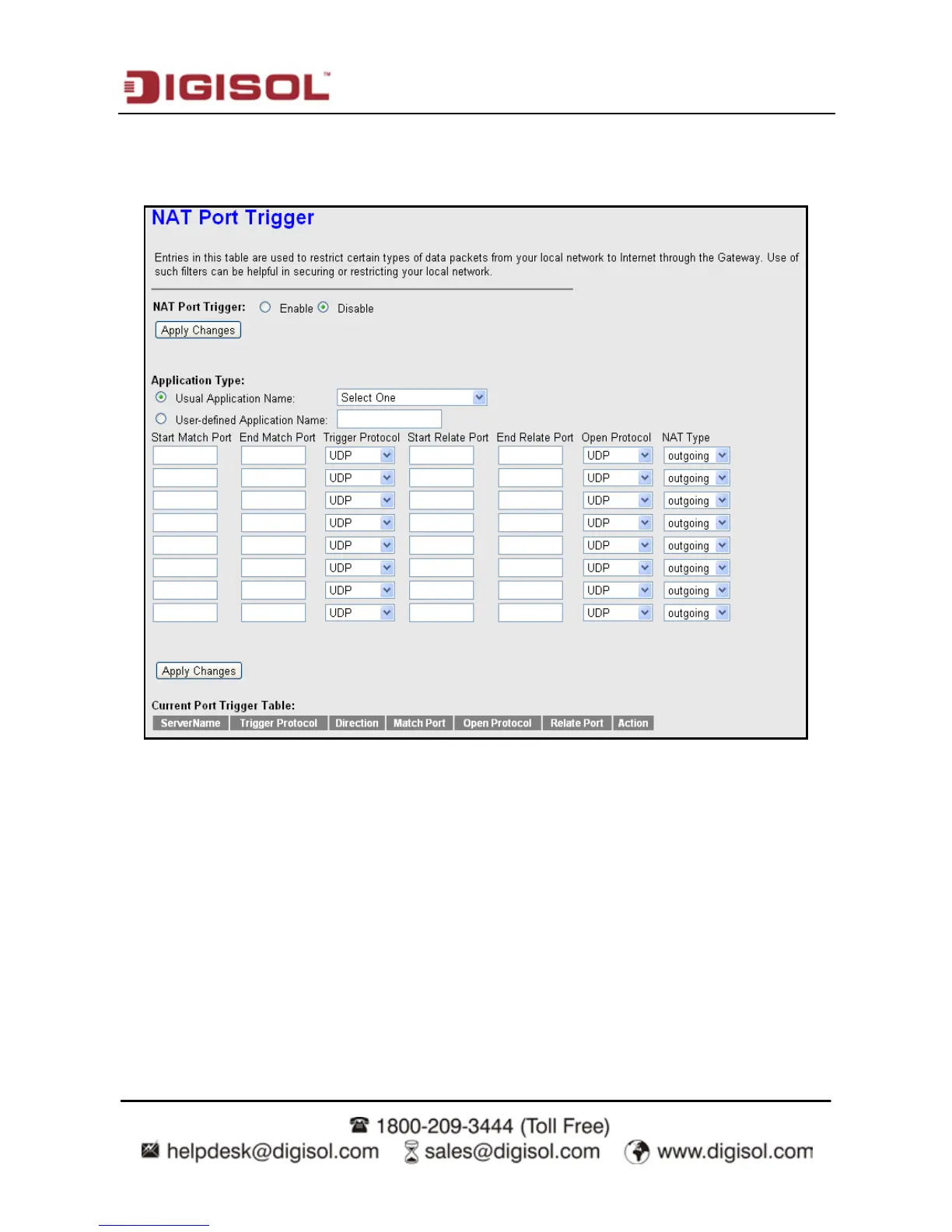

Click Port Trigger in the left pane, and the page shown in the following figure appears.
Click the Usual Application Name drop-down menu to choose the application you want to
setup for port triggering. When you have chosen an application the default Trigger settings
will populate the table below.
If the application you want to setup isn’t listed, click the User-defined Application Name radio
button and type in a name for the trigger in the Custom application field. Configure the Start
Match Port, End Match Port, Trigger Protocol, Start Relate Port, End Relate Port, Open
Protocol and Nat type settings for the port trigger you want to configure.
When you have finished click the Apply changes button.
