DG-PS1010U User Manual
52

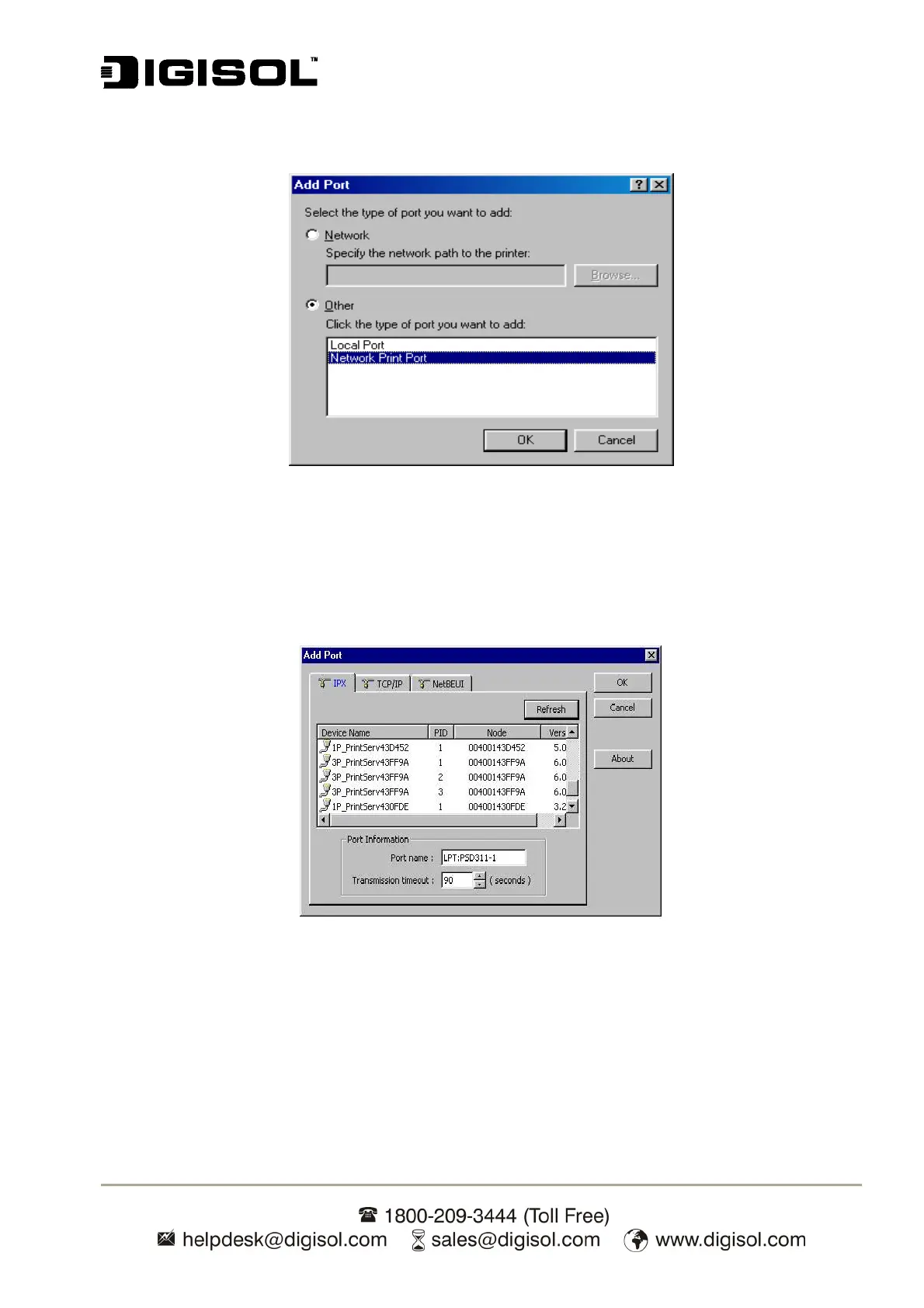

14. In the Add Port dialog box, select Other, as shown in the following picture.
Fig 38
15. Select the Network Print Port and click OK.
16. The Add Port box will then appear, along with the print server’s Node ID (The last 6 digits of
the Node ID, located on the back of the print server unit). Select one printer server port
from the list, which is now connected to (one of) your printer(s), as shown in the following
picture.
Fig 39
By default, the computer will first search for the print server(s) on the network by using the
IPX/SPX protocol.
If the IPX/SPX protocol is installed, the print server will be displayed along with its Node ID,
as shown in Node column. (The last 6 digits of the Node ID, located on the back of the print
server unit). Select one of the print server’s ports from the list.
