Digital Projection E-Vision Laser 4K Series
Reference Guide
FRAME RATES AND PULLDOWNS EXPLAINED
Rev A June 2017
Pulldowns - conversion into destination formats
Pulldowns are a method of converting a 24p source into a different destination format by adding extra frames to the source.
2:3 (normal) pulldown
This method is used to convert a 24p source (lm) into a 60i destination (NTSC video) by adding two extra elds for every four frames,
effectively increasing the frame rate to 30 fps. The frame is split into elds and then two elds are repeated for every four original frames as
shown in the illustration below.
Notes

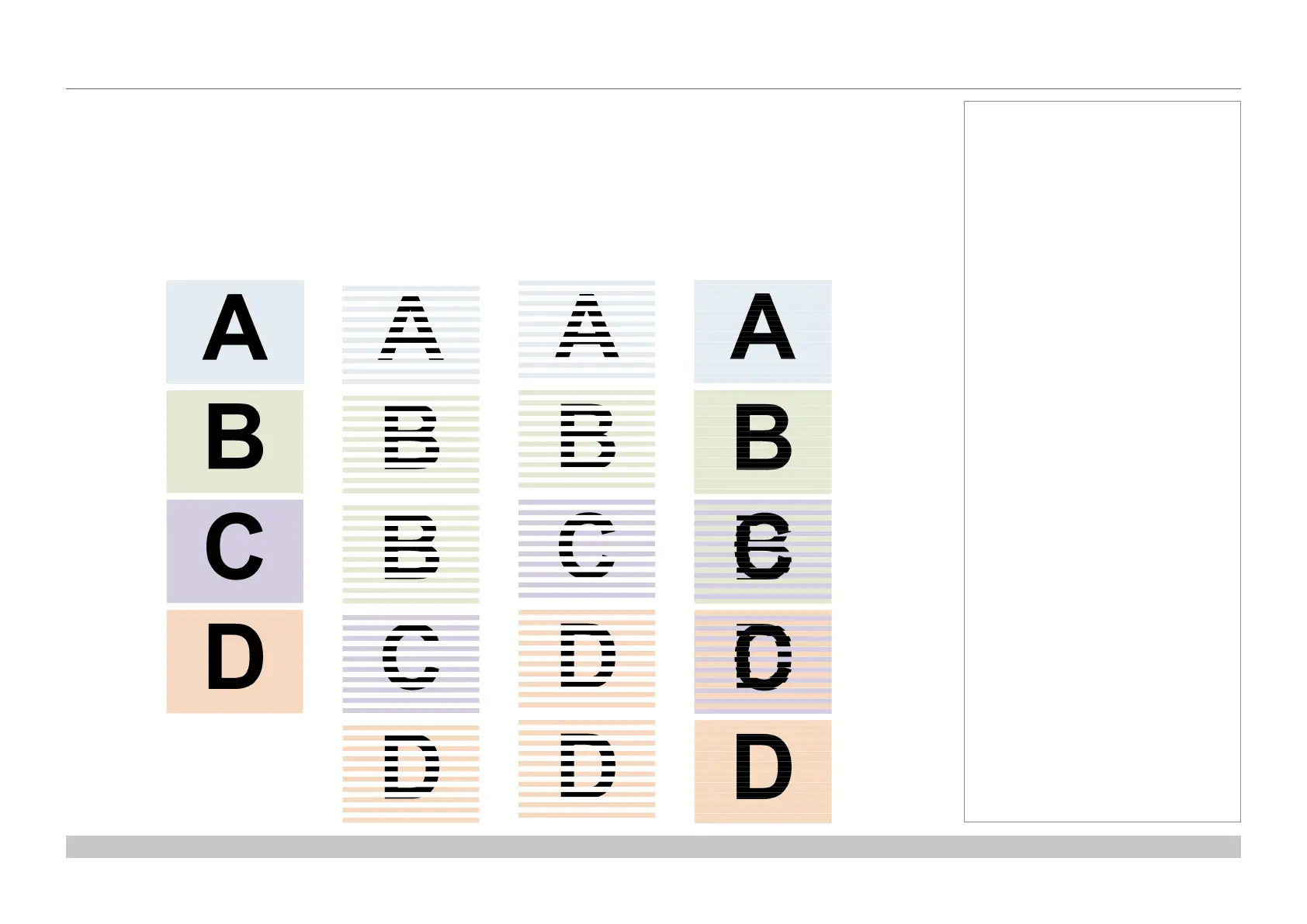

Original lm,
24 fps
Field 1 (odd) Field 2 (even) Resulting video,
30 fps
