Digital Projection E-Vision Laser 4K Series
Connection Guide
SIGNAL INPUTS
Rev A June 2017

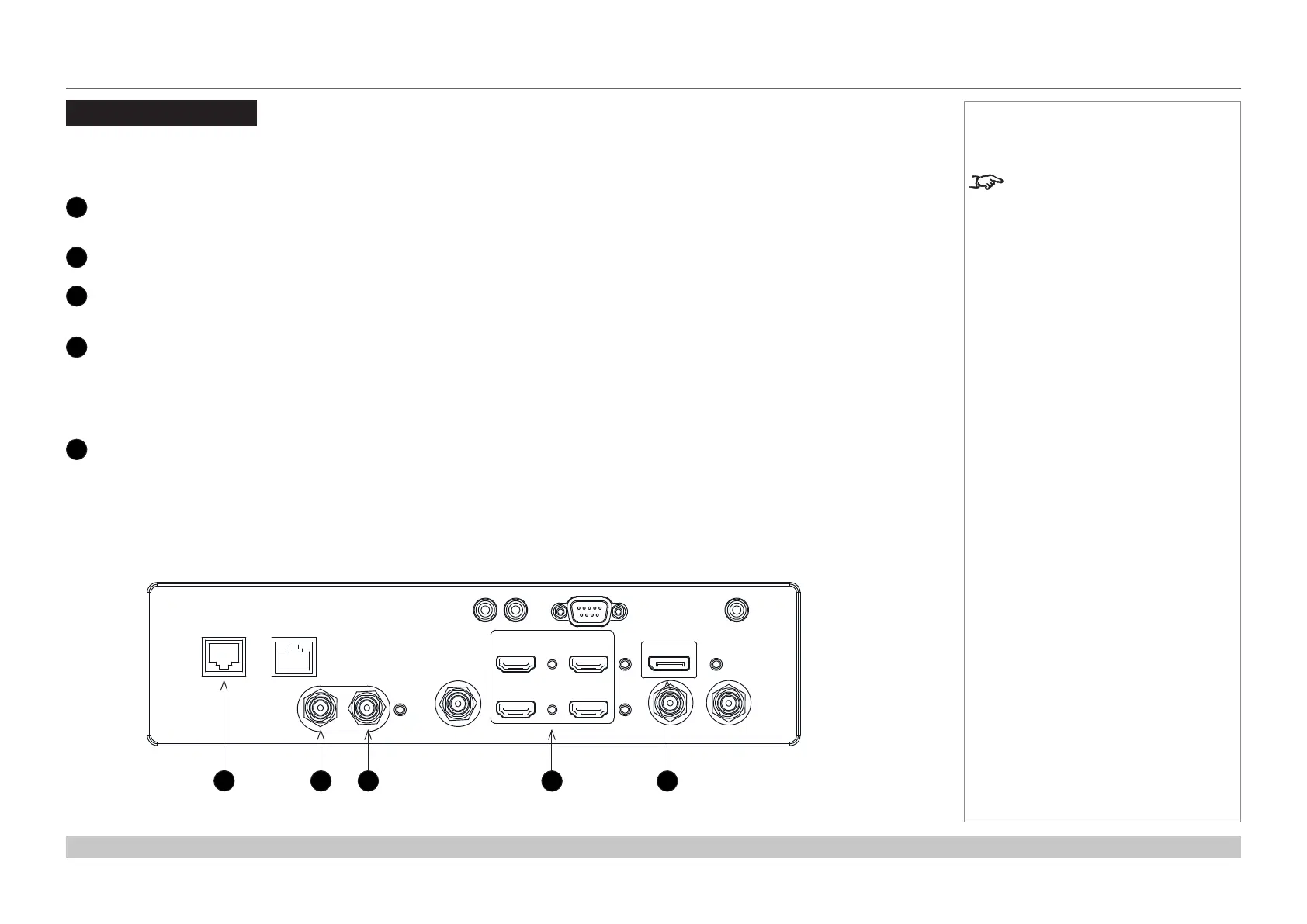

Signal Inputs
Digital inputs and outputs
1
HDBaseT
Receives digital signal from HDBaseT-compliant devices.
2
3G-SDI in
3
3G-SDI out
Connect a 3G-SDI cable to distribute the 3G-SDI signal to another projector.
4
HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4
HDMI 1 and 2 are HDMI 2.0 inputs supporting HDCP 2.2.
HDMI 3 and 4 are HDMI 1.4b inputs supporting Frame Sequential and Dual Pipe 3D with HDCP 1.4.
Connect an HDMI cable to the connector.
5
DisplayPort
DisplayPort 1.2 input. Connect a DisplayPort cable to the connector.
Supports sources up to 1920x1200 resolution, 24-120 Hz. Supports HDCP 2.2.
Notes
For simultaneous HDBaseT and
LAN connectivity, a third-party
distribution product can be utilised
to combine HDBaseT video stream
with LAN connection for delivery to
the projector.
HDBaseT/LAN Ethernet
SDI IN SDI OUT
3D SYNC IR
TRIGGER
(1) (2) RS232
WIRED REMOTE
HDMI
1
HDMI
2
HDMI
3
HDMI
4
SYNC IN SYNC OUT
DisplayPort
1
2 3
4 5
