page 33
Digital Projection E-Vision Laser 4K Series
Operating Guide
USING THE MENUS
Rev A June 2017

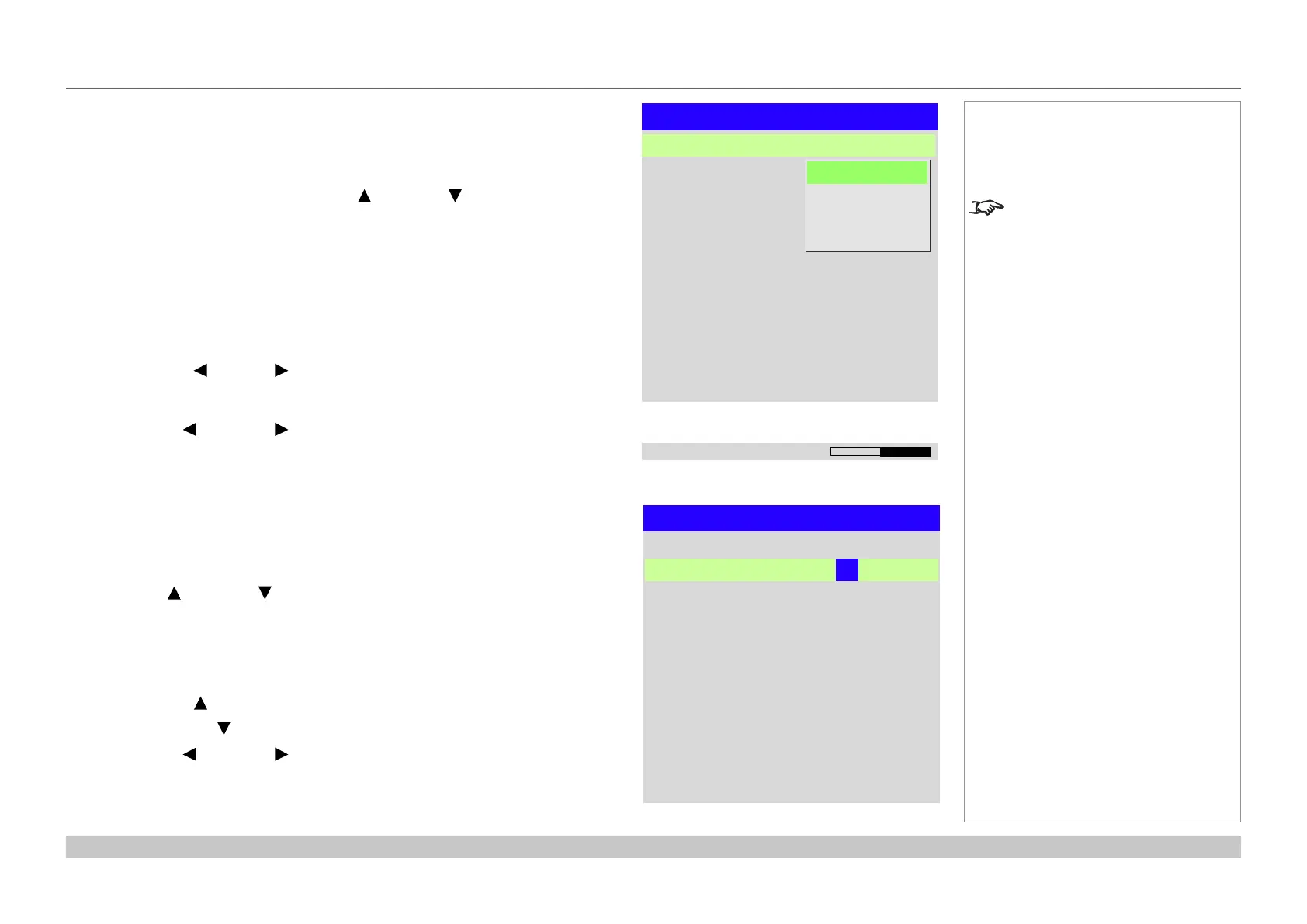

Editing projector settings
If the highlighted menu item contains a list of values to choose from, you can change the
value by doing the following:
1. Highlight the menu item and press ENTER/OK.
2. In the list of values that opens, use the UP and DOWN arrow buttons to
highlight a value, then press ENTER/OK again to select the highlighted value.
Using a slider to set a value
Some parameters open a slider. To set such a parameter:
1. Press the LEFT or RIGHT arrow button, or ENTER/OK.
The arrow buttons will open the slider and adjust the value at the same time.
ENTER/OK will open the slider without altering the initial value.
2. Use the LEFT and RIGHT arrow buttons to move the slider.
3. When ready, press EXIT to exit the slider and return to the menu, or press MENU to
exit the slider without showing the menu again.
Editing numeric values
Some parameters take numeric values without using sliders - for example, color matching
values or IP addresses.
1. Use the UP and DOWN arrow buttons to highlight the row containing the
numeric eld you wish to edit.
2. Press ENTER/OK to enter edit mode. A numeric eld in edit mode is white text on
blue background.
3. In edit mode:
• Use the UP arrow button to increase the numeric value.
• Use the DOWN arrow button to decrease the numeric value.
4. Use the LEFT and RIGHT arrow buttons to edit the next or previous numeric
elds within the same row.
5. Once ready, press ENTER/OK to exit edit mode.
Notes
Some menu items may be
unavailable due to settings in other
menus. Unavailable menu items
appear gray.
Data
Highlighted Row
Row
Row
x: 0.315 y: 0.662
x: 0.146 y: 0.043
x: 0.658 y: 0.339
Row x: 0.276 y: 0.283
Numeric values
List of values
Menu Name
Menu Item
Menu Item
Highlighted Item Current Value
Highlighted Value
Value
Value
Value
Slider
Parameter
Value
