CONTROL CONNECTIONS
Rev A June 2017

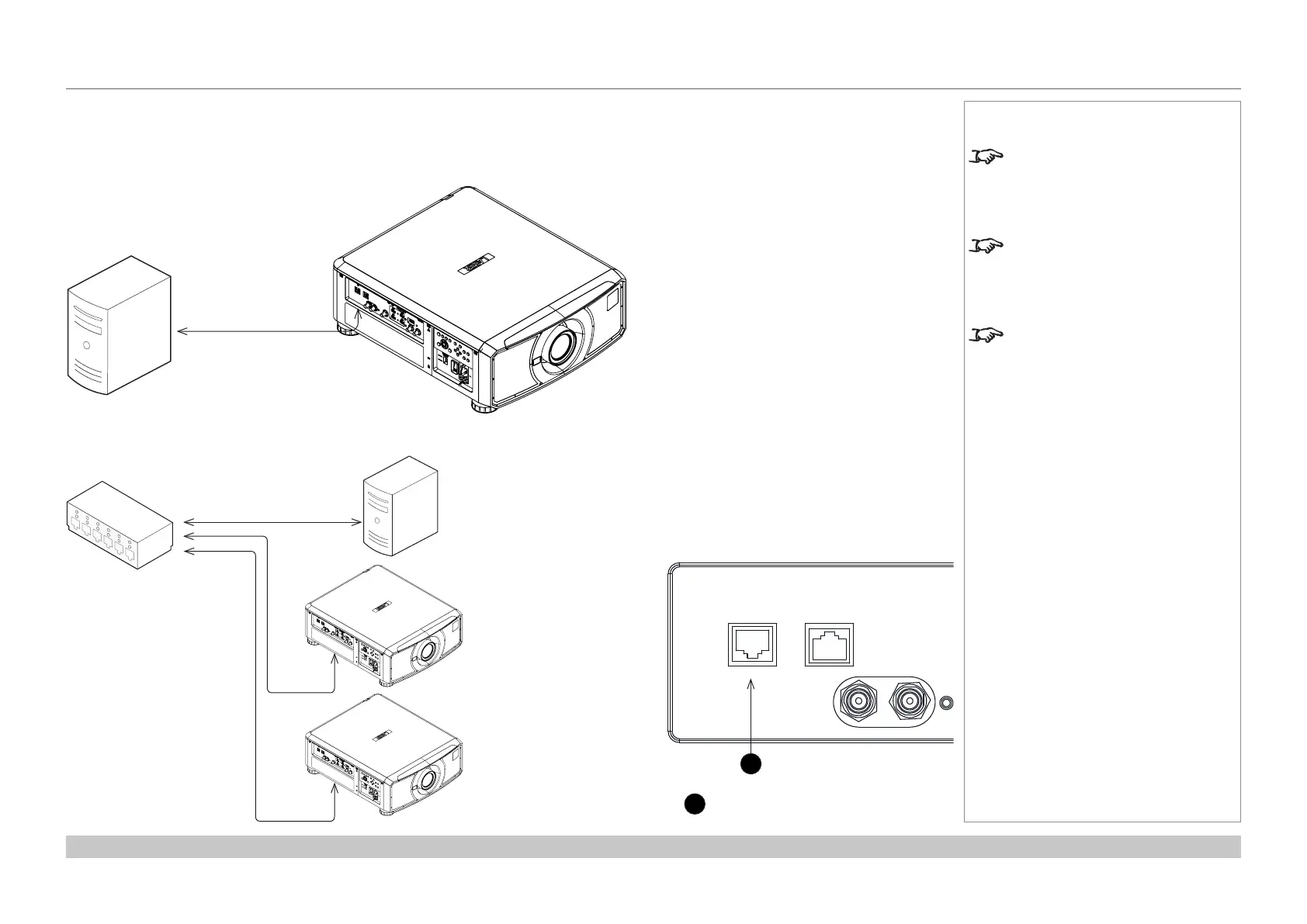

LAN connection examples
The projector’s features can be controlled via a LAN connection, using Digital Projection’s Projector Controller application or a terminal-
emulation program
Notes
With a LAN connection the projector
can serve a web page offering basic
projector controls.
Projector Controller is available for
download, free of charge, from the
Digital Projection website.
For simultaneous HDBaseT and
LAN connectivity, a third-party
distribution product can be utilised
to combine HDBaseT video stream
with LAN connection for delivery to
the projector.
Projector
Computer
Un-crossed
LAN cable
Computer
Projector
Projector
Un-crossed LAN cables
Hub or LAN
1
LAN
1
HDBaseT/LAN Ethernet
SDI IN
SDI OUT
3D SYNC IR
TRIGGER
(1) (2) RS232
WIRED REMOTE
HDMI
1
HDMI
2
HDMI
3
HDMI
4
SYNC IN SYNC OUT
DisplayPort
