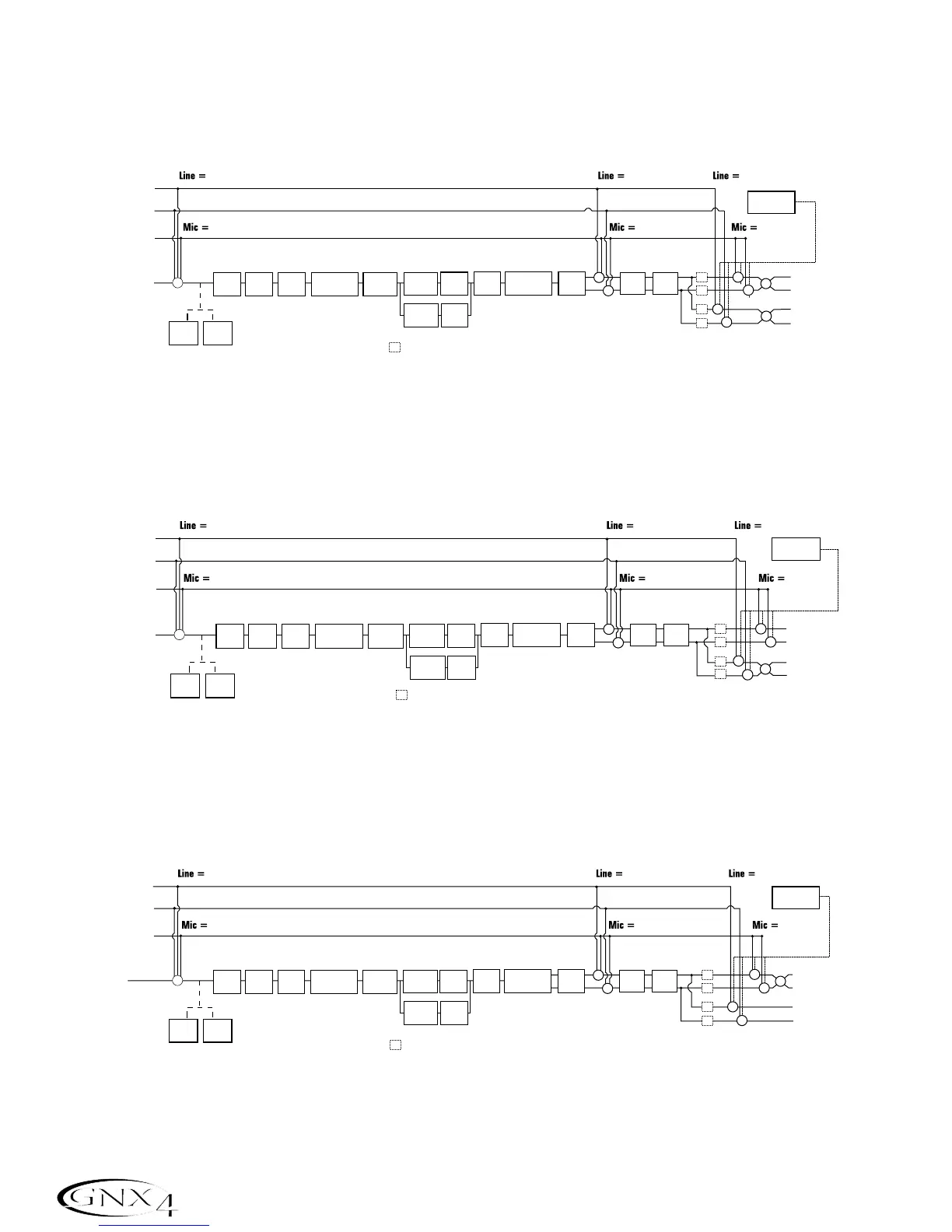

mono all - All input sources (guitar, mic, line,drums,onboard 8-track recorder playback and USB
playback) are routed to both output pairs in mono. Speaker Compensation can be turned
on and off independently for either the 1/4" or XLR outputs using the Speaker
Compensation switch associated with each pair on the rear panel.
mono 1/4 - All input sources (guitar, mic, line,drums,onboard 8-track recorder playback and USB
playback) are routed to the 1/4” outputs in mono. All input sources routed to the XLR
outputs maintain stereo separation. Speaker Compensation can be turned on and off
independently for either the 1/4" or XLR outputs using the Speaker Compensation switch
associated with each pair on the rear panel.
mono xlr - All input sources (guitar, mic, line,drums,onboard 8-track recorder playback and USB
playback) are routed to the XLR outputs in mono. All input sources routed to the 1/4”
outputs maintain stereo separation. Speaker Compensation can be turned on and off
independently for either the 1/4" or XLR outputs using the Speaker Compensation switch
associated with each pair on the rear panel.
Mic Input
Guitar Input
Line Left
Line Right
mic rvb mic dry
line rvb
line dry
SC
mic fx
line fx
= Speaker Compensation Module
Delay Reverb
+
+
XLR Left Output
XLR Right Output
1/4" Left Output
1/4" Right Output
+
+
+
SC
SC
SC
SC
Pickup
Sim
Wah Comp
Stompbox
CH 1
Cabinet
Comp
Detector
Gate
Detector
Whammy/IPS
(except
Ta l k e r )
CH 1 Amp
Modeling/
Tone
CH 1
Cabinet
CH 1 Amp
Modeling/
Tone
CH 2
Cabinet
CH 2 Amp
Modeling/
Tone
Gate
Whammy/IPS
(Talker)
Chorus/
Mod
+
+
+
DRUMS,
RECORDER,
USB PLAYBACK
Mic Input
Guitar Input
Line Left
Line Right
mic rvb mic dry
line rvb
line dry
SC
mic fx
line fx
= Speaker Compensation Module
Delay Reverb
+
+
XLR Left Output
XLR Right Output
1/4" Left Output
1/4" Right Output
+
+
+
SC
SC
SC
SC
Pickup
Sim
Wah Comp
Stompbox
CH 1
Cabinet
Comp
Detector
Gate
Detector
Whammy/IPS
(except
Talker)
CH 1 Amp
Modeling/
Tone
CH 1
Cabinet
CH 1 Amp
Modeling/
Tone
CH 2
Cabinet
CH 2 Amp
Modeling/
Tone
Gate
Whammy/IPS
(Talker)
Chorus/
Mod
+
+
+
DRUMS,
RECORDER,
USB PLAYBACK
Mic Input
Guitar Input
Line Left
Line Right
mic rvb mic dry
line rvb
line dry
SC
= Speaker Compensation Module
mic fx
line fx
Delay Reverb
+
+
XLR Left Output
XLR Right Output
1/4" Left Output
1/4" Right Output
+
+
+
SC
SC
SC
SC
Pickup
Sim
Wah Comp
Stompbox
CH 1
Cabinet
Comp
Detector
Gate
Detector
Whammy/IPS
(except
Talker)
CH 1 Amp
Modeling/
Tone
CH 1
Cabinet
CH 1 Amp
Modeling/
Tone
CH 2
Cabinet
CH 2 Amp
Modeling/
Tone
Gate
Whammy/IPS
(Talker)
Chorus/
Mod
+
+
+
+
DRUMS,
RECORDER,
USB PLAYBACK
10
Audio Routing Setups
