DigiTech JAMMAN User Manual

23

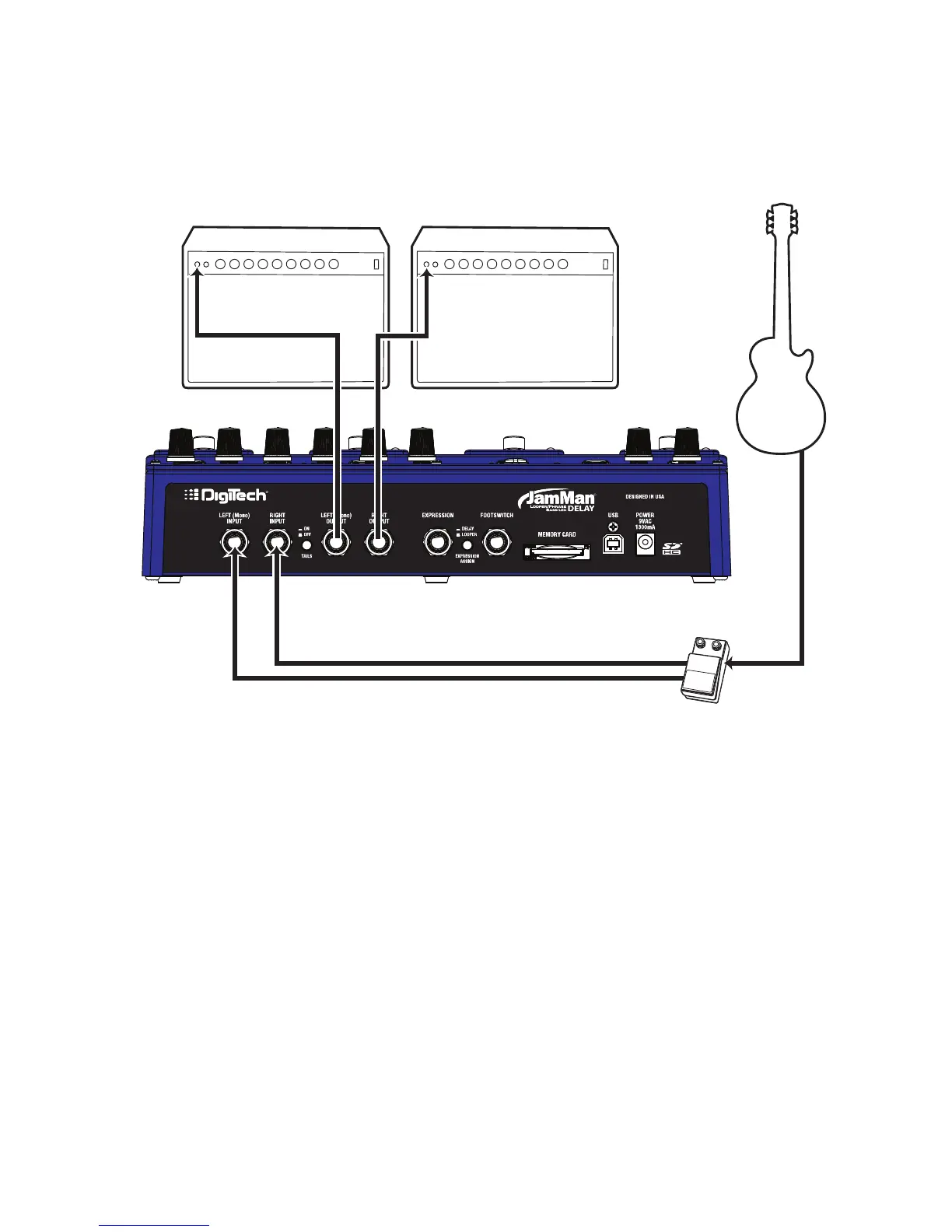

To Left (Mono) Input To Right Input
To rst Amp Input To second Amp Input
To Stereo
Pedal
The Stereo Input / Stereo Amp option lets you utilize true stereo effects
prior to the JamMan
®
Delay in a stereo amp setup. This setup also provides
the best stereo imaging for the JamMan Delay’s Modulation and Pong delay
types. Connect the outputs of your stereo effects pedal to the JamMan
Delay’s LEFT (MONO) and RIGHT Inputs and connect the LEFT (MONO) and RIGHT
Outputs to the inputs of each amp. The DRY OFF button should be OFF for
this setup.
Stereo Input / Stereo Amp
Making Connections
